You Only 👀 Once for Panoptic 🚗 Perception

You Only Look at Once for Panoptic driving Perception

by Dong Wu, Manwen Liao, Weitian Zhang, Xinggang Wang ^✉️, Xiang Bai, Wenqing Cheng, Wenyu Liu School of EIC, HUST

(^✉️) corresponding author.

arXiv technical report (Machine Intelligence Research2022)

---

The Illustration of YOLOP

Contributions

• We put forward an efficient multi-task network that can jointly handle three crucial tasks in autonomous driving: object detection, drivable area segmentation and lane detection to save computational costs, reduce inference time as well as improve the performance of each task. Our work is the first to reach real-time on embedded devices while maintaining state-of-the-art level performance on the BDD100Kdataset.

• We design the ablative experiments to verify the effectiveness of our multi-tasking scheme. It is proved that the three tasks can be learned jointly without tedious alternating optimization.

• We design the ablative experiments to prove that the grid-based prediction mechanism of detection task is more related to that of semantic segmentation task, which is believed to provide reference for other relevant multi-task learning research works.

Results

Traffic Object Detection Result

Model	Recall(%)	mAP50(%)	Speed(fps)
Multinet	81.3	60.2	8.6
DLT-Net	89.4	68.4	9.3
Faster R-CNN	81.2	64.9	8.8
YOLOv5s	86.8	77.2	82
YOLOP(ours)	89.2	76.5	41

Drivable Area Segmentation Result

Model	mIOU(%)	Speed(fps)
Multinet	71.6	8.6
DLT-Net	71.3	9.3
PSPNet	89.6	11.1
YOLOP(ours)	91.5	41

Lane Detection Result:

Model	mIOU(%)	IOU(%)
ENet	34.12	14.64
SCNN	35.79	15.84
ENet-SAD	36.56	16.02
YOLOP(ours)	70.50	26.20

Ablation Studies 1: End-to-end v.s. Step-by-step:

Training_method	Recall(%)	AP(%)	mIoU(%)	Accuracy(%)	IoU(%)
ES-W	87.0	75.3	90.4	66.8	26.2
ED-W	87.3	76.0	91.6	71.2	26.1
ES-D-W	87.0	75.1	91.7	68.6	27.0
ED-S-W	87.5	76.1	91.6	68.0	26.8
End-to-end	89.2	76.5	91.5	70.5	26.2

Ablation Studies 2: Multi-task v.s. Single task:

Training_method	Recall(%)	AP(%)	mIoU(%)	Accuracy(%)	IoU(%)	Speed(ms/frame)
Det(only)	88.2	76.9	-	-	-	15.7
Da-Seg(only)	-	-	92.0	-	-	14.8
Ll-Seg(only)	-	-	-	79.6	27.9	14.8
Multitask	89.2	76.5	91.5	70.5	26.2	24.4

Ablation Studies 3: Grid-based v.s. Region-based:

Training_method	Recall(%)	AP(%)	mIoU(%)	Accuracy(%)	IoU(%)	Speed(ms/frame)
R-CNNP Det(only)	79.0	67.3	-	-	-	-
R-CNNP Seg(only)	-	-	90.2	59.5	24.0	-
R-CNNP Multitask	77.2(-1.8)	62.6(-4.7)	86.8(-3.4)	49.8(-9.7)	21.5(-2.5)	103.3
YOLOP Det(only)	88.2	76.9	-	-	-	-
YOLOP Seg(only)	-	-	91.6	69.9	26.5	-
YOLOP Multitask	89.2(+1.0)	76.5(-0.4)	91.5(-0.1)	70.5(+0.6)	26.2(-0.3)	24.4

Notes:

• The works we has use for reference including Multinet (paper,code,DLT-Net (paper,Faster R-CNN (paper,code,YOLOv5scode) ,PSPNet(paper,code) ,ENet(paper,code) SCNN(paper,code) SAD-ENet(paper,code). Thanks for their wonderful works.
• In table 4, E, D, S and W refer to Encoder, Detect head, two Segment heads and whole network. So the Algorithm (First, we only train Encoder and Detect head. Then we freeze the Encoder and Detect head as well as train two Segmentation heads. Finally, the entire network is trained jointly for all three tasks.) can be marked as ED-S-W, and the same for others.

---

Visualization

Traffic Object Detection Result

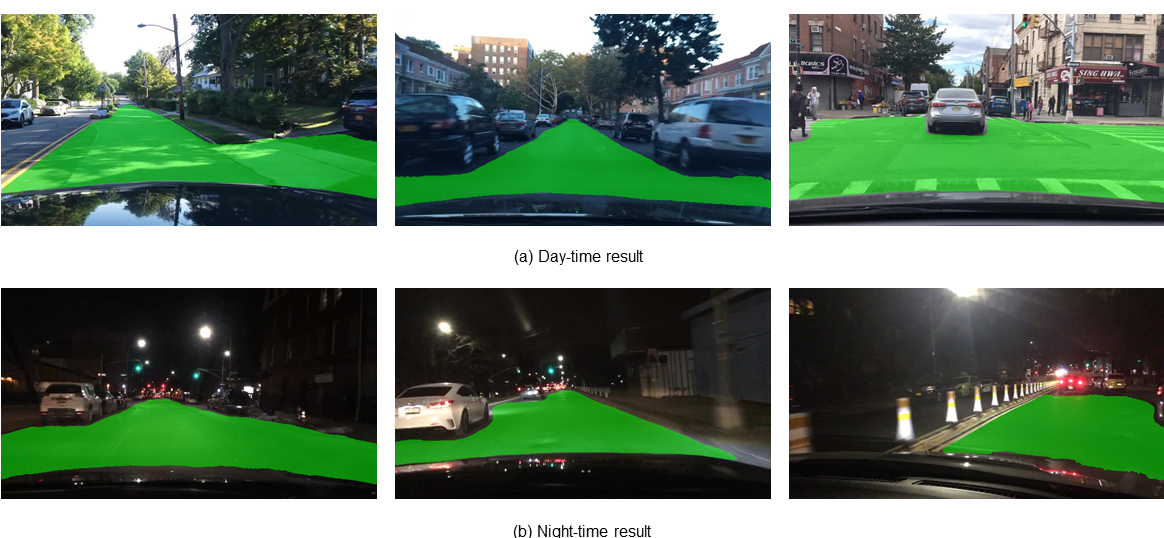

Drivable Area Segmentation Result

Lane Detection Result

Notes:

• The visualization of lane detection result has been post processed by quadratic fitting.

---

Project Structure

inference
 images   # inference images
 output   # inference result
lib
 config/default   # configuration of training and validation
 core
  activations.py   # activation function
  evaluate.py   # calculation of metric
  function.py   # training and validation of model
  general.py   #calculation of metricnmsconversion of data-formatvisualization
  loss.py   # loss function
  postprocess.py   # postprocess(refine da-seg and ll-seg, unrelated to paper)
 dataset
  AutoDriveDataset.py   # Superclass datasetgeneral function
  bdd.py   # Subclass datasetspecific function
  hust.py   # Subclass dataset(Campus scene, unrelated to paper)
  convect.py
  DemoDataset.py   # demo dataset(image, video and stream)
 models
  YOLOP.py    # Setup and Configuration of model
  light.py    # Model lightweightunrelated to paper, zwt)
  commom.py   # calculation module
 utils
  augmentations.py    # data augumentation
  autoanchor.py   # auto anchor(k-means)
  split_dataset.py  # (Campus scene, unrelated to paper)
  utils.py  # loggingdevice_selecttime_measureoptimizer_selectmodel_save&initialize Distributed training
 run
  dataset/training time  # Visualization, logging and model_save
tools
  demo.py    # demo(foldercamera)
  test.py
  train.py
toolkits
  deploy    # Deployment of model
  datapre    # Generation of gt(mask) for drivable area segmentation task
weights    # Pretraining model

---

Requirement

This codebase has been developed with python version 3.7, PyTorch 1.7+ and torchvision 0.8+:

conda install pytorch==1.7.0 torchvision==0.8.0 cudatoolkit=10.2 -c pytorch

See requirements.txt for additional dependencies and version requirements.

pip install -r requirements.txt

Data preparation

Download

• Download the images from images.

• Download the annotations of detection from det_annotations.

• Download the annotations of drivable area segmentation from da_seg_annotations.

• Download the annotations of lane line segmentation from ll_seg_annotations.

We recommend the dataset directory structure to be the following:

# The id represent the correspondence relation
dataset root
 images
  train
  val
 det_annotations
  train
  val
 da_seg_annotations
  train
  val
 ll_seg_annotations
  train
  val

Update the your dataset path in the ./lib/config/default.py.

Training

You can set the training configuration in the ./lib/config/default.py. (Including: the loading of preliminary model, loss, data augmentation, optimizer, warm-up and cosine annealing, auto-anchor, training epochs, batch_size).

If you want try alternating optimization or train model for single task, please modify the corresponding configuration in ./lib/config/default.py to True. (As following, all configurations is False, which means training multiple tasks end to end).

# Alternating optimization
_C.TRAIN.SEG_ONLY = False           # Only train two segmentation branchs
_C.TRAIN.DET_ONLY = False           # Only train detection branch
_C.TRAIN.ENC_SEG_ONLY = False       # Only train encoder and two segmentation branchs
_C.TRAIN.ENC_DET_ONLY = False       # Only train encoder and detection branch

# Single task
_C.TRAIN.DRIVABLE_ONLY = False      # Only train da_segmentation task
_C.TRAIN.LANE_ONLY = False          # Only train ll_segmentation task
_C.TRAIN.DET_ONLY = False          # Only train detection task

Start training:

python tools/train.py

Multi GPU mode:

python -m torch.distributed.launch --nproc_per_node=N tools/train.py  # N: the number of GPUs

Evaluation

You can set the evaluation configuration in the ./lib/config/default.py. (Including batch_size and threshold value for nms).

Start evaluating:

python tools/test.py --weights weights/End-to-end.pth

Demo Test

We provide two testing method.

Folder

You can store the image or video in --source, and then save the reasoning result to --save-dir

python tools/demo.py --source inference/images

Camera

If there are any camera connected to your computer, you can set the source as the camera number(The default is 0).

python tools/demo.py --source 0

Demonstration

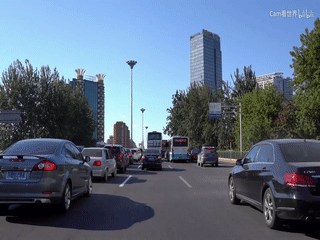

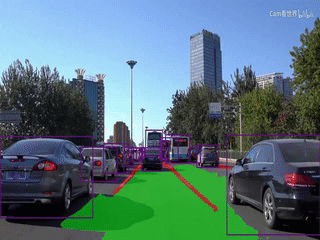

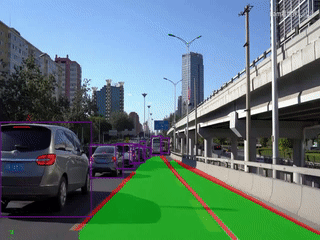

input	output

Deployment

Our model can reason in real-time on Jetson Tx2, with Zed Camera to capture image. We use TensorRT tool for speeding up. We provide code for deployment and reasoning of model in ./toolkits/deploy.

Segmentation Label(Mask) Generation

You can generate the label for drivable area segmentation task by running

python toolkits/datasetpre/gen_bdd_seglabel.py

Model Transfer

Before reasoning with TensorRT C++ API, you need to transfer the .pth file into binary file which can be read by C++.

python toolkits/deploy/gen_wts.py

After running the above command, you obtain a binary file named yolop.wts.

Running Inference

TensorRT needs an engine file for inference. Building an engine is time-consuming. It is convenient to save an engine file so that you can reuse it every time you run the inference. The process is integrated in main.cpp. It can determine whether to build an engine according to the existence of your engine file.

Third Parties Resource

• YOLOP OpenCV-DNN C++ Demo: YOLOP-opencv-dnn from hpc203
• YOLOP ONNXRuntime C++ Demo: lite.ai.toolkit from DefTruth
• YOLOP NCNN C++ Demo: YOLOP-NCNN from EdVince
• YOLOP MNN C++ Demo: YOLOP-MNN from DefTruth
• YOLOP TNN C++ Demo: YOLOP-TNN from DefTruth

Citation

If you find our paper and code useful for your research, please consider giving a star ⭐️ and citation 📝 :

@article{wu2022yolop,
  title={Yolop: You only look once for panoptic driving perception},
  author={Wu, Dong and Liao, Man-Wen and Zhang, Wei-Tian and Wang, Xing-Gang and Bai, Xiang and Cheng, Wen-Qing and Liu, Wen-Yu},
  journal={Machine Intelligence Research},
  pages={1--13},
  year={2022},
  publisher={Springer}
}
