Captum is a model interpretability and understanding library for PyTorch. Captum means comprehension in Latin and contains general purpose implementations of integrated gradients, saliency maps, smoothgrad, vargrad and others for PyTorch models. It has quick integration for models built with domain-specific libraries such as torchvision, torchtext, and others.
Captum is currently in beta and under active development!
With the increase in model complexity and the resulting lack of transparency, model interpretability methods have become increasingly important. Model understanding is both an active area of research as well as an area of focus for practical applications across industries using machine learning. Captum provides state-of-the-art algorithms, including Integrated Gradients, to provide researchers and developers with an easy way to understand which features are contributing to a model’s output.
For model developers, Captum can be used to improve and troubleshoot models by facilitating the identification of different features that contribute to a model’s output in order to design better models and troubleshoot unexpected model outputs.

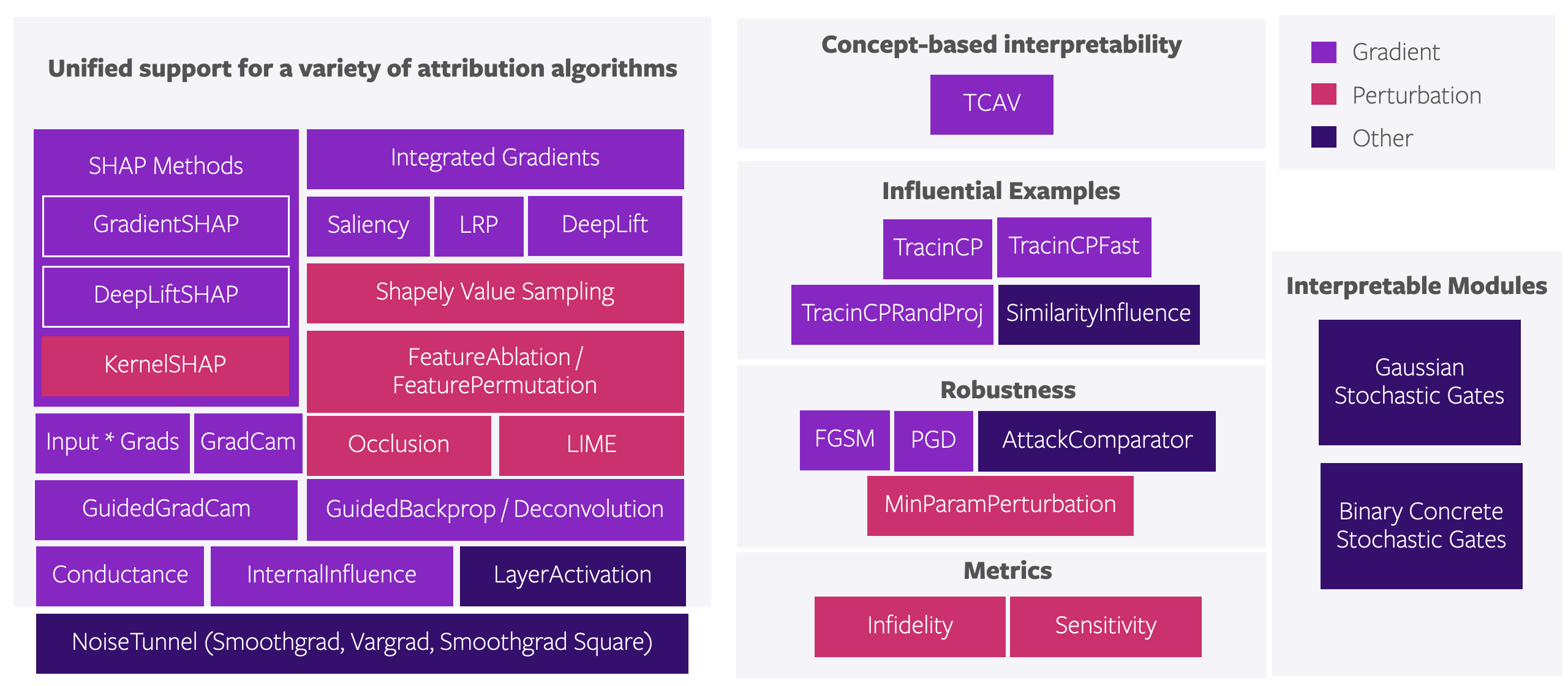

Captum helps ML researchers more easily implement interpretability algorithms that can interact with PyTorch models. Captum also allows researchers to quickly benchmark their work against other existing algorithms available in the library.
The primary audiences for Captum are model developers who are looking to improve their models and understand which features are important and interpretability researchers focused on identifying algorithms that can better interpret many types of models.
Captum can also be used by application engineers who are using trained models in production. Captum provides easier troubleshooting through improved model interpretability, and the potential for delivering better explanations to end users on why they’re seeing a specific piece of content, such as a movie recommendation.
Installation Requirements
The latest release of Captum is easily installed either via
Anaconda (recommended) or via pip
.
with conda
You can install captum from any of the following supported conda channels:
channel: pytorch
conda install captum -c pytorch
channel: conda-forge
conda install captum -c conda-forge
With pip
pip install captum
Manual / Dev install
If you'd like to try our bleeding edge features (and don't mind potentially running into the occasional bug here or there), you can install the latest master directly from GitHub. For a basic install, run:
git clone https://github.com/pytorch/captum.git
cd captum
pip install -e .
To customize the installation, you can also run the following variants of the above:
pip install -e .[insights]
: Also installs all packages necessary for running Captum Insights.pip install -e .[dev]
: Also installs all tools necessary for development
(testing, linting, docs building; see Contributing below).pip install -e .[tutorials]
: Also installs all packages necessary for running the tutorial notebooks.To execute unit tests from a manual install, run:
# running a single unit test
python -m unittest -v tests.attr.test_saliency
# running all unit tests
pytest -ra
Captum helps you interpret and understand predictions of PyTorch models by exploring features that contribute to a prediction the model makes. It also helps understand which neurons and layers are important for model predictions.
Let's apply some of those algorithms to a toy model we have created for demonstration purposes. For simplicity, we will use the following architecture, but users are welcome to use any PyTorch model of their choice.
import numpy as np
import torch
import torch.nn as nn
from captum.attr import (
GradientShap,
DeepLift,
DeepLiftShap,
IntegratedGradients,
LayerConductance,
NeuronConductance,
NoiseTunnel,
)
class ToyModel(nn.Module):
def __init__(self):
super().__init__()
self.lin1 = nn.Linear(3, 3)
self.relu = nn.ReLU()
self.lin2 = nn.Linear(3, 2)
# initialize weights and biases
self.lin1.weight = nn.Parameter(torch.arange(-4.0, 5.0).view(3, 3))
self.lin1.bias = nn.Parameter(torch.zeros(1,3))
self.lin2.weight = nn.Parameter(torch.arange(-3.0, 3.0).view(2, 3))
self.lin2.bias = nn.Parameter(torch.ones(1,2))
def forward(self, input):
return self.lin2(self.relu(self.lin1(input)))
Let's create an instance of our model and set it to eval mode.
model = ToyModel()
model.eval()
Next, we need to define simple input and baseline tensors.
Baselines belong to the input space and often carry no predictive signal.
Zero tensor can serve as a baseline for many tasks.
Some interpretability algorithms such as IntegratedGradients
, Deeplift
and GradientShap
are designed to attribute the change
between the input and baseline to a predictive class or a value that the neural
network outputs.
We will apply model interpretability algorithms on the network mentioned above in order to understand the importance of individual neurons/layers and the parts of the input that play an important role in the final prediction.
To make computations deterministic, let's fix random seeds.
torch.manual_seed(123)
np.random.seed(123)
Let's define our input and baseline tensors. Baselines are used in some
interpretability algorithms such as IntegratedGradients, DeepLift, GradientShap, NeuronConductance, LayerConductance, InternalInfluence
and
NeuronIntegratedGradients
.
input = torch.rand(2, 3)
baseline = torch.zeros(2, 3)
Next we will use IntegratedGradients
algorithms to assign attribution
scores to each input feature with respect to the first target output.
ig = IntegratedGradients(model)
attributions, delta = ig.attribute(input, baseline, target=0, return_convergence_delta=True)
print('IG Attributions:', attributions)
print('Convergence Delta:', delta)
Output:
IG Attributions: tensor([[-0.5922, -1.5497, -1.0067],
[ 0.0000, -0.2219, -5.1991]])
Convergence Delta: tensor([2.3842e-07, -4.7684e-07])
The algorithm outputs an attribution score for each input element and a
convergence delta. The lower the absolute value of the convergence delta the better
is the approximation. If we choose not to return delta,
we can simply not provide the return_convergence_delta
input
argument. The absolute value of the returned deltas can be interpreted as an
approximation error for each input sample.
It can also serve as a proxy of how accurate the integral approximation for given
inputs and baselines is.
If the approximation error is large, we can try a larger number of integral
approximation steps by setting n_steps
to a larger value. Not all algorithms
return approximation error. Those which do, though, compute it based on the
completeness property of the algorithms.
Positive attribution score means that the input in that particular position positively contributed to the final prediction and negative means the opposite. The magnitude of the attribution score signifies the strength of the contribution. Zero attribution score means no contribution from that particular feature.
Similarly, we can apply GradientShap
, DeepLift
and other attribution algorithms to the model.
GradientShap
first chooses a random baseline from baselines' distribution, then
adds gaussian noise with std=0.09 to each input example n_samples
times.
Afterwards, it chooses a random point between each example-baseline pair and
computes the gradients with respect to target class (in this case target=0). Resulting
attribution is the mean of gradients * (inputs - baselines)
gs = GradientShap(model)
# We define a distribution of baselines and draw `n_samples` from that
# distribution in order to estimate the expectations of gradients across all baselines
baseline_dist = torch.randn(10, 3) * 0.001
attributions, delta = gs.attribute(input, stdevs=0.09, n_samples=4, baselines=baseline_dist,
target=0, return_convergence_delta=True)
print('GradientShap Attributions:', attributions)
print('Convergence Delta:', delta)
Output
GradientShap Attributions: tensor([[-0.1542, -1.6229, -1.5835],
[-0.3916, -0.2836, -4.6851]])
Convergence Delta: tensor([ 0.0000, -0.0005, -0.0029, -0.0084, -0.0087, -0.0405, 0.0000, -0.0084])
Deltas are computed for each n_samples * input.shape[0]
example. The user can,
for instance, average them:
deltas_per_example = torch.mean(delta.reshape(input.shape[0], -1), dim=1)
in order to get per example average delta.
Below is an example of how we can apply DeepLift
and DeepLiftShap
on the
ToyModel
described above. The current implementation of DeepLift supports only the
Rescale
rule.
For more details on alternative implementations, please see the DeepLift paper.
dl = DeepLift(model)
attributions, delta = dl.attribute(input, baseline, target=0, return_convergence_delta=True)
print('DeepLift Attributions:', attributions)
print('Convergence Delta:', delta)
Output
DeepLift Attributions: tensor([[-0.5922, -1.5497, -1.0067],
[ 0.0000, -0.2219, -5.1991])
Convergence Delta: tensor([0., 0.])
DeepLift
assigns similar attribution scores as IntegratedGradients
to inputs,
however it has lower execution time. Another important thing to remember about
DeepLift is that it currently doesn't support all non-linear activation types.
For more details on limitations of the current implementation, please see the
DeepLift paper.
Similar to integrated gradients, DeepLift returns a convergence delta score per input example. The approximation error is then the absolute value of the convergence deltas and can serve as a proxy of how accurate the algorithm's approximation is.
Now let's look into DeepLiftShap
. Similar to GradientShap
, DeepLiftShap
uses
baseline distribution. In the example below, we use the same baseline distribution
as for GradientShap
.
dl = DeepLiftShap(model)
attributions, delta = dl.attribute(input, baseline_dist, target=0, return_convergence_delta=True)
print('DeepLiftSHAP Attributions:', attributions)
print('Convergence Delta:', delta)
Output
DeepLiftShap Attributions: tensor([[-5.9169e-01, -1.5491e+00, -1.0076e+00],
[-4.7101e-03, -2.2300e-01, -5.1926e+00]], grad_fn=<MeanBackward1>)
Convergence Delta: tensor([-4.6120e-03, -1.6267e-03, -5.1045e-04, -1.4184e-03, -6.8886e-03,
-2.2224e-02, 0.0000e+00, -2.8790e-02, -4.1285e-03, -2.7295e-02,
-3.2349e-03, -1.6265e-03, -4.7684e-07, -1.4191e-03, -6.8889e-03,
-2.2224e-02, 0.0000e+00, -2.4792e-02, -4.1289e-03, -2.7296e-02])
DeepLiftShap
uses DeepLift
to compute attribution score for each
input-baseline pair and averages it for each input across all baselines.
It computes deltas for each input example-baseline pair, thus resulting to
input.shape[0] * baseline.shape[0]
delta values.
Similar to GradientShap in order to compute example-based deltas we can average them per example:
deltas_per_example = torch.mean(delta.reshape(input.shape[0], -1), dim=1)
In order to smooth and improve the quality of the attributions we can run
IntegratedGradients
and other attribution methods through a NoiseTunnel
.
NoiseTunnel
allows us to use SmoothGrad
, SmoothGrad_Sq
and VarGrad
techniques
to smoothen the attributions by aggregating them for multiple noisy
samples that were generated by adding gaussian noise.
Here is an example of how we can use NoiseTunnel
with IntegratedGradients
.
ig = IntegratedGradients(model)
nt = NoiseTunnel(ig)
attributions, delta = nt.attribute(input, nt_type='smoothgrad', stdevs=0.02, nt_samples=4,
baselines=baseline, target=0, return_convergence_delta=True)
print('IG + SmoothGrad Attributions:', attributions)
print('Convergence Delta:', delta)
Output
IG + SmoothGrad Attributions: tensor([[-0.4574, -1.5493, -1.0893],
[ 0.0000, -0.2647, -5.1619]])
Convergence Delta: tensor([ 0.0000e+00, 2.3842e-07, 0.0000e+00, -2.3842e-07, 0.0000e+00,
-4.7684e-07, 0.0000e+00, -4.7684e-07])
The number of elements in the delta
tensor is equal to: nt_samples * input.shape[0]
In order to get an example-wise delta, we can, for example, average them:
deltas_per_example = torch.mean(delta.reshape(input.shape[0], -1), dim=1)
Let's look into the internals of our network and understand which layers and neurons are important for the predictions.
We will start with the NeuronConductance
. NeuronConductance
helps us to identify
input features that are important for a particular neuron in a given
layer. It decomposes the computation of integrated gradients via the chain rule by
defining the importance of a neuron as path integral of the derivative of the output
with respect to the neuron times the derivatives of the neuron with respect to the
inputs of the model.
In this case, we choose to analyze the first neuron in the linear layer.
nc = NeuronConductance(model, model.lin1)
attributions = nc.attribute(input, neuron_selector=1, target=0)
print('Neuron Attributions:', attributions)
Output
Neuron Attributions: tensor([[ 0.0000, 0.0000, 0.0000],
[ 1.3358, 0.0000, -1.6811]])
Layer conductance shows the importance of neurons for a layer and given input. It is an extension of path integrated gradients for hidden layers and holds the completeness property as well.
It doesn't attribute the contribution scores to the input features but shows the importance of each neuron in the selected layer.
lc = LayerConductance(model, model.lin1)
attributions, delta = lc.attribute(input, baselines=baseline, target=0, return_convergence_delta=True)
print('Layer Attributions:', attributions)
print('Convergence Delta:', delta)
Outputs
Layer Attributions: tensor([[ 0.0000, 0.0000, -3.0856],
[ 0.0000, -0.3488, -4.9638]], grad_fn=<SumBackward1>)
Convergence Delta: tensor([0.0630, 0.1084])
Similar to other attribution algorithms that return convergence delta, LayerConductance
returns the deltas for each example. The approximation error is then the absolute
value of the convergence deltas and can serve as a proxy of how accurate integral
approximation for given inputs and baselines is.
More details on the list of supported algorithms and how to apply Captum on different types of models can be found in our tutorials.
Captum provides a web interface called Insights for easy visualization and access to a number of our interpretability algorithms.
To analyze a sample model on CIFAR10 via Captum Insights run
python -m captum.insights.example
and navigate to the URL specified in the output.
To build Insights you will need Node >= 8.x and Yarn >= 1.5.
To build and launch from a checkout in a conda environment run
conda install -c conda-forge yarn
BUILD_INSIGHTS=1 python setup.py develop
python captum/insights/example.py
Captum Insights also has a Jupyter widget providing the same user interface as the web app. To install and enable the widget, run
jupyter nbextension install --py --symlink --sys-prefix captum.insights.attr_vis.widget
jupyter nbextension enable captum.insights.attr_vis.widget --py --sys-prefix
To build the widget from a checkout in a conda environment run
conda install -c conda-forge yarn
BUILD_INSIGHTS=1 python setup.py develop
If you have questions about using Captum methods, please check this FAQ, which addresses many common issues.
See the CONTRIBUTING file for how to help out.
NeurIPS 2019: The slides of our presentation can be found here
KDD 2020: The slides of our presentation from KDD 2020 tutorial can be found here. You can watch the recorded talk here
GTC 2020: Opening Up the Black Box: Model Understanding with Captum and PyTorch. You can watch the recorded talk here
XAI Summit 2020: Using Captum and Fiddler to Improve Model Understanding with Explainable AI. You can watch the recorded talk here
PyTorch Developer Day 2020 Model Interpretability. You can watch the recorded talk here
NAACL 2021 Tutorial on Fine-grained Interpretation and Causation Analysis in Deep NLP Models. You can watch the recorded talk here
ICLR 2021 workshop on Responsible AI:
IntegratedGradients
, LayerIntegratedGradients
: Axiomatic Attribution for Deep Networks, Mukund Sundararajan et al. 2017 and Did the Model Understand the Question?, Pramod K. Mudrakarta, et al. 2018
InputXGradient
: Not Just a Black Box: Learning Important Features Through Propagating Activation Differences, Avanti Shrikumar et al. 2016
SmoothGrad
: SmoothGrad: removing noise by adding noise, Daniel Smilkov et al. 2017
NoiseTunnel
: Sanity Checks for Saliency Maps, Julius Adebayo et al. 2018
NeuronConductance
: How Important is a neuron?, Kedar Dhamdhere et al. 2018
LayerConductance
: Computationally Efficient Measures of Internal Neuron Importance, Avanti Shrikumar et al. 2018
DeepLift
, NeuronDeepLift
, LayerDeepLift
: Learning Important Features Through Propagating Activation Differences, Avanti Shrikumar et al. 2017 and Towards better understanding of gradient-based attribution methods for deep neural networks, Marco Ancona et al. 2018
NeuronIntegratedGradients
: Computationally Efficient Measures of Internal Neuron Importance, Avanti Shrikumar et al. 2018
GradientShap
, NeuronGradientShap
, LayerGradientShap
, DeepLiftShap
, NeuronDeepLiftShap
, LayerDeepLiftShap
: A Unified Approach to Interpreting Model Predictions, Scott M. Lundberg et al. 2017
InternalInfluence
: Influence-Directed Explanations for Deep Convolutional Networks, Klas Leino et al. 2018
Saliency
, NeuronGradient
: Deep Inside Convolutional Networks: Visualising
Image Classification Models and Saliency Maps, K. Simonyan, et. al. 2014
GradCAM
, Guided GradCAM
: Grad-CAM: Visual Explanations from Deep Networks via Gradient-based Localization, Ramprasaath R. Selvaraju et al. 2017
Deconvolution
, Neuron Deconvolution
: Visualizing and Understanding Convolutional Networks, Matthew D Zeiler et al. 2014
Guided Backpropagation
, Neuron Guided Backpropagation
: Striving for Simplicity: The All Convolutional Net, Jost Tobias Springenberg et al. 2015
Feature Permutation
: Permutation Feature Importance
Occlusion
: Visualizing and Understanding Convolutional Networks
Shapley Value
: A value for n-person games. Contributions to the Theory of Games 2.28 (1953): 307-317
Shapley Value Sampling
: Polynomial calculation of the Shapley value based on sampling
Infidelity and Sensitivity
: On the (In)fidelity and Sensitivity for Explanations
More details about the above mentioned attribution algorithms and their pros and cons can be found on our web-site.
Captum is BSD licensed, as found in the LICENSE file.
