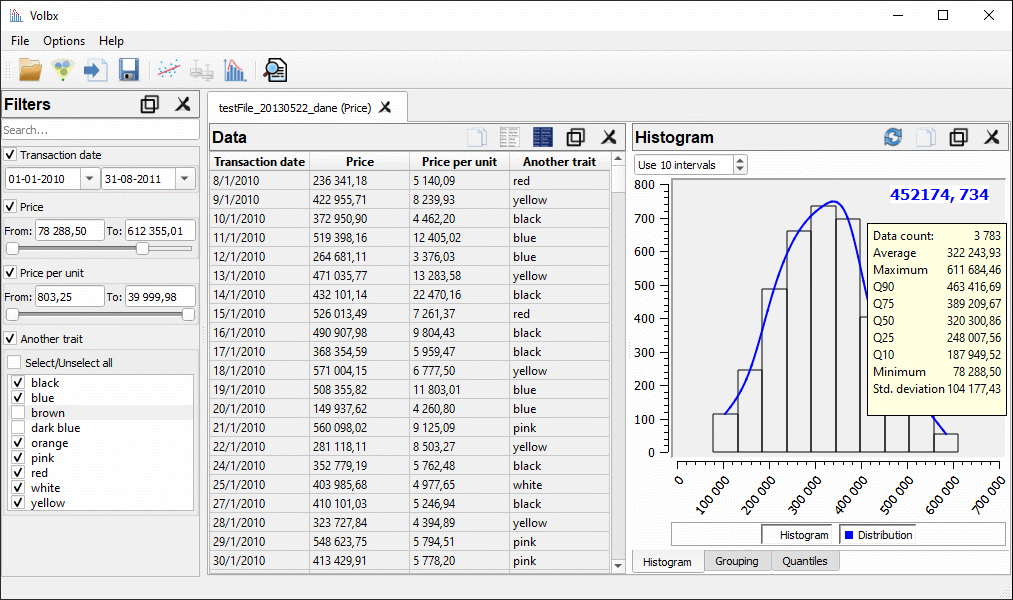

Example view

Description

Volbx is a graphical tool used for data manipulation written in C++/Qt. User can:

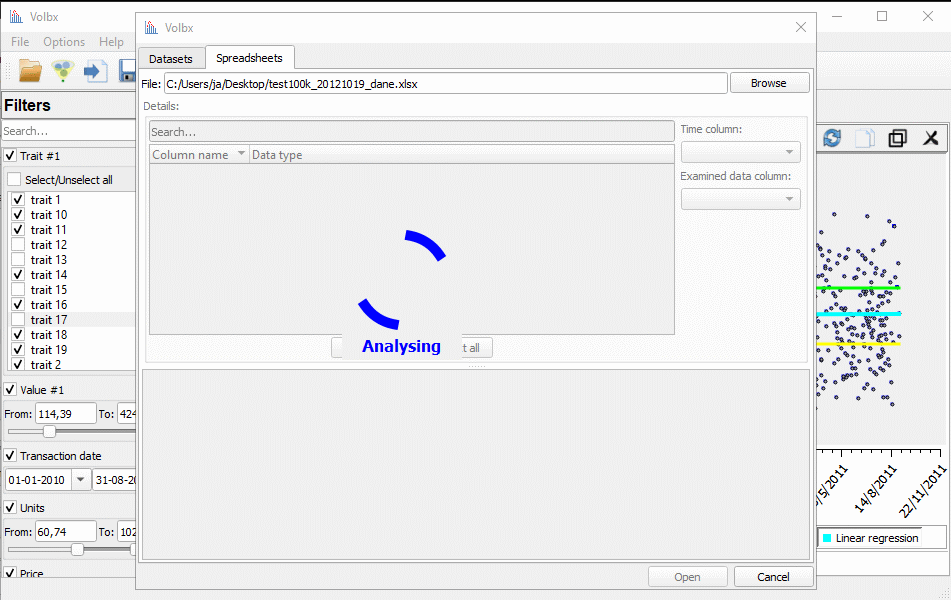

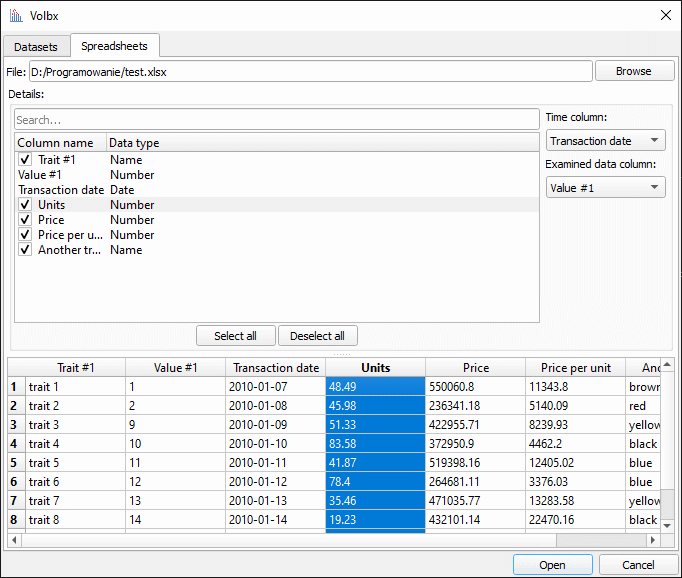

  • load data - opens xlsx and ods spreadsheet files,
  • filter data - filters panel can be used to define data range on each column,
  • select data - user can select rows on main data table,

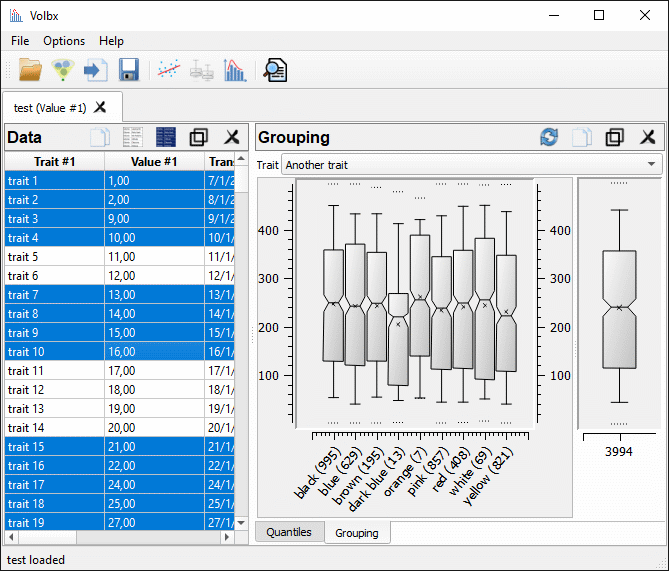

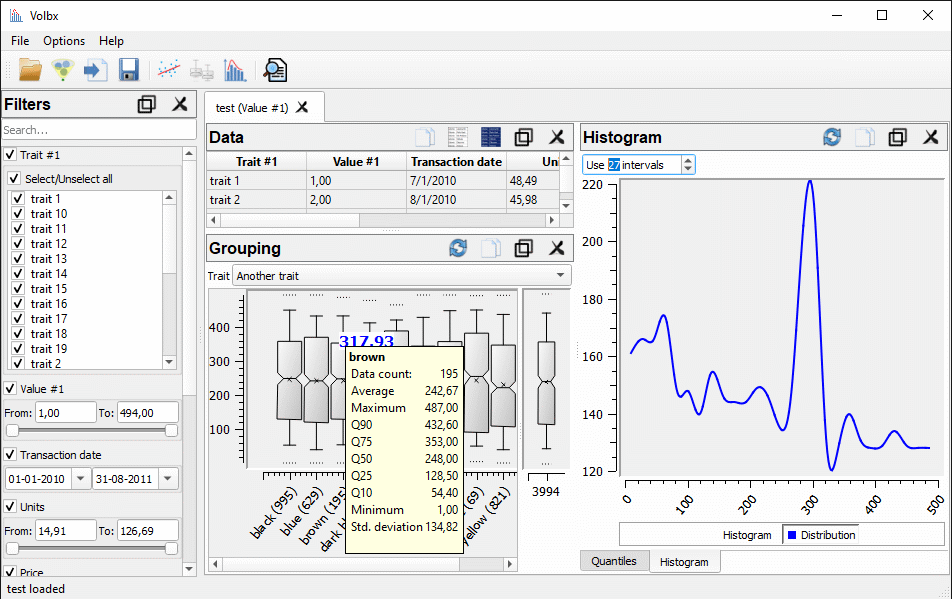

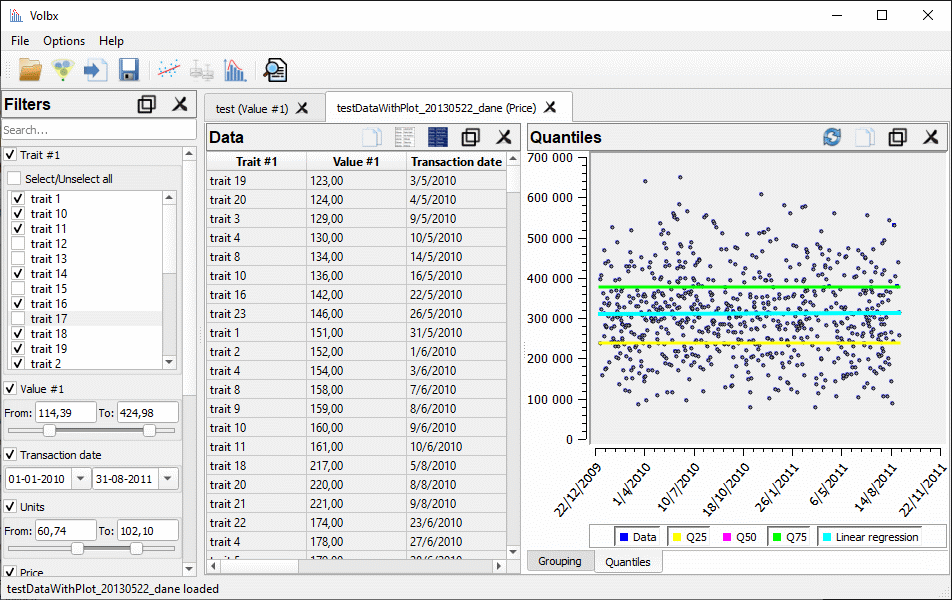

  • visualize data - multiple types of built in diagrams (histogram, grouping, linear regression, quantiles) which adjusts dynamically according to user actions,
  • order data - each column can be ordered ascending or descending,

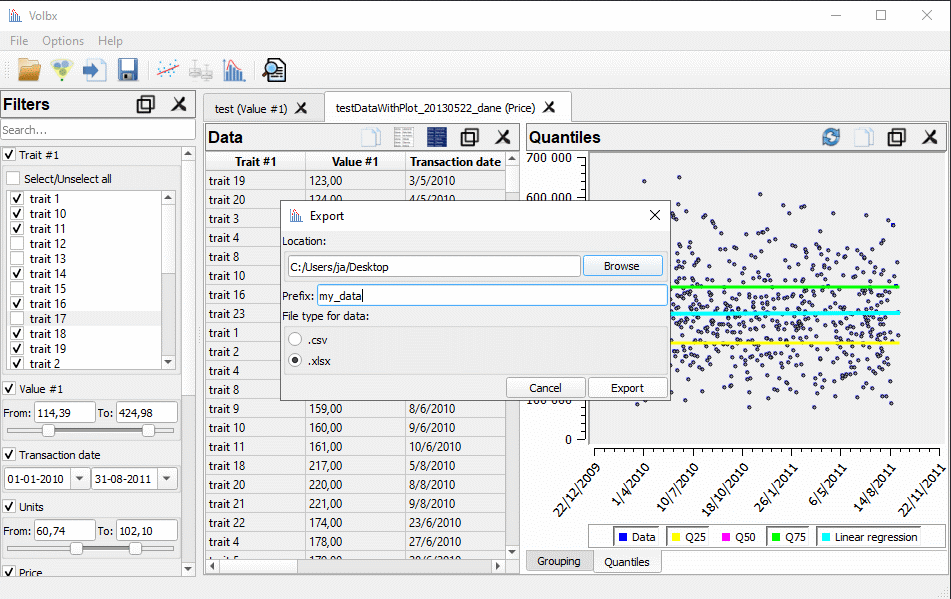

  • export data - selected set of data, together with linked plots, can be exported to xlsx spreadsheet file or CSV.

History

Tool was originally created for real estate appraisal as it gives possibility, for people working in that area, to estimate past, current and future value of analyzed properties. When project/start-up was dropped, I've decided to release less specialized application as open source project. Most advanced and dedicated for real estates functionalities were cut out, basic and intermediate ones stayed.

Used tools and libs

Tool Windows Lubuntu
OS version 10 v1909 20.04
GCC 7.3.0 9.3.0
Cmake 3.14 3.17
Git 2.20 2.25
Svn 1.11.1 1.13.0
Qt 5.12.6 5.12.7
QtCreator 4.12.0 4.13.0
Qwt 6.1.4 6.1.4
QuaZip 0.9 0.9
Zlib 1.2.11 1.2.11
Eible master master
QwtBle master master
Wble master master

Compilation and installation

Use directly Cmake or QtCreator. Cmake should:

  • configure everything automatically,
  • download dependencies using Git (QuaZip, Zlib, Eible, Wble, Qwtble) and SVN (Qwt),
  • build dependencies,
  • compile Volbx and create binaries.

This is of course happy path...

TIPS: set CMAKE_PREFIX_PATH env variable (should point to Qt) and add qmake location to PATH variable (QWT building expects it).

Licensing

Volbx is published using LGPLv3 license.

Project uses following software and licenses:

  • Qt, Qwt, QuaZip, Eible, Wble and Qwtble libraries - LGPL licences (more on qt-project.org, quazip.sourceforge.net, qwt.sourceforge.net and github.com/przemek83),
  • Zlib - Zlib license (can be found on zlib.net).

Updater

  1. Build target VersionCheck.
  2. Run VersionCheck.

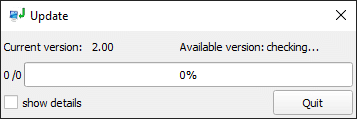

  3. Following window should be shown:

Alt text

Setup update server

  1. Get a domain and hosting :)
  2. Create simple .php file which contains something similar to this:
<?
echo("Volbx-Update-Info\n");

echo("1.10");

chdir("current/");
foreach (glob("*") as $filename) {
    echo "\n$filename;" . filesize($filename);
}
?>
  1. Copy .php file to hosting.
  2. Create folder current in directory where .php file is located.
  3. Add new/other version of Volbx and/or updater in current directory.
  4. Change code of Networking namespace in Volbx to point to proper address. Look for QNetworkRequest Networking::getCurrentVersionRequest() and QNetworkRequest Networking::getDownloadFileRequest(const QString& file)
  5. Compile VersionChecker and run it.
  6. Application should connect to given address and download content of current folder.

Remarks:

  • Updater is doing correctness checks using file sizes. Checksums should be used instead.
  • When I've created VersionChecker I've decided to use simplest known by me solution. I do not know if it is safe and 'proper' enough but it worked for me. I'm not web developer ;)
  • Windows needs admin rights (as of ~2012) to execute files having in name strings like "update", "install" or "setup". I've picked name VersionChecker to workaround that problem.
  • On Windows OS updater cannot overwrite file which are being used (as of ~2012). There is a special mechanism in place for replacing used/locked files:
    • close Volbx,
    • run updater,
    • download files,
    • change not used binaries/libs,
    • on next run of Volbx replace automatically used/blocked ones.

Testing

  1. Compile project.
  2. Run target named tests.
  3. Check output. All tests should have status PASSED.

Tests are done using Qt test framework.

Potential further improvements

  • Upgrade code to use C++20.
  • Measure and increase test coverage.
  • Setup static analysis (CppCheck, Clang Tidy, Clazy).

Screenshots

Alt text

Alt text

Alt text

Alt text

Alt text

Alt text
