Video Recorder for ESP32-CAM with http server for config and ftp server to download video
ESP32-CAM Video Recorder
This program records an MJPEG AVI video on the SD Card of an ESP32-CAM.
by James Zahary July 20, 2019 [email protected]
jameszah/ESP32-CAM-Video-Recorder is licensed under the GNU General Public License v3.0
vA1 for arduino-esp32 2.0.2
v99 for arduino-esp32 1.0.6
v98 for arduino-esp32 1.0.4
Version A1 - Jan 1, 2022
The esp32-arduino 2.0.2 contains some nicer camera code that clears away little glitches that used to pop up.
It is very clean now!
You can hardcode your ssid and password into settings.h, or put in a 1 character long ssid, and it will use WiFiManager to set your ssid and password. If you want Telegram bot to work, you still have to hardcode them into settings.h
More commentary coming ... and refinements ... test it before you use it.
Also the newer quicker version (with fewer features) over at jameszah/ESP32-CAM-Video-Recorder-junior

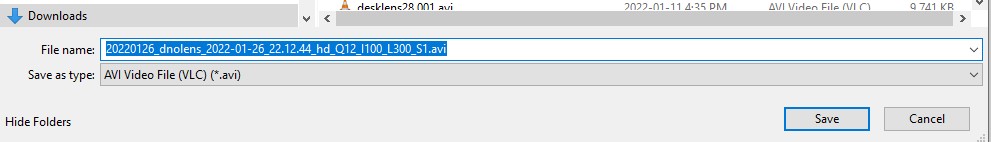

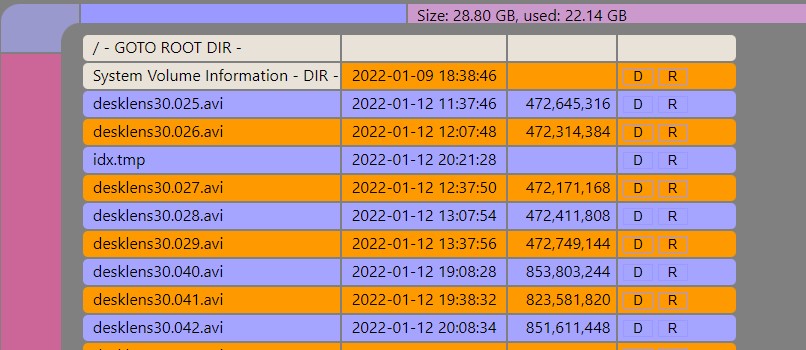

You can download the videos to your computer or phone with just a click on the file from your browser -- no need for an ftp program anymore!

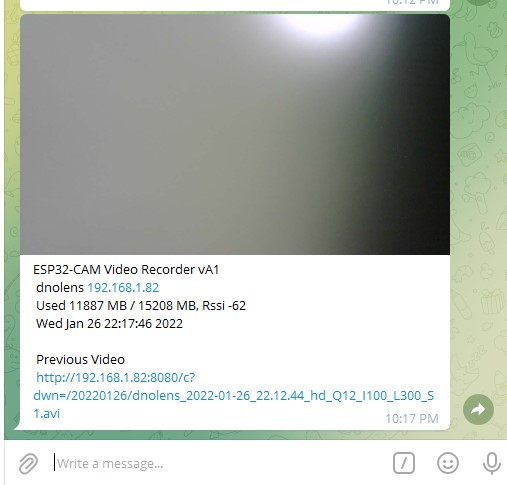

If you have the telegram bot turned on, it will send your telegram app the first frame of a new recording, and give you a link to the previous recording for you to download to your phone or computer with one click.
Jan 17, 2022 - small update to fix the file delete when disk full required by 2.0.2
old stuff below - might contain details not applicable to current version
Note line 1413 -- this current version uses the WiFiManager for all WiFi setup. Change this line if you want to use the previous version of hardcoded ssid and password.
Minimal update for arduino-esp32 1.0.6.

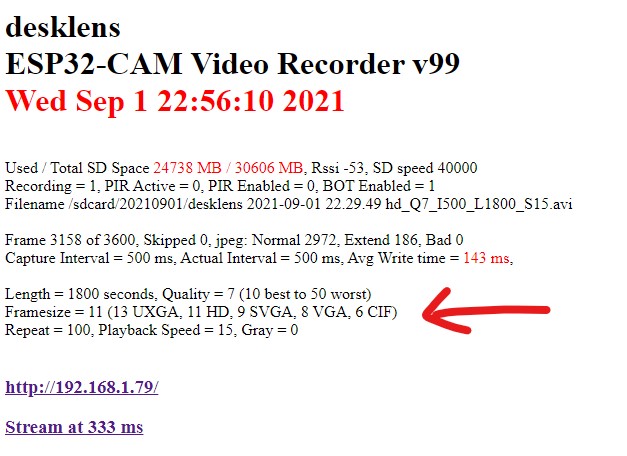

The framesizes numbers changed which I had used on the http url command, so those were updated.
Add the new frame size HD (1280x720).
Some updates for the new SSL libraries to keep the telegram interface working.
You need all the files in the v99 folder. And Arduino esp32 board library set to 1.0.6.
You can still use the previous version with the esp32 board library set to 1.0.4.
More frequent updates with better code at these spin-offs of this original project.
This simple fast recording and streaming, with http just for information - no controls or ftp.
This records and sends a short video to telegram on request or PIR event, using the telegram interface.
It records a video and sends it to your Telegram account - no SD card! Now I just need to do some updates on this one!
It would be best to use arduino-esp32 version 1.04 until I scan through this for update problems.
1.05 was released in late Feb 2021, has has some new framesizes, aspect rations, and some changes in the WiFi, that need some code changes.
Just the same as Verion 98, but you can configure the ssid and password using WiFiManager.
Use the normal WiFiManager procedure to set up ssid with 192.168.4.1 etc tzapu/WiFiManager The only difference is that you have to reboot the esp32 after you have set the ssid/pass for it to work correctly. Read more about it here https://github.com/tzapu/WiFiManager/issues/1184
And you must use the latest WiFiManager code which supports the ESP32 - currently 2.0.3-alpha which can be installed from Arduino IDE - Manage Libraries. The WiFiManager could be enhanced to set parameters that cannot be set from hhtp, such as Telegram name and password, but haven't done that yet.
Added a feature to automatically delete your oldest day of videos when the SD reaches 90% full.
There are also some compile directives in the settings.h file to cut out entire sections of code like the ftp or telegram, if you need resouces to add your own stuff.
Check out a much simpler, somewhat faster version ESP32-CAM-Video_Recorder-junior.
It gets rid of wifi, http, time, ftp, telegram, pir, touch, .... and just records very fast -- pretty much at the full speed of the camera -- with a decent SD card and reasonable quality parameters.
The latest version of junior v07 adds back the streaming video, and series of photos over wifi, and will record at 6 fps UXGA and 24 fps SVGA, but otherwise remains quite uncomplicated.
A couple new things.
I added some code to filter out bad jpegs. This happens when you have high quality jpeg settings, and then take a movie in bright light, and some of the jpegs exceed the memory allocated, and you get a partial jpeg, which will screw up the index, and break an entire avi. So there is now code to find those bad jpegs, and get a new frame that is good. Read more about this here if interested. https://github.com/espressif/esp32-camera/issues/162
This means it is safe to increase the jpeg quality to 7 (maybe 6?) from the standard setting of 10, or 12 in bright sun. Lower number is higher quality. Higher quality will mean more bytes, bigger files, and slower to write. It is debatable if you want very high quality jpegs if they are flashing along at 24 frames per second.

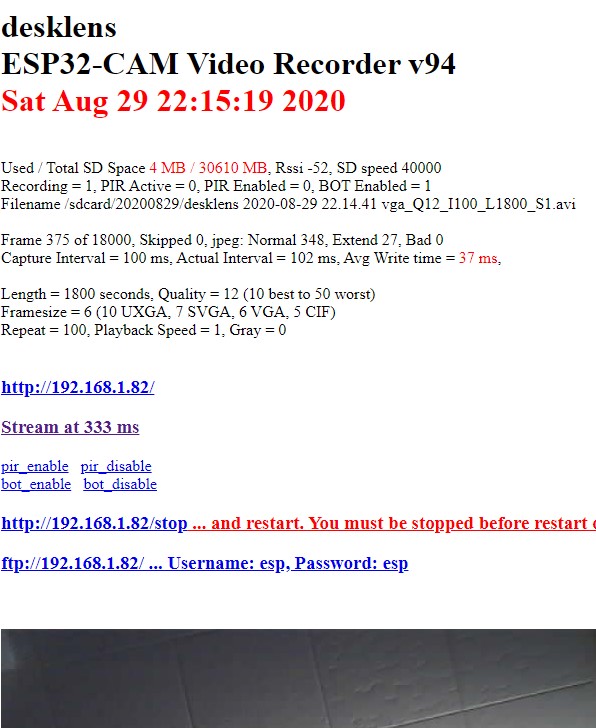

Another new feature is a streaming video. There is the single frame on the main status screen so you code see what your camera sees, but the streaming has been much requested to get a better look through the viewfinder, and maybe save the stream.
You set a parameter in settings.h of milli-seconds between updates, and then click on the /stream link on the main web page and it will stream to a new browser window. Hit "back" to get back to the main page.
To save the video coming to the browser, do the following -- I tried to figure this out before but could not find it on google.
Another method is to use the VLC media player program.
VLC seems to have controls there to convert the file to various formats like h264, wmv, etc. but I could not get that to work.
If anyone has better ways to capture the live stream, or capture and covert it, please let us know in the comments.
I have not really studied how the streaming interacts with the recording. But 3 fps streaming seems to work fine with 8 fps svga recording. More work to be done there. I reduced the http task priorty to below the picture-taking and avi-writing tasks, so the the streaming should slow down before the recording. It seems the esp32 http server can only handle one client at a time, so you cannot stream to one browser and check the status on another browser.
Another small feature is that you can now tell the recorder to /stop, and then /start with no parameters, and it will restart according to the original start parameters. Not only the framesize and interval, but if you set it to record 100 videos, and it has 5 left, after a /stop and /start it will restart at 100 videos.
Also if you have some parameters in EPROM, and your are doing a new compile with changes and you do not want to use those EPROM parameters, there is a setting called MagicNumber in the settings.h. Just change the MagicNumber, and the program will skip the EPROM settings and write your new settings from settings.h
I changed to default startup settings to VGA 10 frames per second, play at realtime, with no PIR or BOT.
added some code to save the configuration in eprom, so your device will always reboot to the state set in your most recent /start command. The previous system just had a hardcoded configuration, and let you /stop and /start in a new configuration, but after a series of squirrel attacks, I moved to the eprom solution. It always starts where it was, although a movie in progress during the squirrel attack will be lost. You can enable or disable the telegram bot or PIR sensor with a web-page click, and that too will be added to the eprom, so it reboots with or without bot updates or PIR control. On reboot, it will check your eprom to see if there are parameters, and if so it will use them, or else use the hardcoded parameters from settings.h, and then write those paramters into eprom for next boot. Change the eprom parameters with the /start command below.
changed the movie start procedure a little. It now takes a snapshot at beginning of movie, saves it as a .jpg, and if Telegram bot is enabled sends that same picture to your telegram so you can monitor the activity on your phone, or use that jpg if you want. It does take several seconds to send the picture to telegram. And only after that does it start recording the movie. I attempted to do the telegram send after the movie started recording, but the telegram uses SSL security which needs 50k or more of heap, which would sometimes leave too little heap to work the SD card. Also the reboot from deepsleep takes a couple seconds, then starting internet takes a couple seconds, then telegram bot takes a couple seconds, and then the movie starts. So if you want fast-start, then don't use deepsleep, turn off internet, and obviously turn off telegram.
changed reprogramming the camera a little. It used to re-set frame-size, quality with every movie, but now it is just when you make changes and at reboot.
I have switched to quality = 12 which is better for sunny days, and does noticably increase frame-rate. I can usually get SVGA working at 10 frames per second, which is decent realtime video.
http://desklens.local/ ... look through viewfinder and see status
http://desklens.local/start ... with existing or default parameters
ftp://desklens.local/ ... use ftp to download or erase old files ... username and password "esp" which is set in the code
The serial debug monitor shows you your ip address, and the web page uses the ip, rather than hoping that you can resolve mDNS everytime.
You just need the files from the /v89 folder. Edit the settings.h file for your wifi and startup configuration.
redo camera scheduler to reduce frame skips with slight delays between frames
move more processing to separate priority tasks, and remove from idle loop()
most tasks suspend waiting for events, rather than looping checking for events, ... except ftp which still loops wating for ftp requests
added a sd card snapshot jpg at beginning of every movie
added a telegram.org message with opening picture and info about diskspace and rssi to follow camera activity on your computer or phone
added deepsleep feature to wake on PIR, and then deepsleep after movie is recorded
added touch sensor on pin12 to enable/disable the pir sensor
added more careful setup of difficult pins 12, 13, and 4 - used for SD and re-used for PIR, Touch, and Blinding Disk-Active Light
added brownout handler to close files on brownout, which didn't work, but at least I can deepsleep to prevent multiple brownout reboots. (Inside a brownout handler, you have only 300ms and you cannot access wifi, sd, or flash, ... so cannot close files, or send message.)
re-used pin 4 Blinding Disk-Active Light to blink gently at beginning of movie, and at a Touch - ironically, also turns on during Brownout ;-)
added several functions to enable / disable pir or bot using internet
http://desklens.local/ ... look through viewfinder and see status
http://desklens.local/start ... with existing or default parameters
moved many settings to a separate file "settings.h" so you edit that, rather than digging through the main file to set your wifi password, startup defaults, and enable/disable internet, pir, telegram, etc
not super-elegant code ... still haven't written the avi writer into a nice library
read comment on rtc_cntl.h below which may or may not be updated in the esp32 board library - links and info below
This includes a v1.2 (slight mods) of witnessmenow/Universal-Arduino-Telegram-Bot for the Telegram stuff, plus the ftp and ArduCam mentioned below (major rewrite on ArduCam)
You just need the files from the /v86 folder. Edit the settings.h file for your wifi and starup configuration.

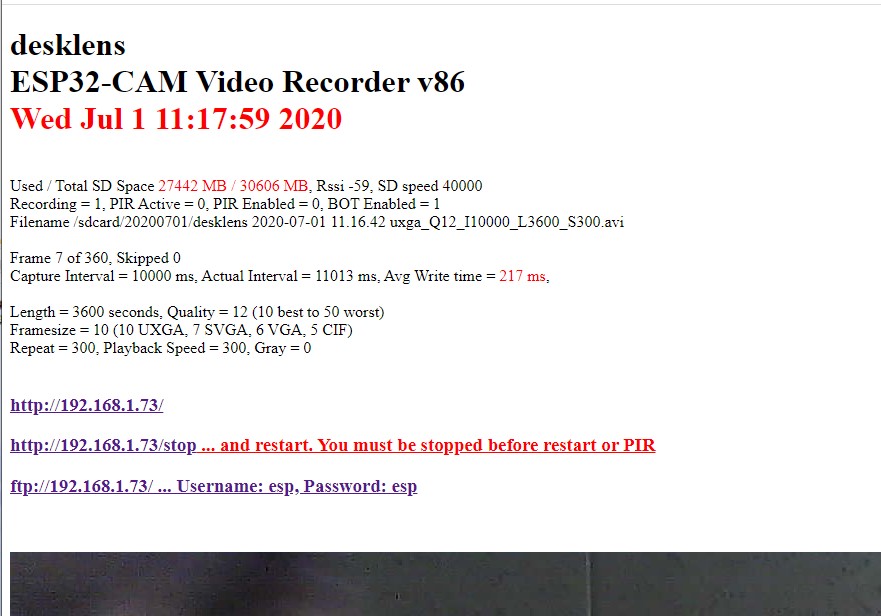

Here is the "/" status page

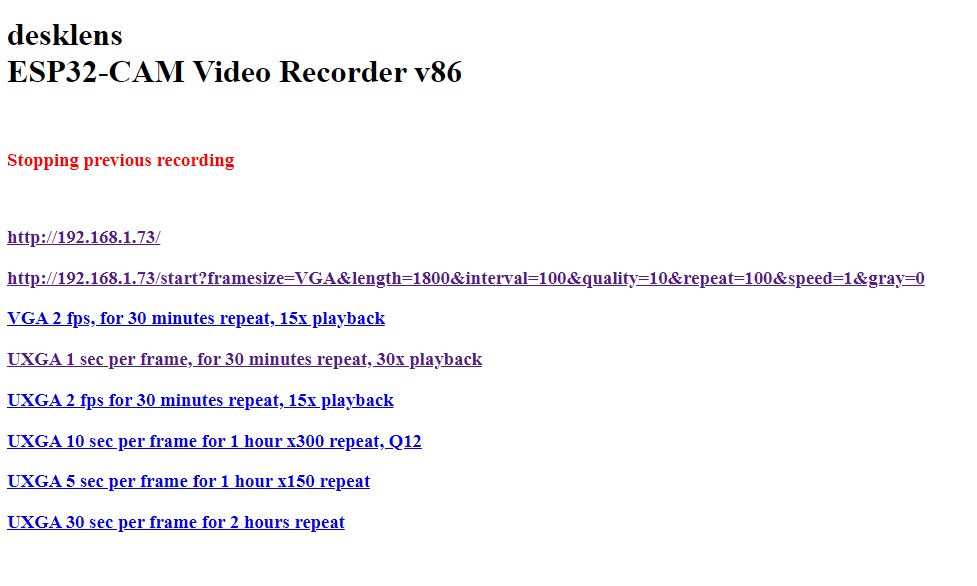

And the /stop page to restart with new parameters

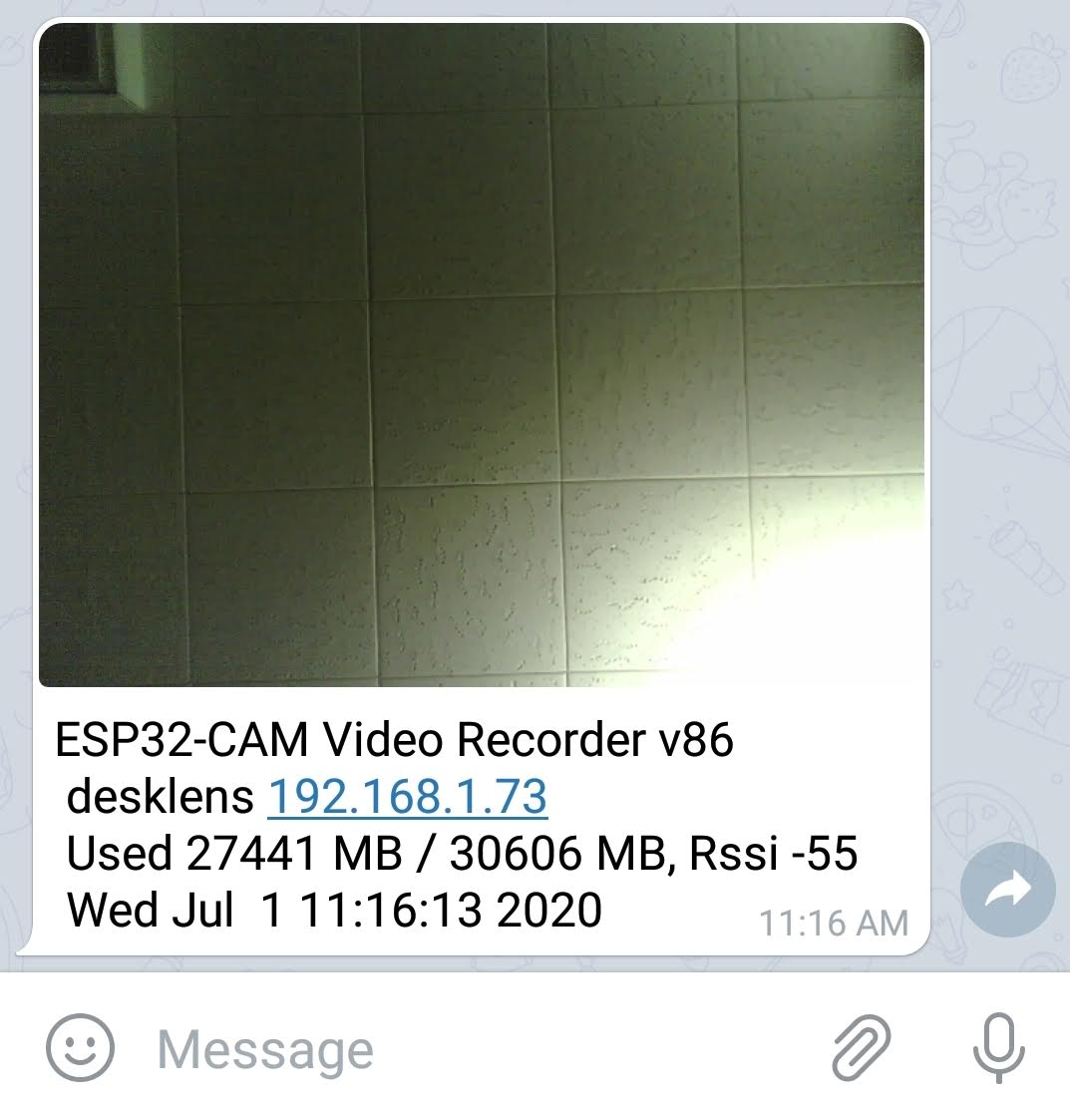

And what it looks like on your phone Telegram App

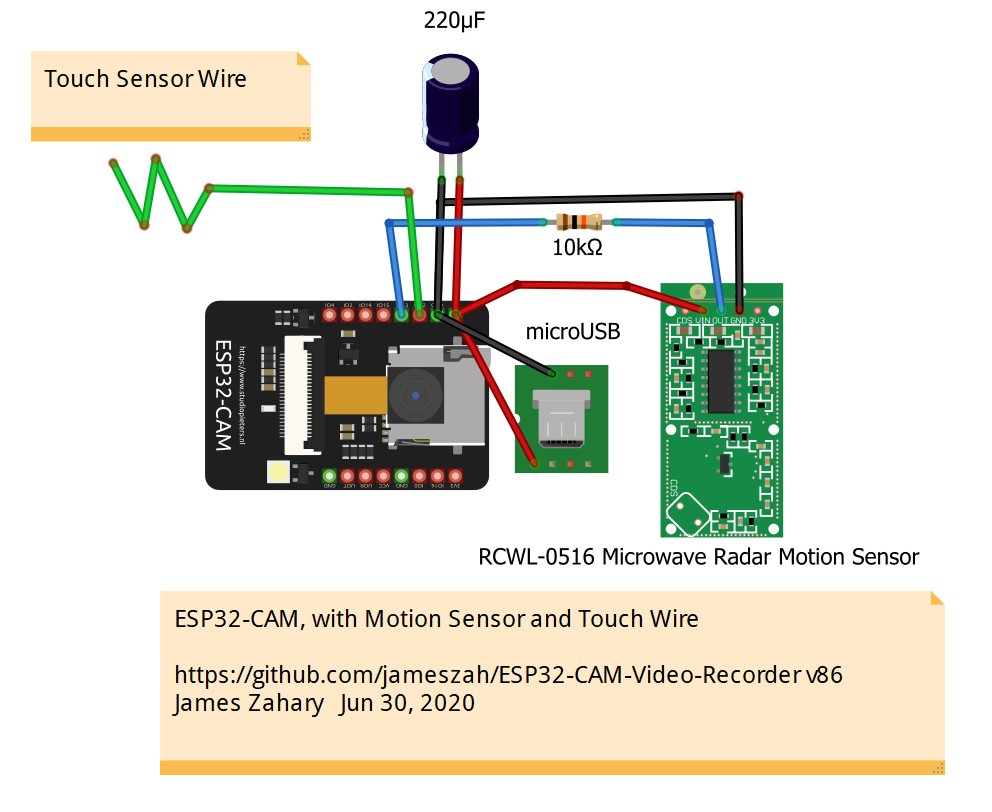

This is a bit of hardware to set up a camera recording to SD Card whenever something moves, as seen through a microwave device, and adds a led so you can see when the camera sees you!
This is a bit of hardware to set up a camera recording to SD Card whenever something moves.
(my microUSB adapter is different from the one in the library)
New version # 60
Also, someone did an instructables.com explanation and video about the Sep 15, 2019 version, which is not bad.
I am refered to as "The Team" :-)
Other general advice about the ESP32-CAM.
It is a similar program, but makes a ".mjpeg" file rather than an ".avi" file.
It will also give you the live-stream through the camera to your browser, it will play the videos for you through the browser, and it will record based on a PIR or other sensor that grounds a pin.
And it solves the "Blinding Disk-Active Light" without any soldering or tape.
Reference by amirjak over in the "Issues" section.
I will be borrowing a few of these good ideas in days to come!
"work-in-progress" I'm publishing this as a few people have been asking or working on this.
program now uses both cores with core 0 taking pictures and queueing them for a separate task on core 1 writing them to the avi file on the sd card
the loop() task on core 1 now just handles the ftp system and http server
dropped fixed ip and switch to mDNS with name "desklens", which can be typed into browser, and also used as wifi name on router
small change to ftp to cooperate with WinSCP program
fixed bug so Windows would calulcate the correct length (time length) of avi
when queue of frames gets full, it skips every other frame to try to catch up
camera is re-configued when changing from UXGA <> VGA to allow for more buffers with the smaller frames
You just need the 3 files in the /v23 folder for July version, which takes a picture and stores it or the 3 files in the /v39 folder for the current which adds the queueing system to get better frame rates, and keep recording if there is a small delay on file system.
The is Arduino code, with standard setup for ESP32-CAM - Board ESP32 Wrover Module - Partition Scheme Huge APP (3MB No OTA)
This program records an AVI video on the SD Card of an ESP32-CAM.
It will record realtime video at limited framerates, or timelapses with the full resolution of the ESP32-CAM. It is controlled by a web page it serves to stop and start recordings with many parameters, and look through the viewfinder.
You can control framesize (UXGA, VGA, ...), quality, length, and fps to record, and fps to playback later, etc.
There is also an ftp server to download the recordings to a PC.
The program uses a fixed IP of 192.168.1.222, so you can browse to it from your phone or computer.
http://192.168.1.222/ -- this gives you the status of the recording in progress and lets you look through the viewfinder
http://192.168.1.222/stop -- this stops the recording in progress and displays some sample commands to start new recordings
ftp://192.168.1.222/ -- gives you the ftp server
The ftp for esp32 seems to not be a full ftp. The Chrome Browser and the Windows command line ftp's did not work with this, but the Raspbarian command line ftp works fine, and an old Windows ftp I have called CoffeeCup Free FTP also works, which is what I have been using. You can download at about 450 KB/s -- which is better than having to retreive the SD chip if you camera is up in a tree!
-- this is a sample to start a new recording
These factors have to be within the limit of the SD chip to receive the data. For example, using a LEXAR 300x 32GB microSDHC UHS-I, the following works for me:
If you increase fps, you might have to reduce quality or framesize to keep it from dropping frames as it writes all the data to the SD chip.
Also, other SD chips will be faster or slower. I was using a SanDisk 16GB microSDHC "Up to 653X" - which was slower and more unpredictable than the LEXAR ???
Search for "zzz" to find places to modify the code for:
Sample videos produced by the program in the /sample-output folder -- it is not GoPro quality, but then GoPro's don't cost $10.
While not necessay, following is how I dealt with the "Flash" led on the front of the ESP32-CAM chip.
Picture below shows my solution to the "Flash" led, aka "the Blinding Disk-Active light". The led turns on whenever you are are writing data to the SD chip, which is normally after you have taken the picture, so you don't need the flash on any more!
Quick de-solder of the collector on the top of the J3Y transistor just above the led, then put in some tape to keep it clear -- you can solder it back later if you want to use it.
