Naftis

License Build Status

English | 中文

Naftis is a web-based dashboard for Istio. It helps user manage their Istio tasks more easily. Using Naftis we can custom our own task templates, then build task from them and execute it.

Features

  • Integrates with some real-time dashboards
  • Customizable task template
  • Support Rollback specific task
  • Optimized Istio service graph with supporting of specifying particular root service node
  • With diagnose data of Istio services and pods
  • Out of the box, easy deployment with kubectl commands
  • Istio 1.0 supported

Quick started

# download latest Naftis release files and manifest
wget -O - https://raw.githubusercontent.com/XiaoMi/naftis/master/tool/getlatest.sh | bash

# deploy Naftis under bare metal Kubernetes
kubectl create namespace naftis && kubectl apply -n naftis -f mysql.yaml && kubectl apply -n naftis -f naftis.yaml

# deploy Naftis under cloud Kubernetes cluster, such as GKE, Amazon EKS, Alibaba Cloud Kubernetes
kubectl create namespace naftis && kubectl apply -n naftis -f mysql-cloud.yaml && kubectl apply -n naftis -f naftis.yaml

# port forward Naftis
kubectl -n naftis port-forward $(kubectl -n naftis get pod -l app=naftis-ui -o jsonpath='{.items[0].metadata.name}') 8080:80 &

# explorer http://localhost:8080/ with your browser, default user name and password is "admin".

Detailed deployments

# download latest Naftis files and manifest
wget -O - https://raw.githubusercontent.com/XiaoMi/naftis/master/tool/getlatest.sh | bash

# create Naftis namespace
$ kubectl create namespace naftis

# ensure Naftis namespace is created
$ kubectl get namespace naftis
NAME           STATUS    AGE
naftis         Active    18m

# deploy Naftis MySQL service under bare metal Kubernetes
$ kubectl apply -n naftis -f mysql.yaml
# deploy Naftis MySQL service under cloud Kubernetes cluster, such as GKE, Amazon EKS, Alibaba Cloud Kubernetes
$ kubectl apply -n naftis -f mysql-cloud.yaml

# ensure MySQL service is deployed
$ kubectl get svc -n naftis
NAME                           READY     STATUS    RESTARTS   AGE
naftis-mysql-c78f99d6c-kblbq   1/1       Running   0          9s
naftis-mysql-test              1/1       Running   0          10s

# deploy Naftis API and UI service
$ kubectl apply -n naftis -f naftis.yaml

# ensure Naftis all services is correctly defined and running
$ kubectl get svc -n naftis
NAME           TYPE           CLUSTER-IP      EXTERNAL-IP   PORT(S)        AGE
naftis-api     ClusterIP      10.233.3.144    <none>        50000/TCP      7s
naftis-mysql   ClusterIP      10.233.57.230   <none>        3306/TCP       55s
naftis-ui      LoadBalancer   10.233.18.125   <pending>     80:31286/TCP   6s

$ kubectl get pod -n naftis
NAME                           READY     STATUS    RESTARTS   AGE
naftis-api-0                   1/2       Running   0          19s
naftis-mysql-c78f99d6c-kblbq   1/1       Running   0          1m
naftis-mysql-test              1/1       Running   0          1m
naftis-ui-69f7d75f47-4jzwz     1/1       Running   0          19s

# browse Naftis via port-forward
$ kubectl -n naftis port-forward $(kubectl -n naftis get pod -l app=naftis-ui -o jsonpath='{.items[0].metadata.name}') 8080:80 &

Explorer http://localhost:8080/ with your browser, default user name and password is "admin".

Previews

Dashboard

Dashboard

Services

Service detail

Services-Detail

Service pod

Services-Pod

Task templates

Task tpl

Task Tpl

Task view

Task View

Task new

Task New

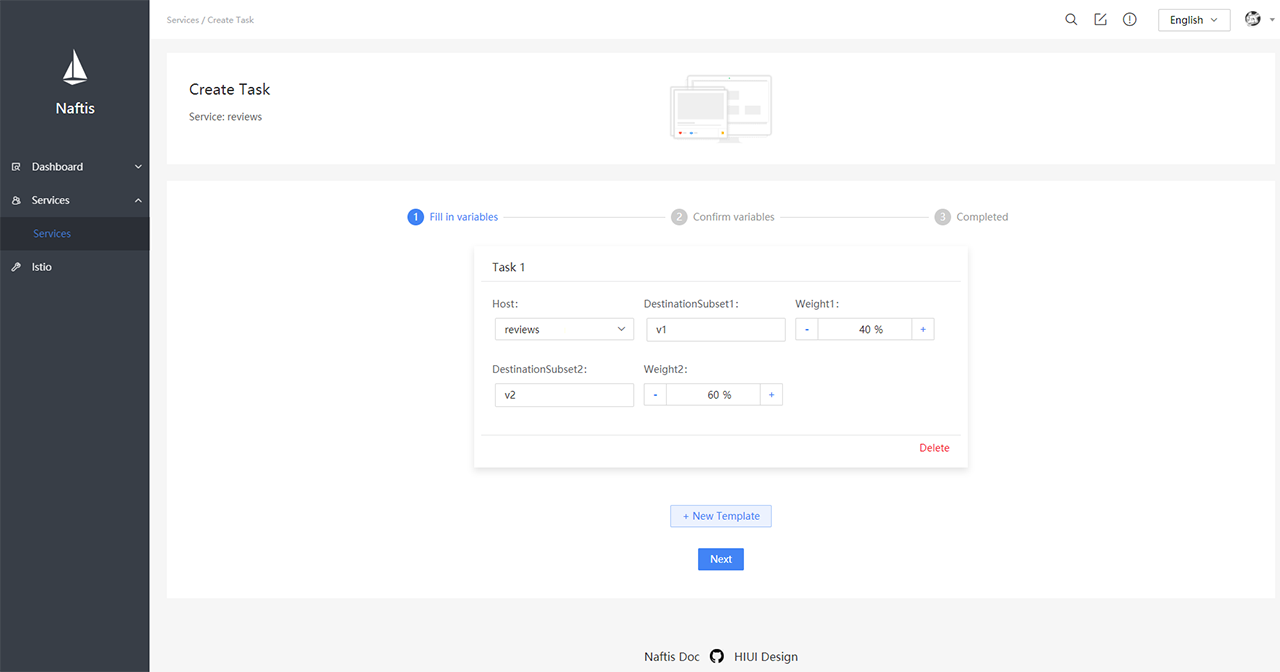

Create task

Create Task Step1

Create Task Step2

Create Task Step3

Istio diagnosis

Istio Diagnosis

Contribution

See CONTRIBUTING for details on submitting patches and the contribution workflow.

License

Apache License 2.0
