Erlang Atrace Flamegraphs

Generate flamegraphs from Android method trace files
Alternatives To Erlang Atrace Flamegraphs
Project NameStarsDownloadsRepos Using ThisPackages Using ThisMost Recent CommitTotal ReleasesLatest ReleaseOpen IssuesLicenseLanguage
Disruptor16,3682,1631,0504 days ago28December 31, 202112apache-2.0Java
High Performance Inter-Thread Messaging Library
Booster4,605325 days ago256June 08, 202338apache-2.0Kotlin
🚀Optimizer for mobile applications
Happypack4,1102,1641,3923 years ago38January 04, 201948mitJavaScript
Happiness in the form of faster webpack build times.
Piscina3,5241103 days ago21August 01, 202324otherTypeScript
A fast, efficient Node.js Worker Thread Pool implementation
Libgo2,94223 months ago2April 30, 2020111mitC++
Go-style concurrency in C++11
10 days ago55apache-2.0C++
A RocksDB compatible KV storage engine with better performance
4 months ago90mitC++
Lightweight profiler library for c++
Fflate1,7843115 days ago51May 22, 20233mitTypeScript
High performance (de)compression in an 8kB package
Lazycache1,56111674 months ago21September 01, 202152mitC#
An easy to use thread safe in-memory caching service with a simple developer friendly API for c#
Yappi1,19232028a month ago22October 31, 202224mitPython
Yet Another Python Profiler, but this time multithreading, asyncio and gevent aware.
Alternatives To Erlang Atrace Flamegraphs
Select To Compare

Alternative Project Comparisons

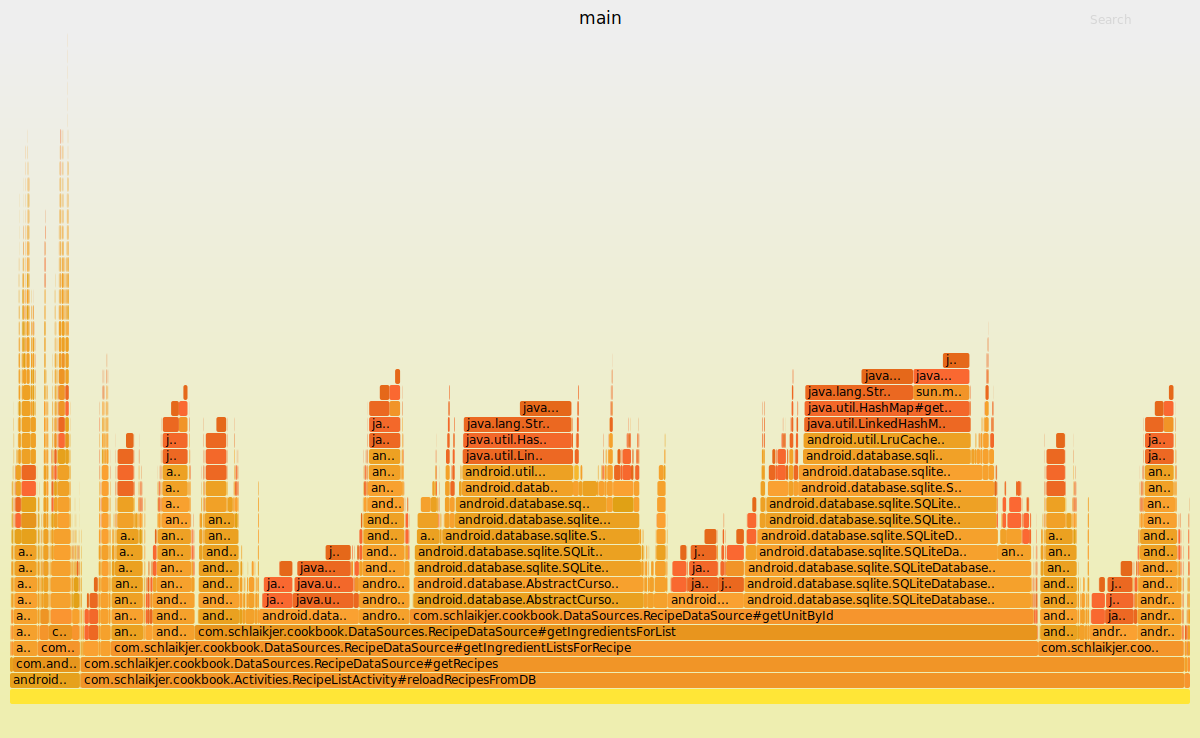

Visualizer for android profiling information (try it!)

AFlame is a tool for extracting data from Android method trace files without having to use Traceview.

In order to generate some trace files, wrap your code under test like so:

Debug.startMethodTracing("traceName", 128 * 1024 * 1024);
// Code under test

If you are testing a particularly intensive section, you can use the sampling tracing method available on newer APIs that considerably ameliorates the tracer's performance impact.

This project relies on Brendan Gregg's excellent Flamegraph project to generate the graphs themselves.

To test out this tool without running it yourself, you can upload your trace file to and get a result pretty quickly. If you don't have any traces yet, you can take a look at a sample trace from a recipe app here

I have posted in depth about the Android trace format here.


To run a local copy of AFlame (with rebar):

git clone [email protected]:rschlaikjer/erlang-atrace-flamegraphs.git aflame
cd aflame
# Update files/app.config to use a port and trace output location that suit
ERL_FLAGS="-config files/app.config" rebar3 shell
# Open it up in your browser
xdg-open http://localhost:8192/

This repository also contains a Dockerfile that can be used to run the system without installing all the necessary dependencies on the host. To do so,

# From within the top level of this repo
docker build .
# Take the successfully built hash from the docker build output as $HASH
# For very large traces, you may need to increase the memory the container
# is allowed to use by passing --memory=3g (or more, as necessary).
docker run --rm -it $HASH

Android Trace file format

The information here is based on the ART implementation of tracing, which can be viewed here:

*version section

Plain text section of key=value pairs. Includes general info about the trace.

  • data-file-overflow: Whether or not this trace overflowed its buffer and so is missing events
  • clock: One of thread-cpu (Clock is CPU time), wall (Clock is wall clock) or dual (Both are present)
  • elapsed-time-usec: total time elapsed during the trace
  • num-method-calls: total number of calls contained in the trace
  • clock-call-overhead-nsec: The time it takes to actually check the clock.
  • vm: Art or Dalvik
  • pid: PID of the process under trace

For traces with GC tracking, the header can also contain:

  • alloc-count: Number of allocated objects
  • alloc-size: Size of allocated objects (bytes)
  • gc-count: Number of GCs completed during trace

*threads section

Plain text section of tab separated pairs. Each pair is a base 10 thread ID, and a thread name. This numeric thread ID is referenced from the trace data section.

*methods section

Plain text section of tab separated pairs. Each line is a 5-tuple of:

  • Method ID (in hex). A primary key for referring to a method entry.
  • Class name
  • Method name
  • Type signature
  • Source file
  • Source line (not always present)

The method ID is referenced from the trace data section. The number here is actually the real method ID left shifted two bits - this is explained in the data section.

Raw trace data section

All numbers are stored as little-endian.


  • Magic (4 bytes): 'SLOW'
  • Version (2 bytes): Most traces seem to be version 3.
  • Data Offset (2 bytes): The number of bytes after the header that the data section begins.
  • Start Time (8 bytes): The time (microseconds) that the trace began
  • Recordsize (2 bytes): The number of bytes in each trace record.

Data records (v3):

  • ThreadId (2 bytes): References the threads table above
  • MethodId (4 bytes): Compound method ID and method Action (enter 0x0, exit 0x1 and unwind 0x2)
  • TimeDelta (4 bytes): Offset into the trace at which this record was logged (microsecs)
  • Wall clock delta (4 bytes) Offset into the trace (wall time) at which this record was logged

Each method record denotes an event that occurred in the given method. The method itself is identified by the high 14 bits of the compound method ID, which matches against the methods table higher in the file. The action is one of three currently defined:

  • 0x0 (Method enter): Recorded when the runtime enters a method call
  • 0x1 (Method exit): Recorded when the runtime exits a method call
  • 0x2 (Unwind): Recorded when the runtime unwinds the stack. Seems to be functionally equivalent to a return.

I interpret the unwind as a return for the purposes of the graphs; this is based on what I can glean from reading up on when an unwind is issued by the interpreter here , and the part of the interpreter that then checks for kDexNoIndex here

By pushing and popping the records onto a virtual stack per thread, you can recreate the trace, and use the offsets to work out how much time was spent in each function.

All parsing code can be seen here.


Copyright 2018 Ross Schlaikjer

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Popular Thread Projects
Popular Performance Projects
Popular Control Flow Categories
Related Searches

Get A Weekly Email With Trending Projects For These Categories
No Spam. Unsubscribe easily at any time.
