flutter_timeline

a fully customizable & general timeline widget, based on real-world application references

• fully customizable indicator dot
• support spacing between indicator dot and lines
• support spacing between event (items) but leaving the line connected
• uses custom paint, but yet, indicator and body are fully customizable.

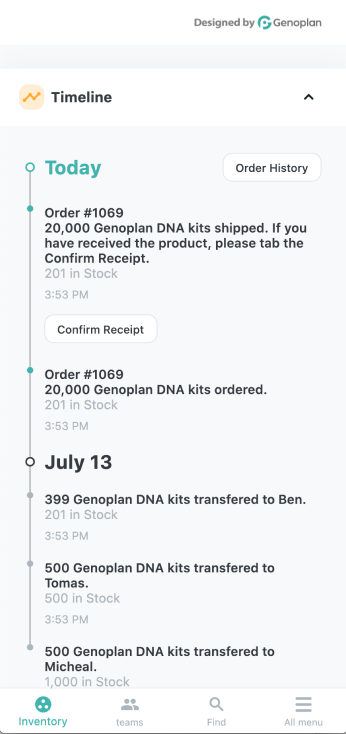

• 2 real-world demos
• L2R support
• anchor support
• global offset support
• item offset support
• supported & used by enterprise, constantly updated, used on production application.

Installation

dependencies:
  flutter_timeline: latest

usage

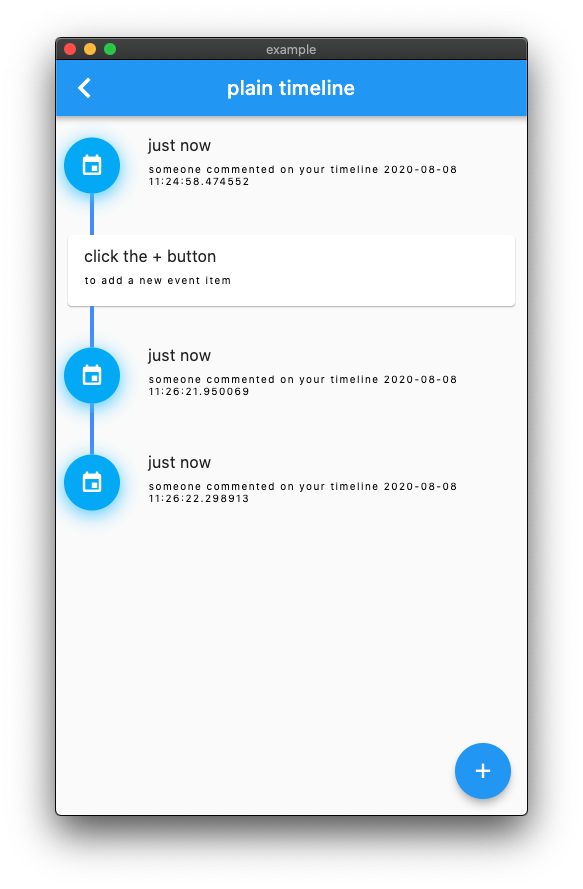

simple

  TimelineEventDisplay get plainEventDisplay {
    return TimelineEventDisplay(
        child: TimelineEventCard(
          title: Text("just now"),
          content: Text("someone commented on your timeline ${DateTime.now()}"),
        ),
        indicator: TimelineDots.of(context).circleIcon);
  }

  List<TimelineEventDisplay> events;

  Widget _buildTimeline() {
    return TimelineTheme(
        data: TimelineThemeData(lineColor: Colors.blueAccent),
        child: Timeline(
          indicatorSize: 56,
          events: events,
        ));
  }

  void _addEvent() {
    setState(() {
      events.add(plainEventDisplay);
    });
  }

using offset

Widget _buildTimeline() {
  return Timeline(
      indicatorSize: 56,
      events: events,
      altOffset: Offset(0, -24) // set offset
  );
}

using anchor & offset

  TimelineEventDisplay get plainEventDisplay {
    return TimelineEventDisplay(
        anchor: IndicatorPosition.top,
        indicatorOffset: Offset(0, 24),
        child: TimelineEventCard(
          title: Text("multi\nline\ntitle\nawesome!"),
          content: Text("someone commented on your timeline ${DateTime.now()}"),
        ),
        indicator: randomIndicator);
  }

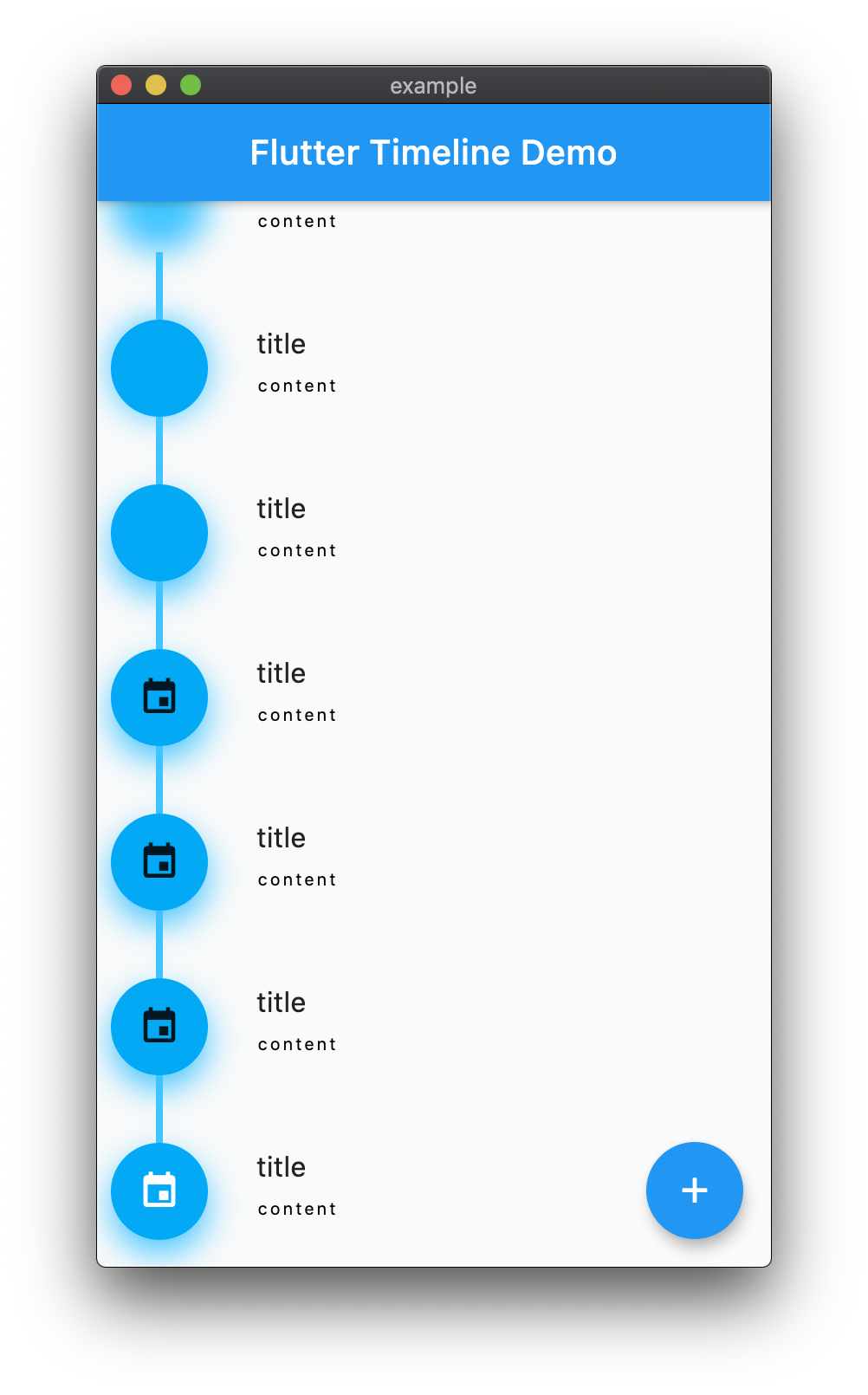

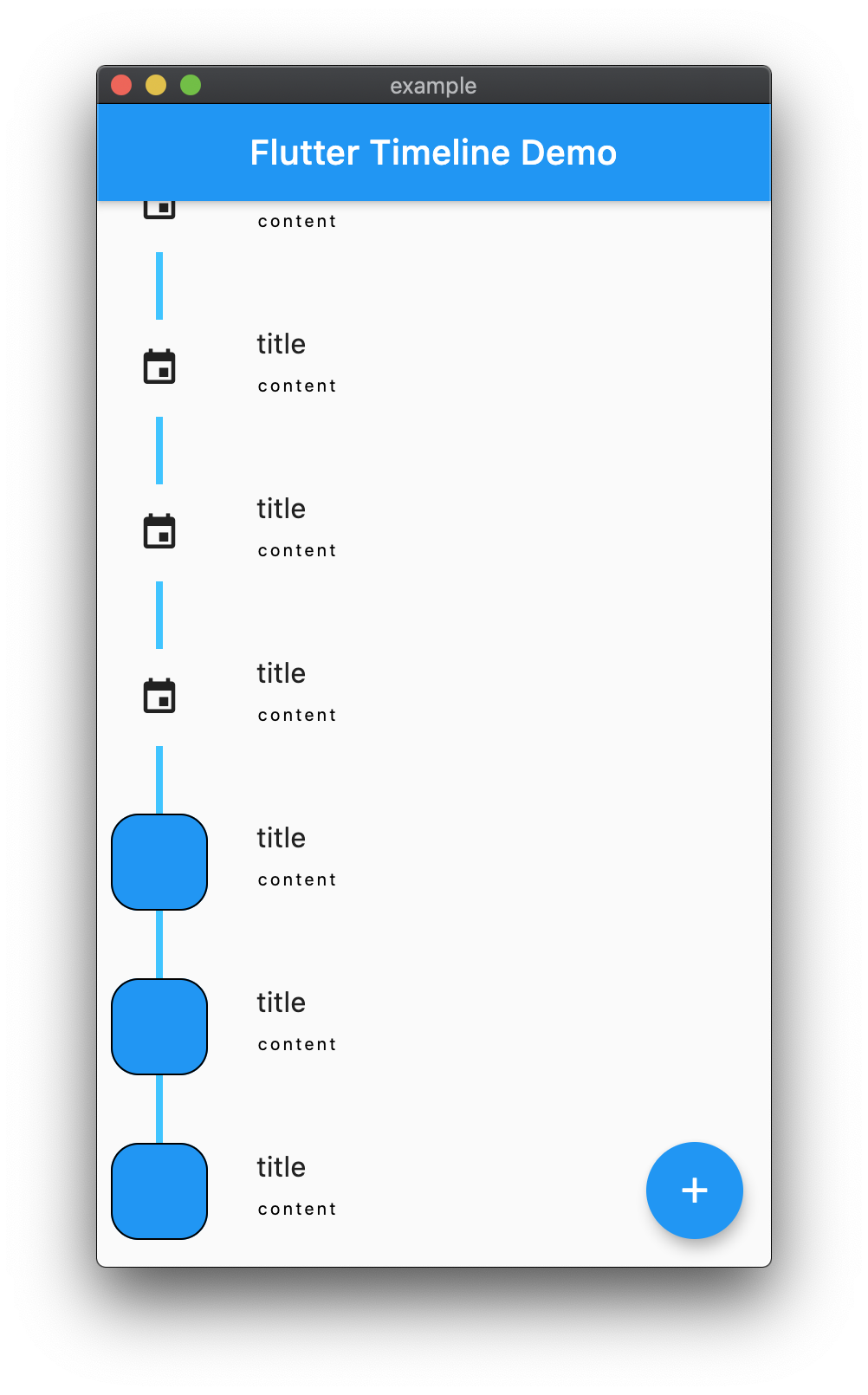

complex example

simple example (run it now!)

more documentation available at github

Sponsors

• Bridged (github)

Also check out...

flutter_layouts

references

https://www.pinterest.com/official_softmarshmallow/flutter-timeline/
