codebeat badge Platforms CocoaPods Carthage SPM Twitter: @JuanpeCatalan

๐ŸŒŽ Translations: ๐Ÿ‡จ๐Ÿ‡ณ by @WhatsXie ๐Ÿ‡ง๐Ÿ‡ท by @brunomunizaf ๐Ÿ‡ฐ๐Ÿ‡ท by @techinpark

Today almost all apps have async processes, such as Api requests, long running processes, etc. And while the processes are working, usually developers place a loading view to show users that something is going on.

SkeletonView has been conceived to address this need, an elegant way to show users that something is happening and also prepare them to which contents he is waiting.

Enjoy it! ๐Ÿ™‚

๐ŸŒŸ Features

  • [x] Easy to use
  • [x] All UIViews are skeletonables
  • [x] Fully customizable
  • [x] Universal (iPhone & iPad)
  • [x] Interface Builder friendly
  • [x] Simple Swift syntax
  • [x] Lightweight readable codebase

๐ŸŽฌ Guides

๐Ÿ“ฒ Installation

Using CocoaPods

Edit your Podfile and specify the dependency:

pod "SkeletonView"

Using Carthage

Edit your Cartfile and specify the dependency:

github "Juanpe/SkeletonView"

Using Swift Package Manager

Once you have your Swift package set up, adding SkeletonView as a dependency is as easy as adding it to the dependencies value of your Package.swift.

  dependencies: [
    .package(url: "", from: "1.7.0")

๐Ÿ’ How to use

Only 3 steps needed to use SkeletonView:

1. Import SkeletonView in proper place.

import SkeletonView

2. Now, set which views will be skeletonables. You achieve this in two ways:

Using code:

avatarImageView.isSkeletonable = true

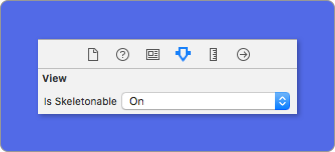

Using IB/Storyboards:

3. Once you've set the views, you can show the skeleton. To do so, you have 4 choices:

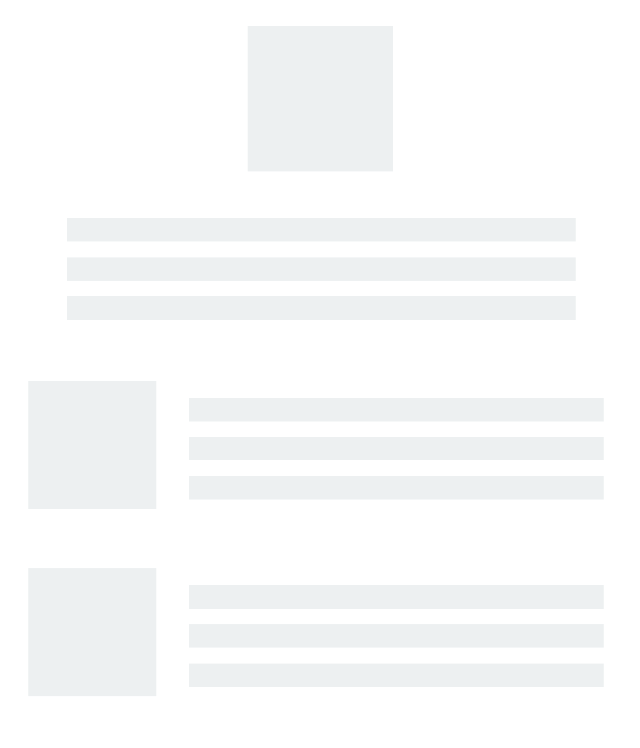

(1) view.showSkeleton()                 // Solid
(2) view.showGradientSkeleton()         // Gradient

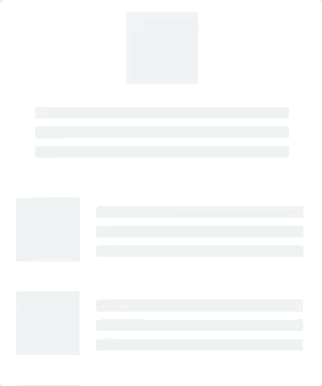

(3) view.showAnimatedSkeleton()         // Solid animated
(4) view.showAnimatedGradientSkeleton() // Gradient animated


Solid Gradient Solid Animated Gradient Animated


SkeletonView is recursive, so if you want show the skeleton in all skeletonable views, you only need to call the show method in the main container view. For example, with UIViewControllers


Skeleton views layout

Sometimes skeleton layout may not fit your layout because the parent view bounds have changed. For example, rotating the device.

You can relayout the skeleton views like so:

override func viewDidLayoutSubviews() {

โš ๏ธโš ๏ธ You shouldn't call this method. From version 1.8.1 you don't need to call this method, the library does automatically. So, you can use this method ONLY in the cases when you need to update the layout of the skeleton manually.

Update skeleton configuration

You can change the skeleton configuration at any time like its colour, animation, etc. with the following methods:

(1) view.updateSkeleton()                 // Solid
(2) view.updateGradientSkeleton()         // Gradient
(3) view.updateAnimatedSkeleton()         // Solid animated
(4) view.updateAnimatedGradientSkeleton() // Gradient animated

๐ŸŒฟ Collections

Now, SkeletonView is compatible with UITableView and UICollectionView.


If you want to show the skeleton in a UITableView, you need to conform to SkeletonTableViewDataSource protocol.

public protocol SkeletonTableViewDataSource: UITableViewDataSource {
    func numSections(in collectionSkeletonView: UITableView) -> Int
    func collectionSkeletonView(_ skeletonView: UITableView, numberOfRowsInSection section: Int) -> Int
    func collectionSkeletonView(_ skeletonView: UITableView, cellIdentifierForRowAt indexPath: IndexPath) -> ReusableCellIdentifier
    func collectionSkeletonView(_ skeletonView: UITableView, identifierForHeaderInSection section: Int) -> ReusableHeaderFooterIdentifier?
    func collectionSkeletonView(_ skeletonView: UITableView, identifierForFooterInSection section: Int) -> ReusableHeaderFooterIdentifier?

As you can see, this protocol inherits from UITableViewDataSource, so you can replace this protocol with the skeleton protocol.

This protocol has a default implementation:

func numSections(in collectionSkeletonView: UITableView) -> Int
// Default: 1
func collectionSkeletonView(_ skeletonView: UITableView, numberOfRowsInSection section: Int) -> Int
// Default:
// It calculates how many cells need to populate whole tableview
func collectionSkeletonView(_ skeletonView: UITableView, identifierForHeaderInSection section: Int) -> ReusableHeaderFooterIdentifier?
// Default: nil
func collectionSkeletonView(_ skeletonView: UITableView, identifierForFooterInSection section: Int) -> ReusableHeaderFooterIdentifier?
// Default: nil

There is only one method you need to implement to let Skeleton know the cell identifier. This method doesn't have default implementation:

func collectionSkeletonView(_ skeletonView: UITableView, cellIdentifierForRowAt indexPath: IndexPath) -> ReusableCellIdentifier


func collectionSkeletonView(_ skeletonView: UITableView, cellIdentifierForRowAt indexPath: IndexPath) -> ReusableCellIdentifier {
   return "CellIdentifier"

IMPORTANT! If you are using resizable cells (tableView.rowHeight = UITableViewAutomaticDimension ), it's mandatory define the estimatedRowHeight.

๐Ÿ‘ฉ๐Ÿผโ€๐Ÿซ How specify which elements are skeletonables?

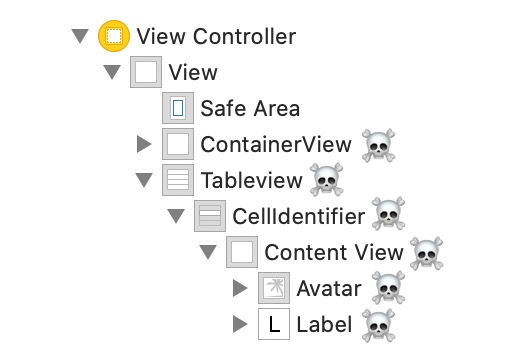

Here is an illustration that shows how you should specify which elements are skeletonables when you are using an UITableView:

As you can see, we have to make skeletonable the tableview, the cell and the UI elements, but we don't need to set as skeletonable the contentView


For UICollectionView, you need to conform to SkeletonCollectionViewDataSource protocol.

public protocol SkeletonCollectionViewDataSource: UICollectionViewDataSource {
    func numSections(in collectionSkeletonView: UICollectionView) -> Int
    func collectionSkeletonView(_ skeletonView: UICollectionView, numberOfItemsInSection section: Int) -> Int
    func collectionSkeletonView(_ skeletonView: UICollectionView, cellIdentifierForItemAt indexPath: IndexPath) -> ReusableCellIdentifier

The rest of the process is the same as UITableView

๐Ÿ“ฐ Multiline text

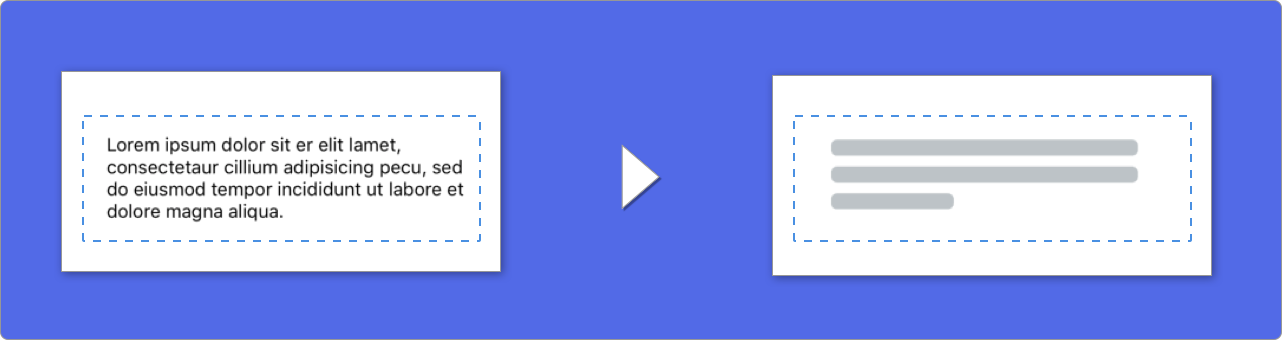

When using elements with text, SkeletonView draws lines to simulate text. Besides, you can decide how many lines you want. If numberOfLines is set to zero, it will calculate how many lines needed to populate the whole skeleton and it will be drawn. Instead, if you set it to one, two or any number greater than zero, it will only draw this number of lines.

๐ŸŽ› Customize

You can set some properties for multilines elements.

Property Values Default Preview
Filling percent of the last line. 0...100 70%

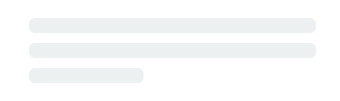

Corner radius of lines. (NEW) 0...10 0

To modify the percent or radius using code, set the properties:

descriptionTextView.lastLineFillPercent = 50
descriptionTextView.linesCornerRadius = 5

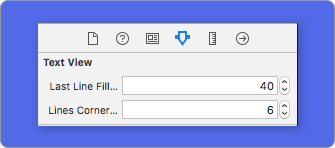

Or, if you prefer use IB/Storyboard:

๐ŸŽจ Custom colors

You can decide which color the skeleton is tinted with. You only need to pass as a parameter the color or gradient you want.

Using solid colors

view.showSkeleton(usingColor: UIColor.gray) // Solid
// or
view.showSkeleton(usingColor: UIColor(red: 25.0, green: 30.0, blue: 255.0, alpha: 1.0))

Using gradients

let gradient = SkeletonGradient(baseColor: UIColor.midnightBlue)
view.showGradientSkeleton(usingGradient: gradient) // Gradient

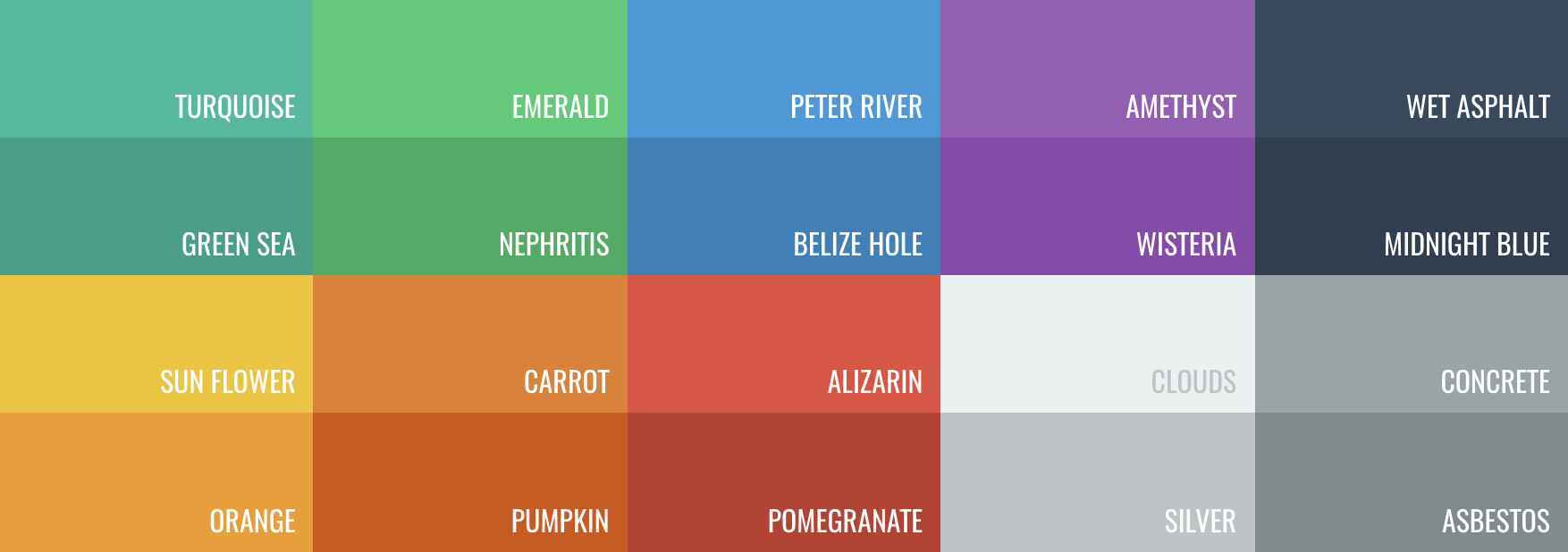

Besides, SkeletonView features 20 flat colors ๐Ÿค™๐Ÿผ

UIColor.turquoise, UIColor.greenSea, UIColor.sunFlower, UIColor.flatOrange ...

Image captured from website

๐Ÿฆ‹ Appearance

NEW The skeletons have a default appearance. So, when you don't specify the color, gradient or multilines properties, SkeletonView uses the default values.

Default values:

  • tintColor: UIColor
    • default: .skeletonDefault (same as .clouds but adaptive to dark mode)
  • gradient: SkeletonGradient
    • default: SkeletonGradient(baseColor: .skeletonDefault)

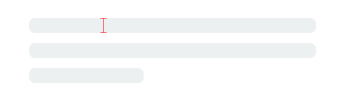

  • multilineHeight: CGFloat
    • default: 15

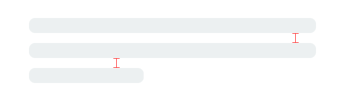

  • multilineSpacing: CGFloat
    • default: 10
  • multilineLastLineFillPercent: Int
    • default: 70
  • multilineCornerRadius: Int
    • default: 0
  • skeletonCornerRadius: CGFloat (IBInspectable) (Make your skeleton view with corner)
    • default: 0

To get these default values you can use SkeletonAppearance.default. Using this property you can set the values as well:

SkeletonAppearance.default.multilineHeight = 20
SkeletonAppearance.default.tintColor = .green

You can also specifiy these line appearance properties on a per-label basis:

  • lastLineFillPercent: Int
  • linesCornerRadius: Int
  • skeletonLineSpacing: CGFloat

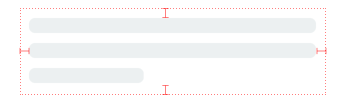

  • skeletonPaddingInsets: UIEdgeInsets

๐Ÿค“ Custom animations

SkeletonView has two built-in animations, pulse for solid skeletons and sliding for gradients.

Besides, if you want to do your own skeleton animation, it's really easy.

Skeleton provides the showAnimatedSkeleton function which has a SkeletonLayerAnimation closure where you can define your custom animation.

public typealias SkeletonLayerAnimation = (CALayer) -> CAAnimation

You can call the function like this:

view.showAnimatedSkeleton { (layer) -> CAAnimation in
  let animation = CAAnimation()
  // Customize here your animation

  return animation

It's available SkeletonAnimationBuilder. It's a builder to make SkeletonLayerAnimation.

Today, you can create sliding animations for gradients, deciding the direction and setting the duration of the animation (default = 1.5s).

// func makeSlidingAnimation(withDirection direction: GradientDirection, duration: CFTimeInterval = 1.5) -> SkeletonLayerAnimation

let animation = SkeletonAnimationBuilder().makeSlidingAnimation(withDirection: .leftToRight)
view.showAnimatedGradientSkeleton(usingGradient: gradient, animation: animation)

GradientDirection is an enum, with this cases:

Direction Preview

๐Ÿ˜‰ TRICK! Exist another way to create sliding animations, just using this shortcut:

let animation = GradientDirection.leftToRight.slidingAnimation()

๐Ÿ„ Transitions

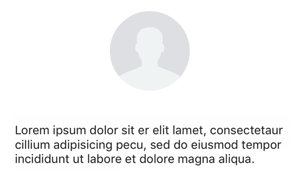

SkeletonView has build-in transitions to show or hide the skeletons in a smoother way ๐Ÿค™

To use the transition, simply add the transition parameter to your showSkeleton() or hideSkeleton() function with the transition time, like this:

view.showSkeleton(transition: .crossDissolve(0.25))     //Show skeleton cross dissolve transition with 0.25 seconds fade time
view.hideSkeleton(transition: .crossDissolve(0.25))     //Hide skeleton cross dissolve transition with 0.25 seconds fade time

The default value is crossDissolve(0.25)


None Cross dissolve

๐Ÿ‘จโ€๐Ÿ‘งโ€๐Ÿ‘ฆ Hierarchy

Since SkeletonView is recursive, and we want skeleton to be very efficient, we want to stop recursion as soon as possible. For this reason, you must set the container view as Skeletonable, because Skeleton will stop looking for skeletonable subviews as soon as a view is not Skeletonable, breaking then the recursion.

Because an image is worth a thousand words:

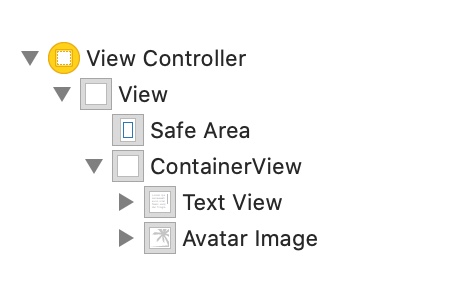

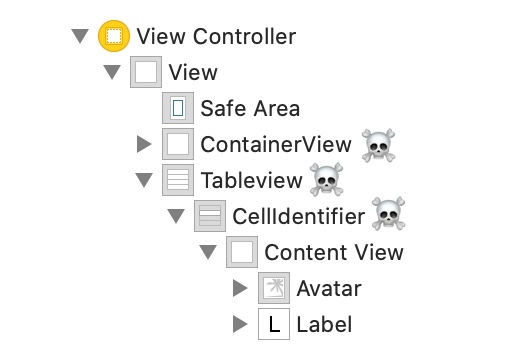

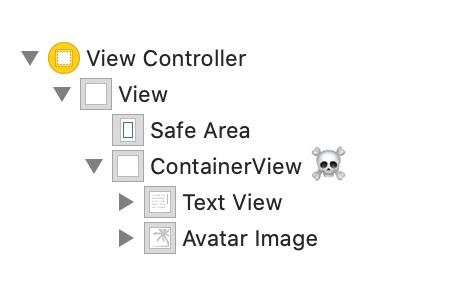

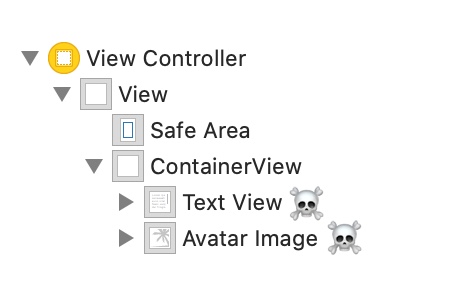

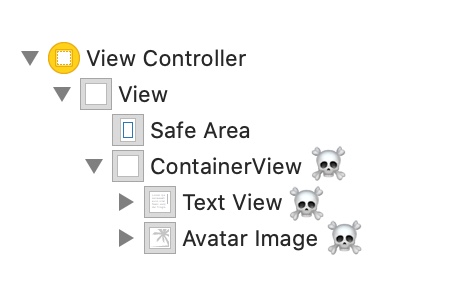

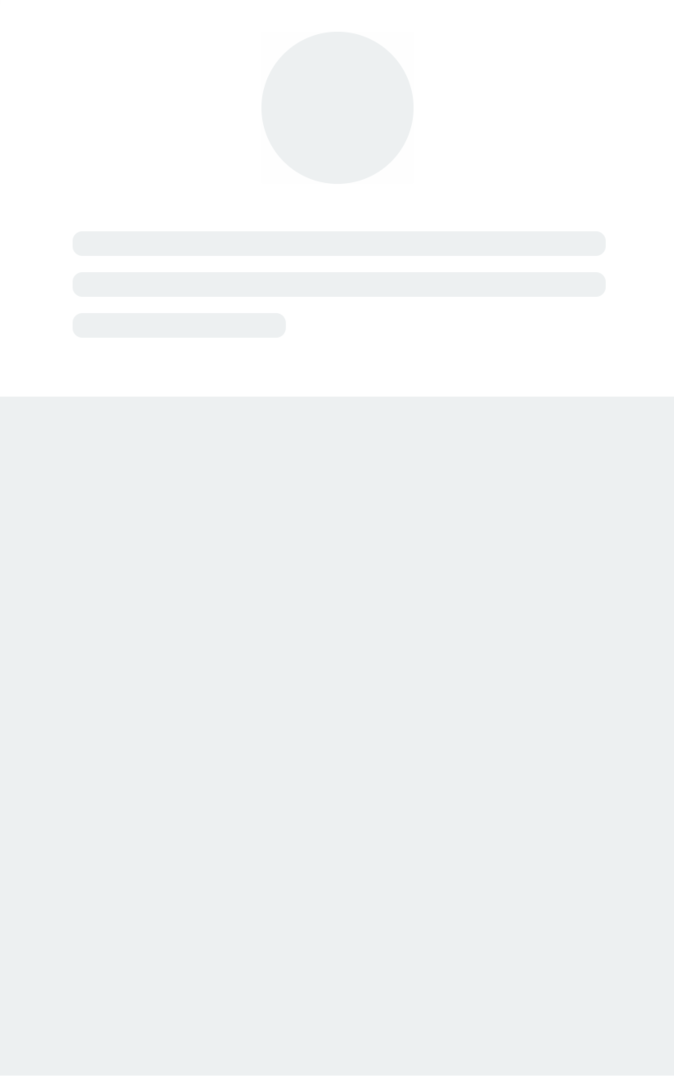

In this example we have a UIViewController with a ContainerView and a UITableView. When the view is ready, we show the skeleton using this method:


รฌsSkeletonable= โ˜ ๏ธ

Configuration Result

๐Ÿ”ฌ Debug

NEW In order to facilitate the debug tasks when something is not working fine. SkeletonView has some new tools.

First, UIView has available a new property with his skeleton info:

var skeletonDescription: String

The skeleton representation looks like this:

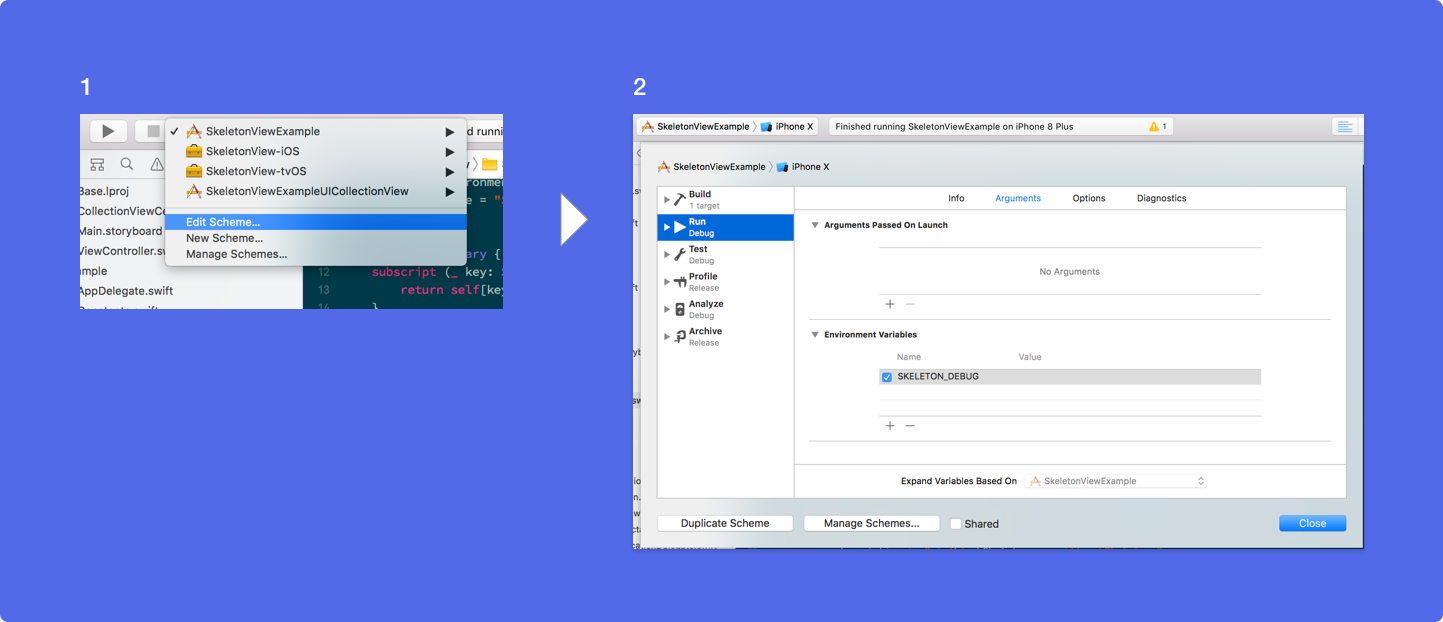

Besides, you can activate the new debug mode. You just add the environment variable SKELETON_DEBUG and activate it.

Then, when the skeleton appears, you can see the view hierarchy in the Xcode console.

Open to see an output example

๐Ÿ“š Documentation

Coming soon...๐Ÿ˜…

๐Ÿ“‹ Supported OS & SDK Versions

  • iOS 9.0+
  • tvOS 9.0+
  • Swift 5

๐Ÿ“ฌ Next steps

  • [x] Set the filling percent of the last line in multiline elements
  • [x] Add more gradient animations
  • [x] Supported resizable cells
  • [x] CollectionView compatible
  • [x] tvOS compatible
  • [x] Add recovery state
  • [x] Custom default appearance
  • [x] Debug mode
  • [x] Add animations when it shows/hides the skeletons
  • [ ] Custom collections compatible
  • [ ] MacOS and WatchOS compatible

โค๏ธ Contributing

This is an open source project, so feel free to contribute. How?

  • Open an issue.
  • Send feedback via email.
  • Propose your own fixes, suggestions and open a pull request with the changes.

See all contributors

Project generated with SwiftPlate

๐Ÿ“ข Mentions

๐Ÿ‘จ๐Ÿปโ€๐Ÿ’ป Author

  • Juanpe Catalรกn alt text

Buy me a coffee

๐Ÿ‘ฎ๐Ÿป License

MIT License

Copyright (c) 2017 Juanpe Catalรกn

Permission is hereby granted, free of charge, to any person obtaining a copy
of this software and associated documentation files (the "Software"), to deal
in the Software without restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to whom the Software is
furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all
copies or substantial portions of the Software.
