Repository for the PSLab Android App for performing experiments with the Pocket Science Lab open-hardware platform.

GitHub repo size

This repository holds the Android App for performing experiments with PSLab. PSLab is a tiny pocket science lab that provides an array of equipment for doing science and engineering experiments. It can function like an oscilloscope, waveform generator, frequency counter, programmable voltage and current source and also as a data logger. Our website is at https://pslab.io

Buy

You can get a Pocket Science Lab device from the FOSSASIA Shop.
More resellers are listed on the PSLab website.

Communication

The PSLab chat channel is on Gitter.
Please also join us on the PSLab Mailing List.

Roadmap

[x] First we need to get communication between Android App and PSLab working.
[x] Implement Applications and expose PSLab Hardware functionality to the user.
[ ] Implement wireless connectivity

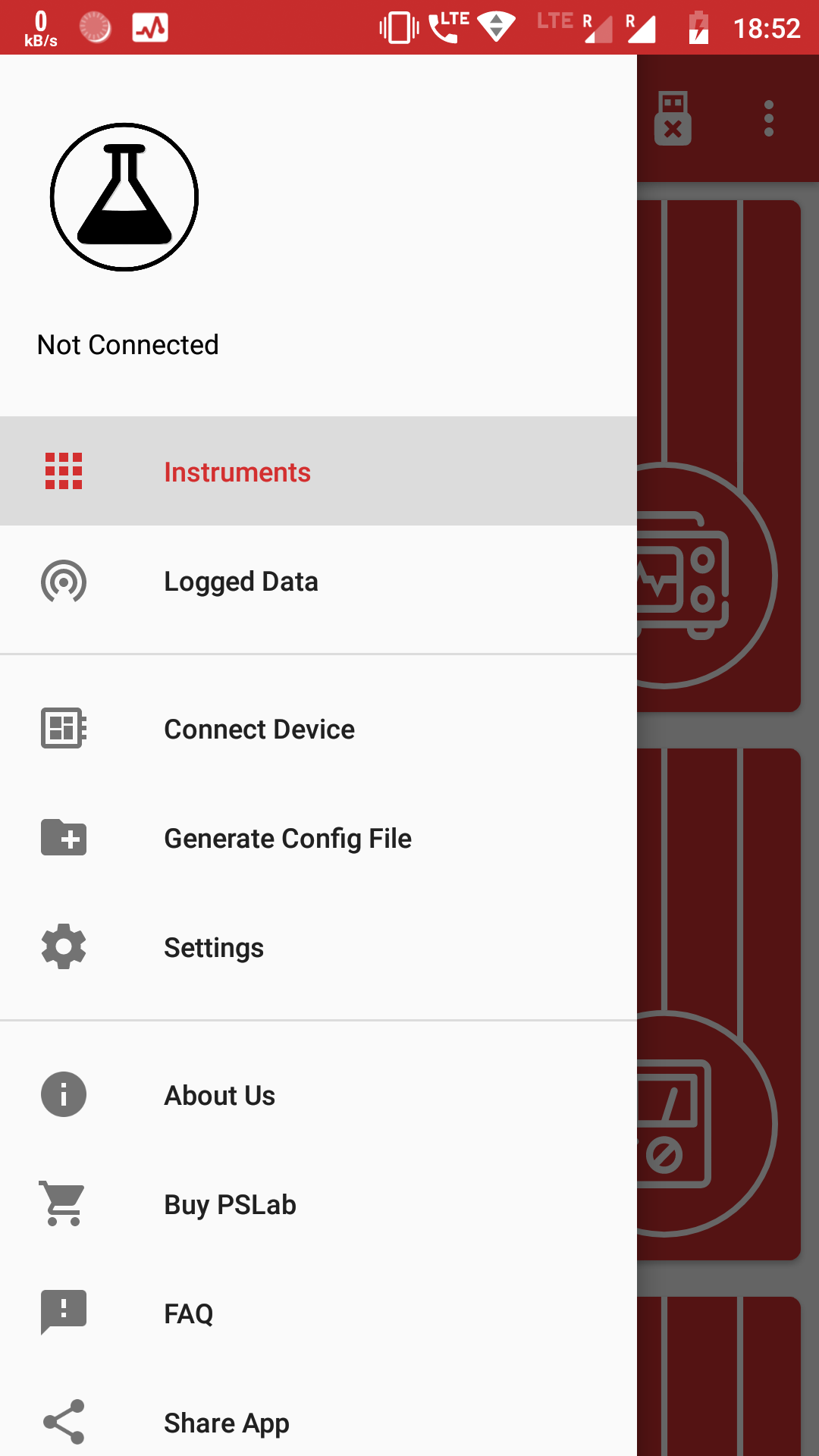

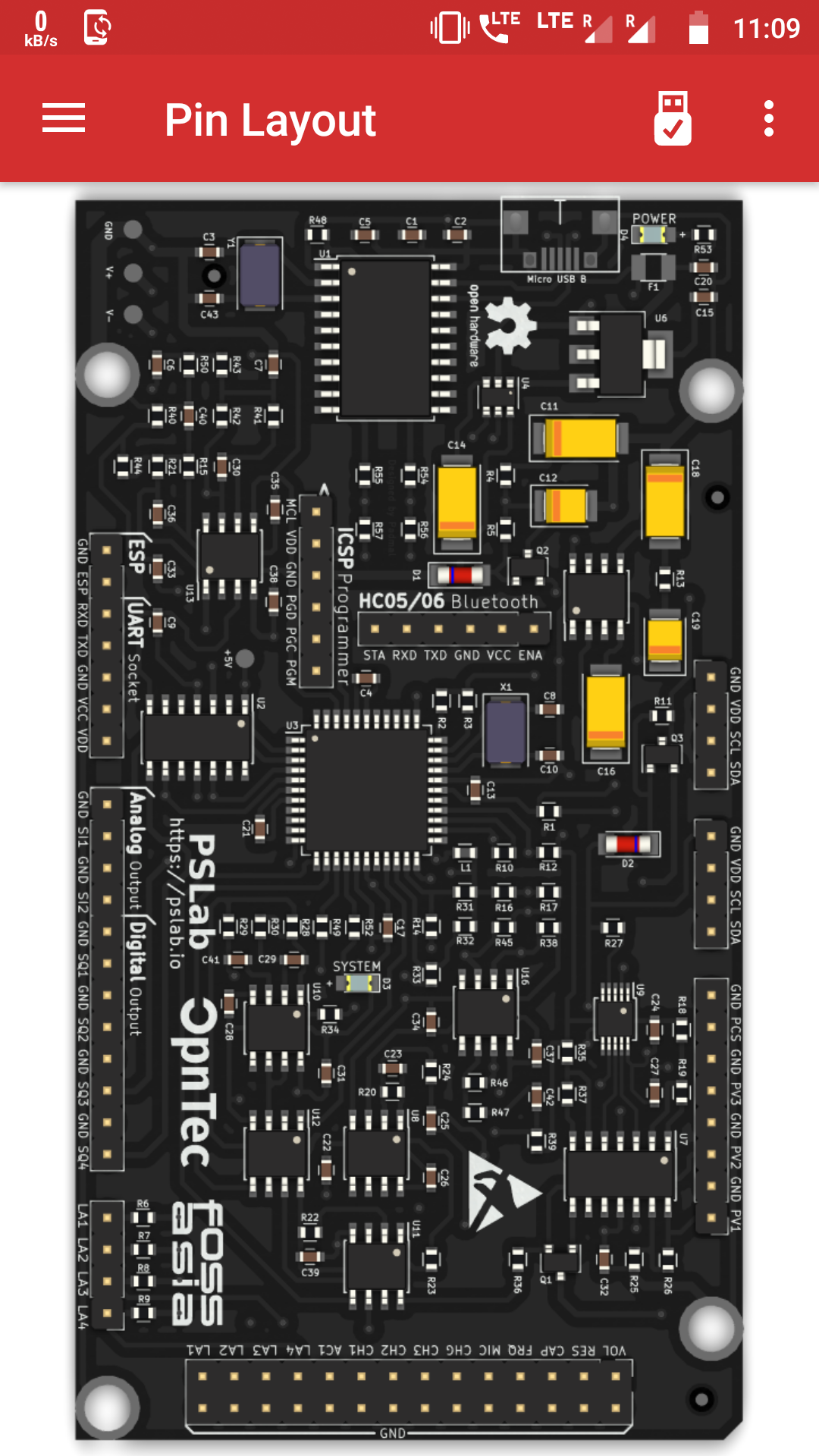

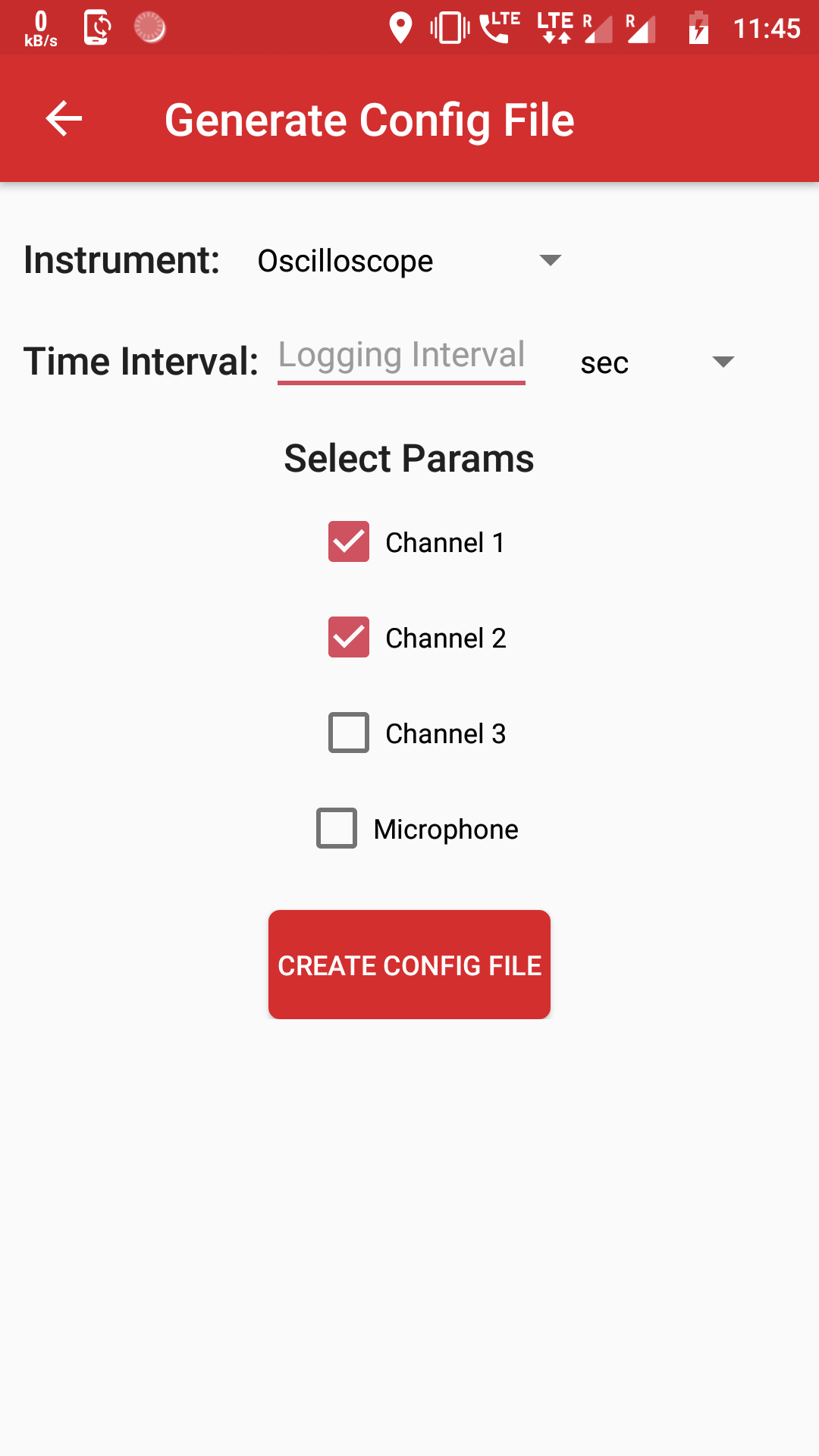

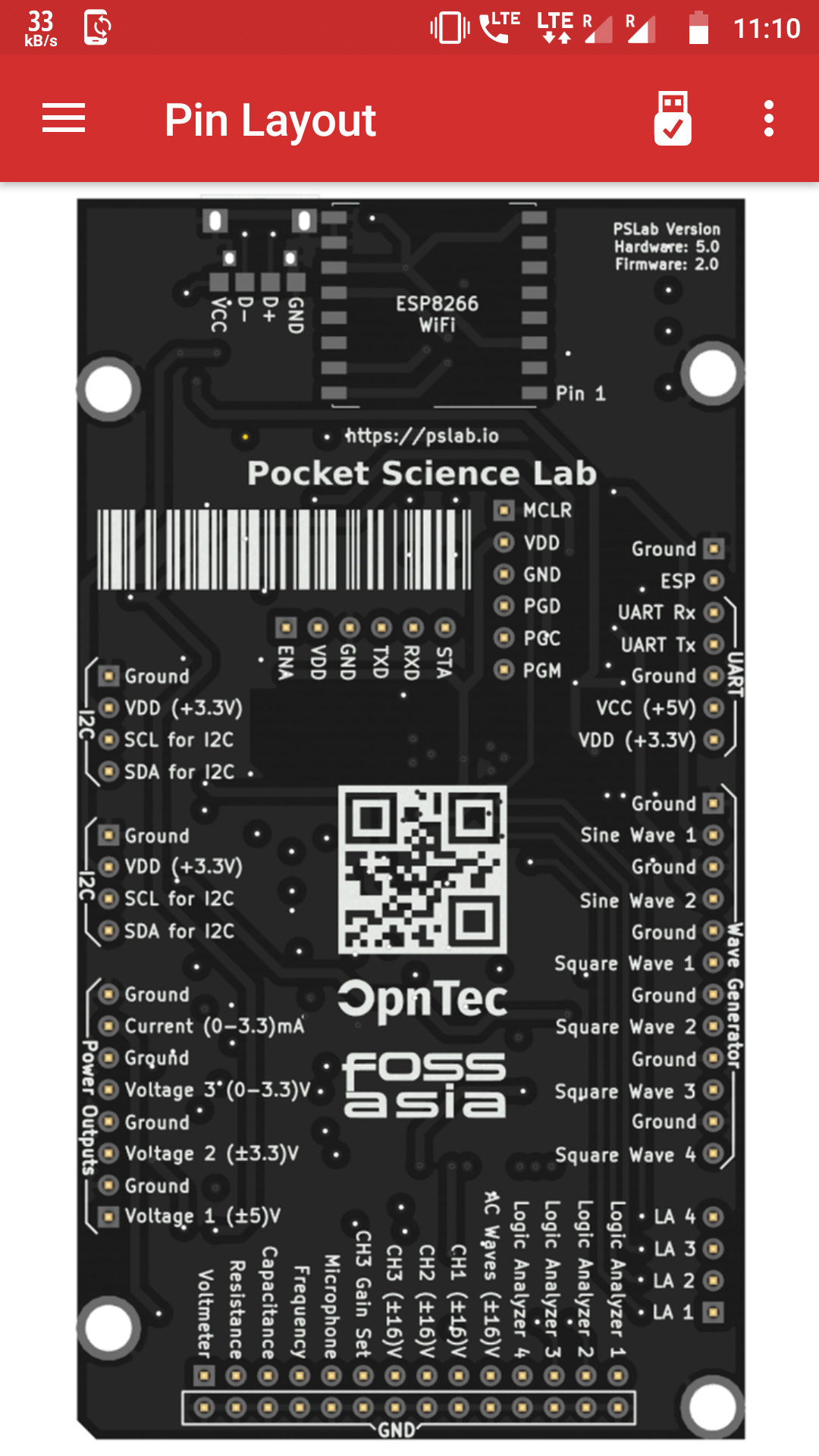

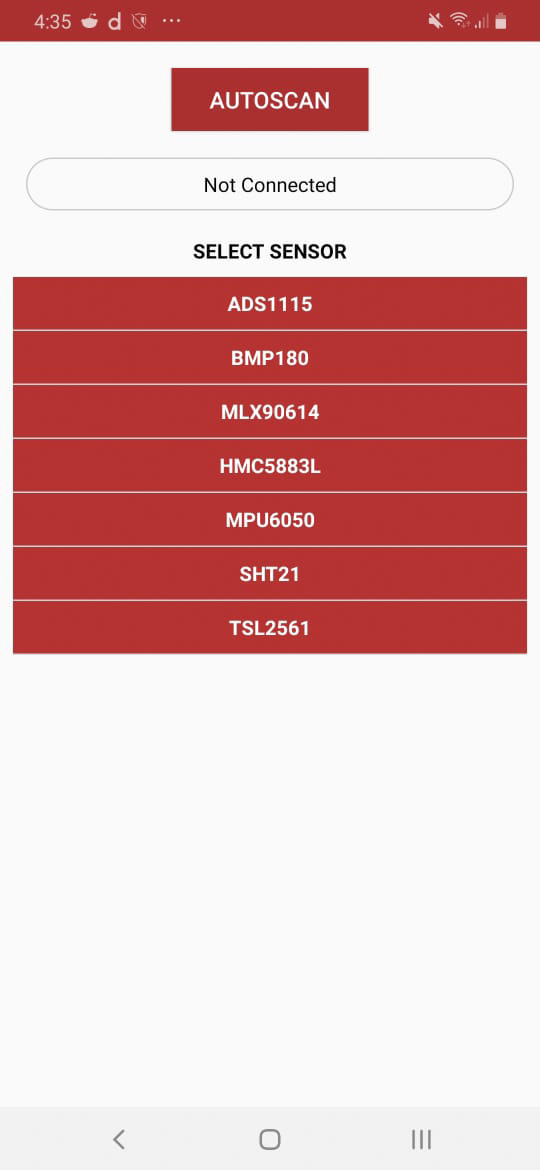

Screenshots

Video Demo

Features

Feature	Description	Status

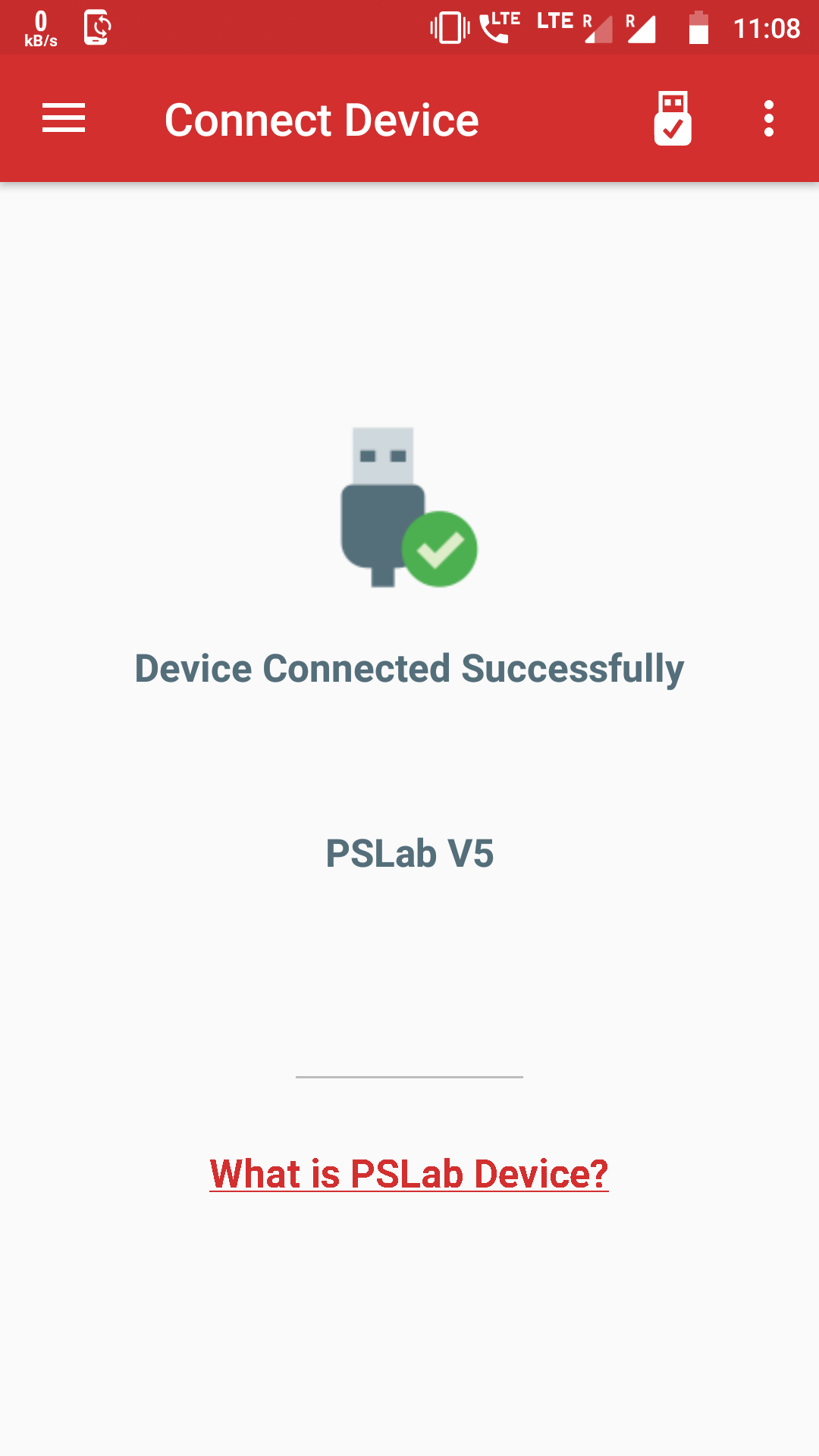

Home Screen	Show status and version of PSLab device	✔️
Instruments	Exposes PSLab instruments like Oscilloscope, etc	✔️

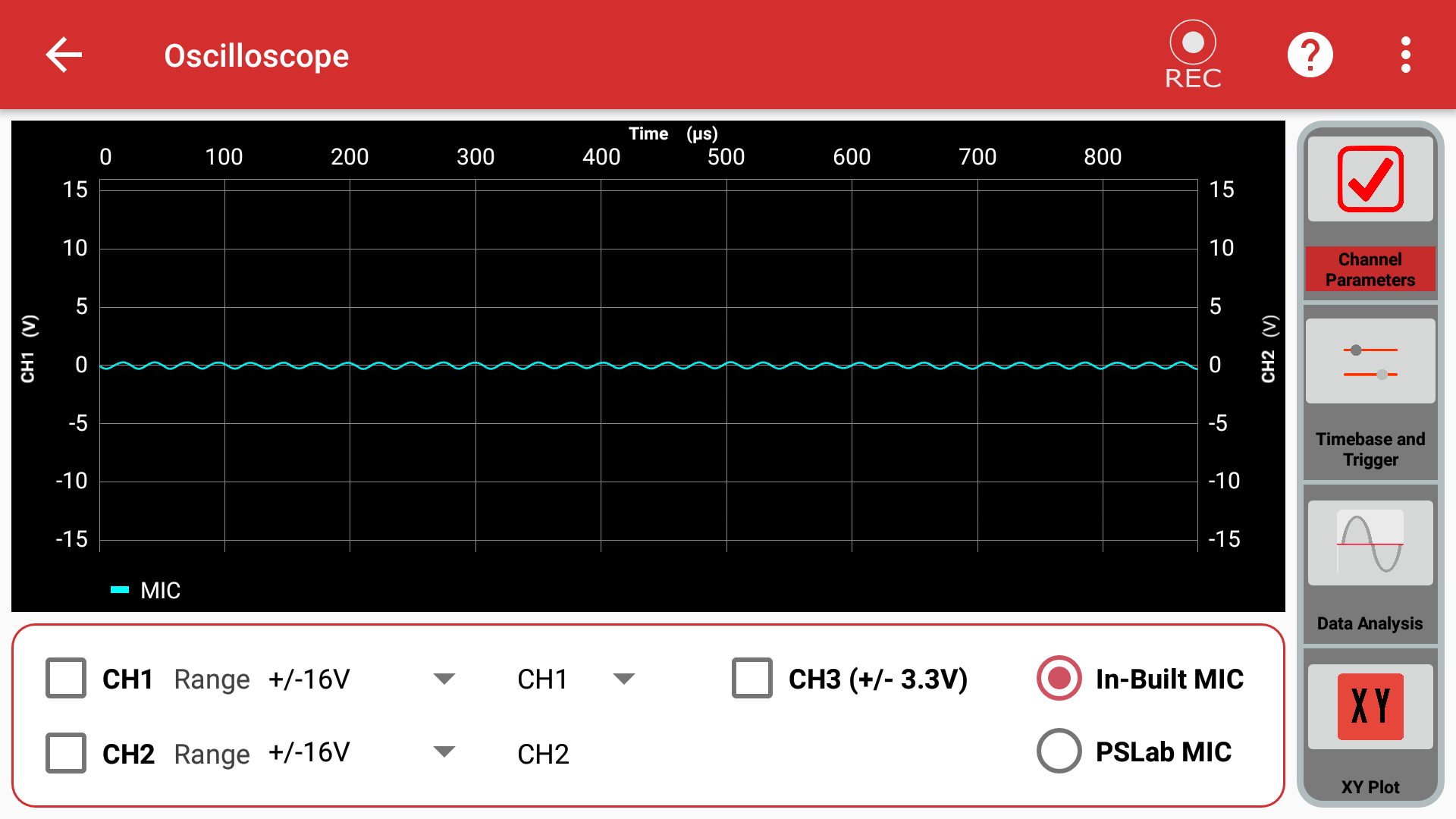

Oscilloscope	Shows variation of analog signals	✔️

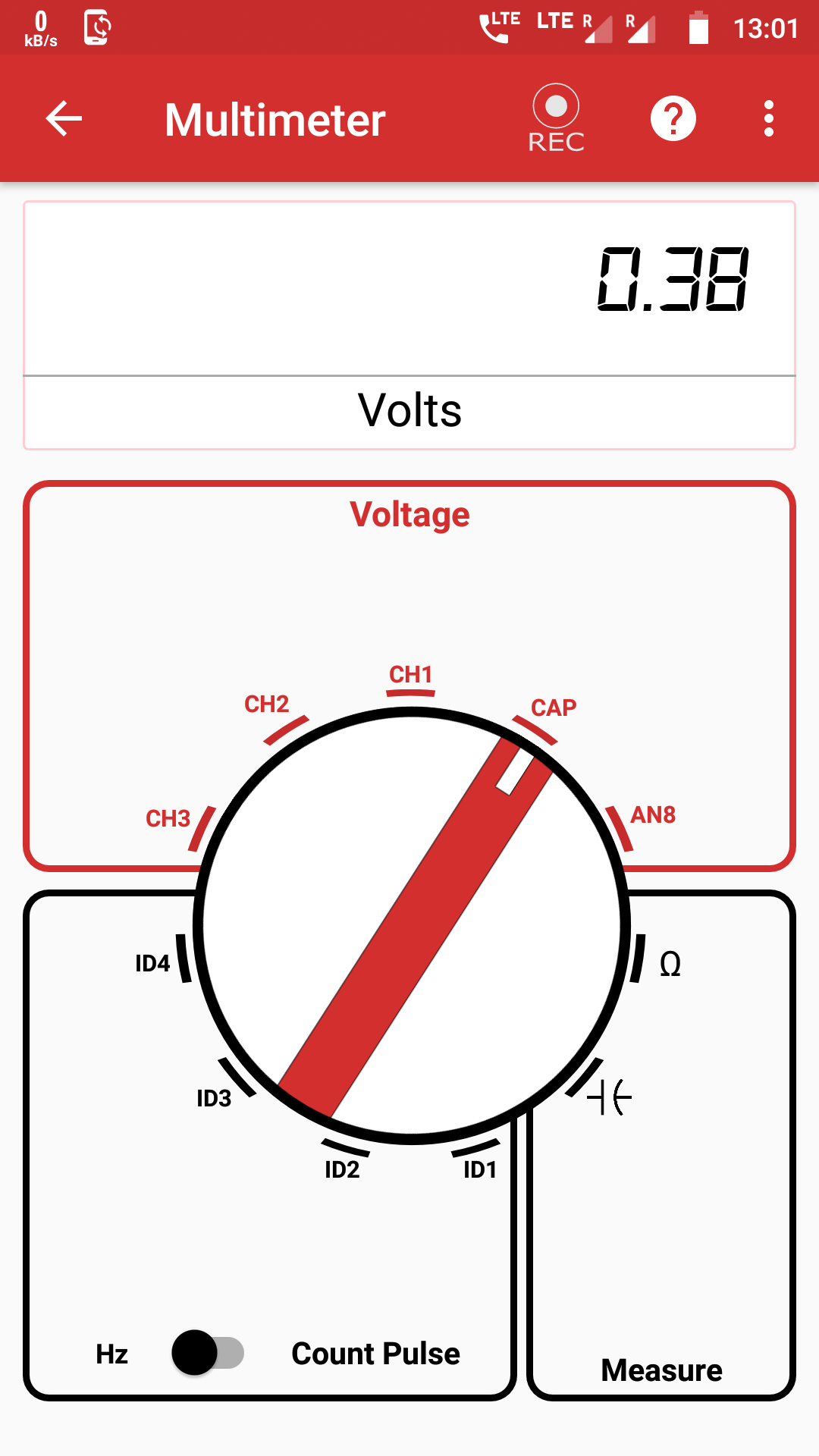

Multimeter	Measures voltage, current, resistance and capacitance	✔️

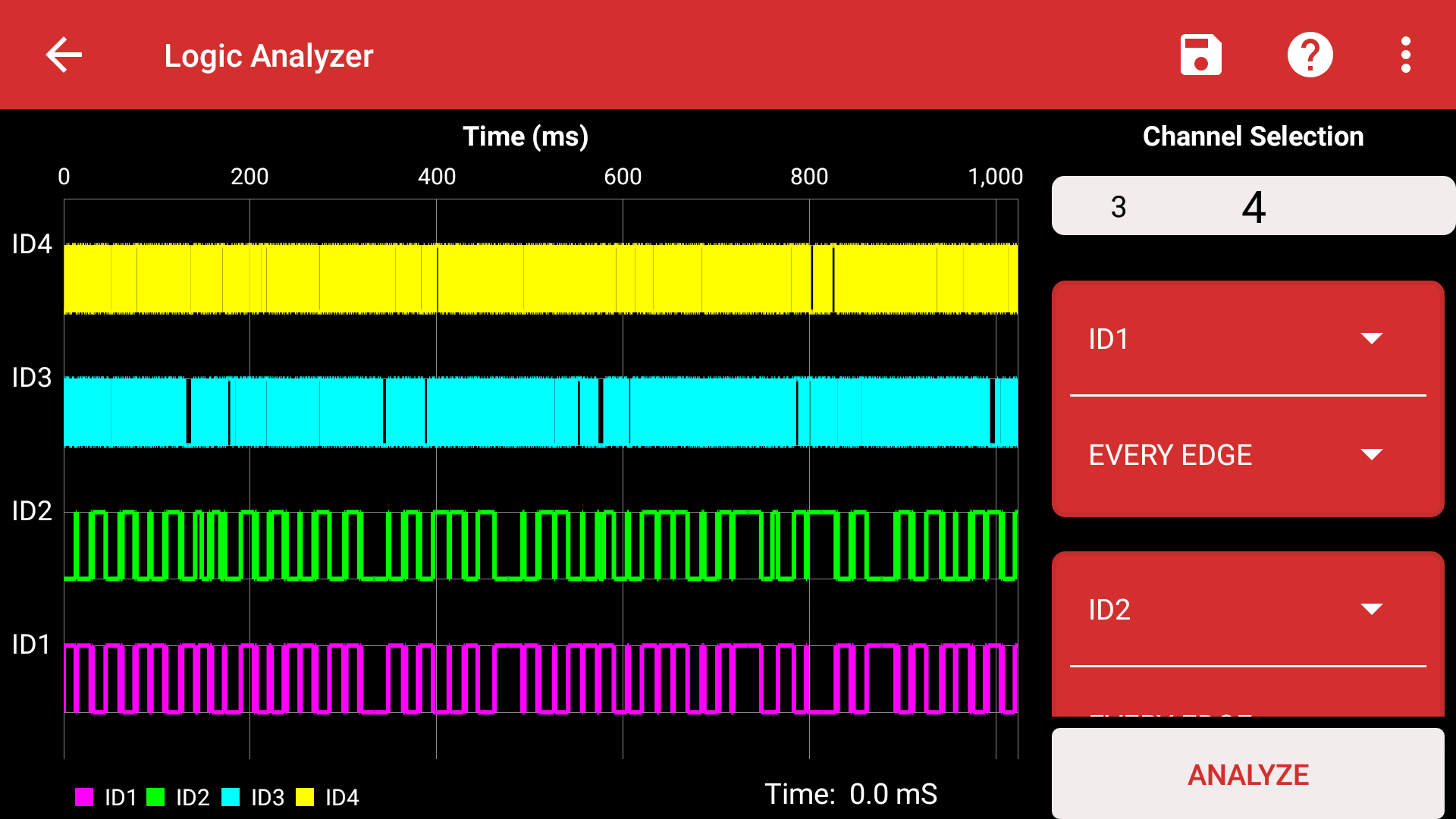

Logical Analyzer	Captures and displays signals from digital system	✔️

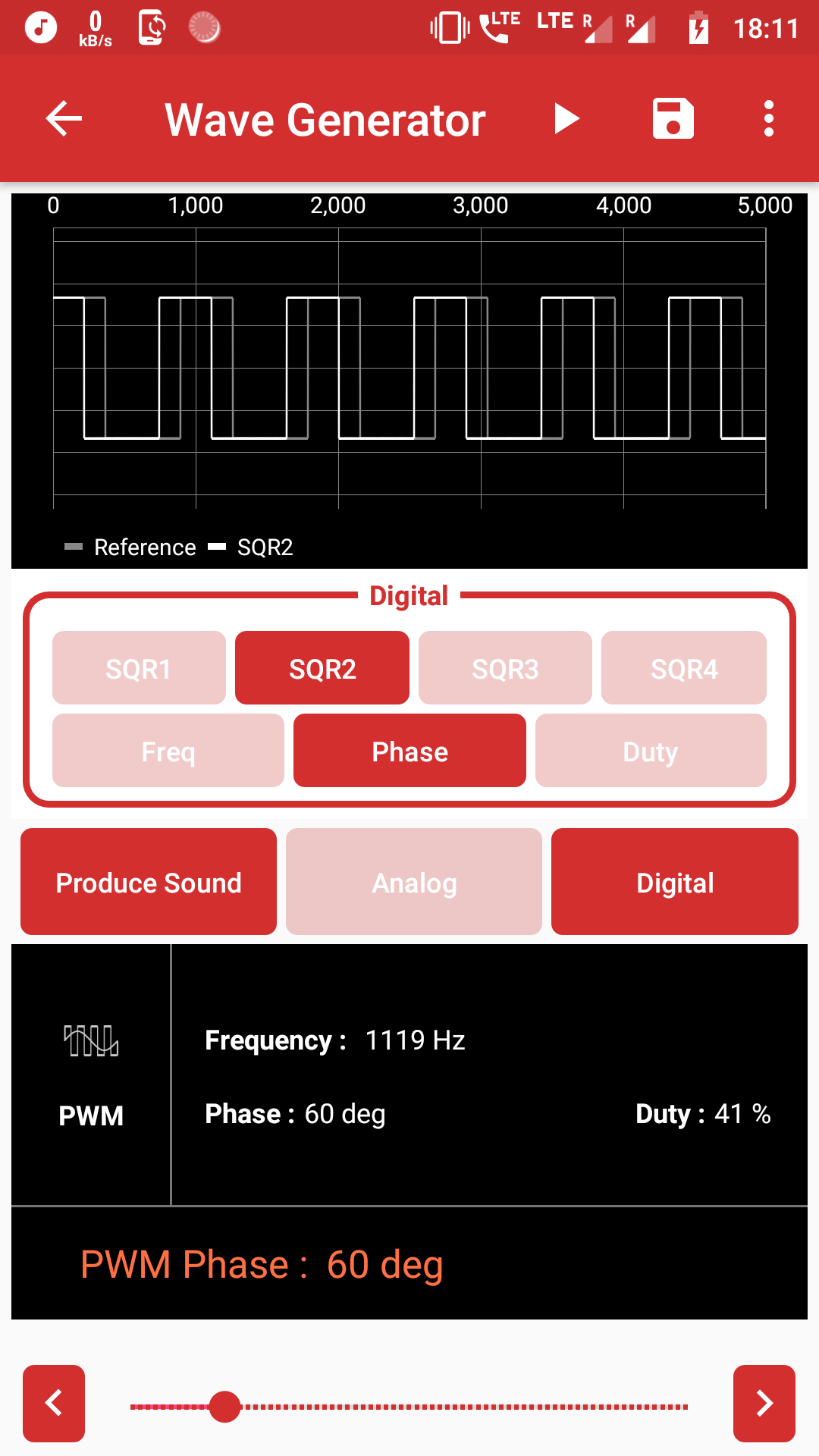

Wave Generator	Generates arbitrary analog and digital waveforms	✔️
Power Source	Generates programmable voltage and currents	✔️

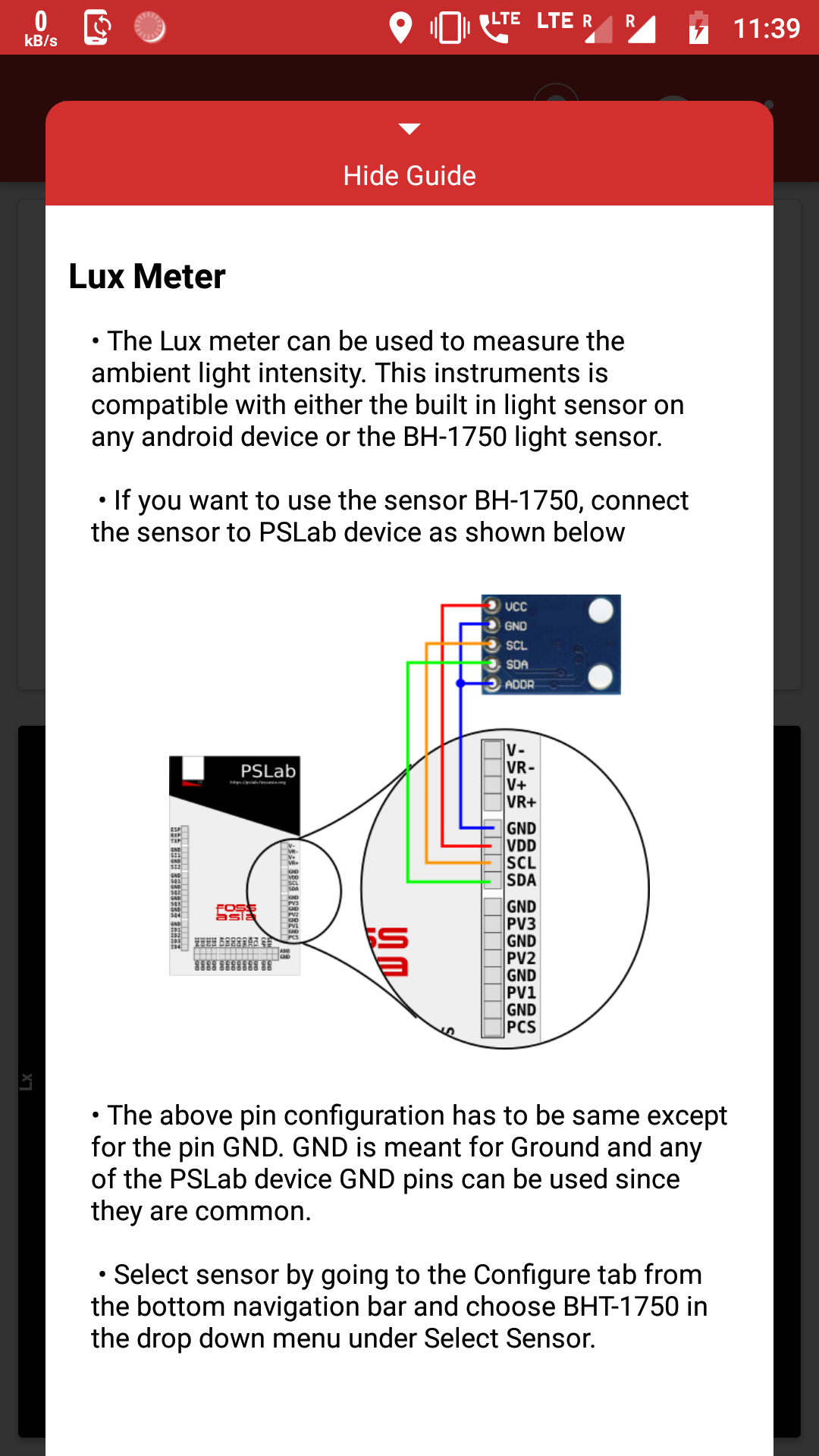

Luxmeter	Measures the ambient light intensity	✔️

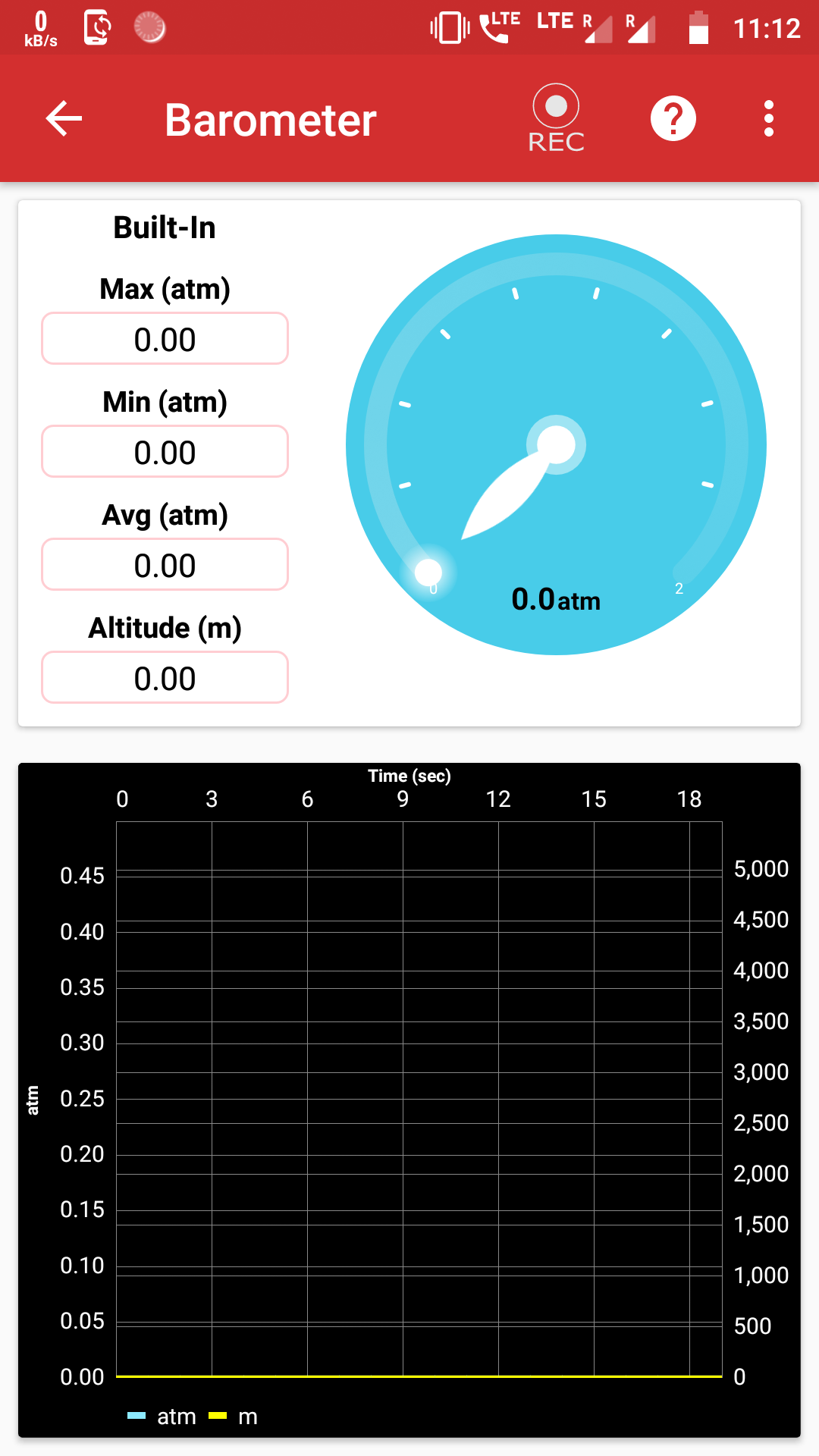

Barometer	Measures the Pressure	✔️

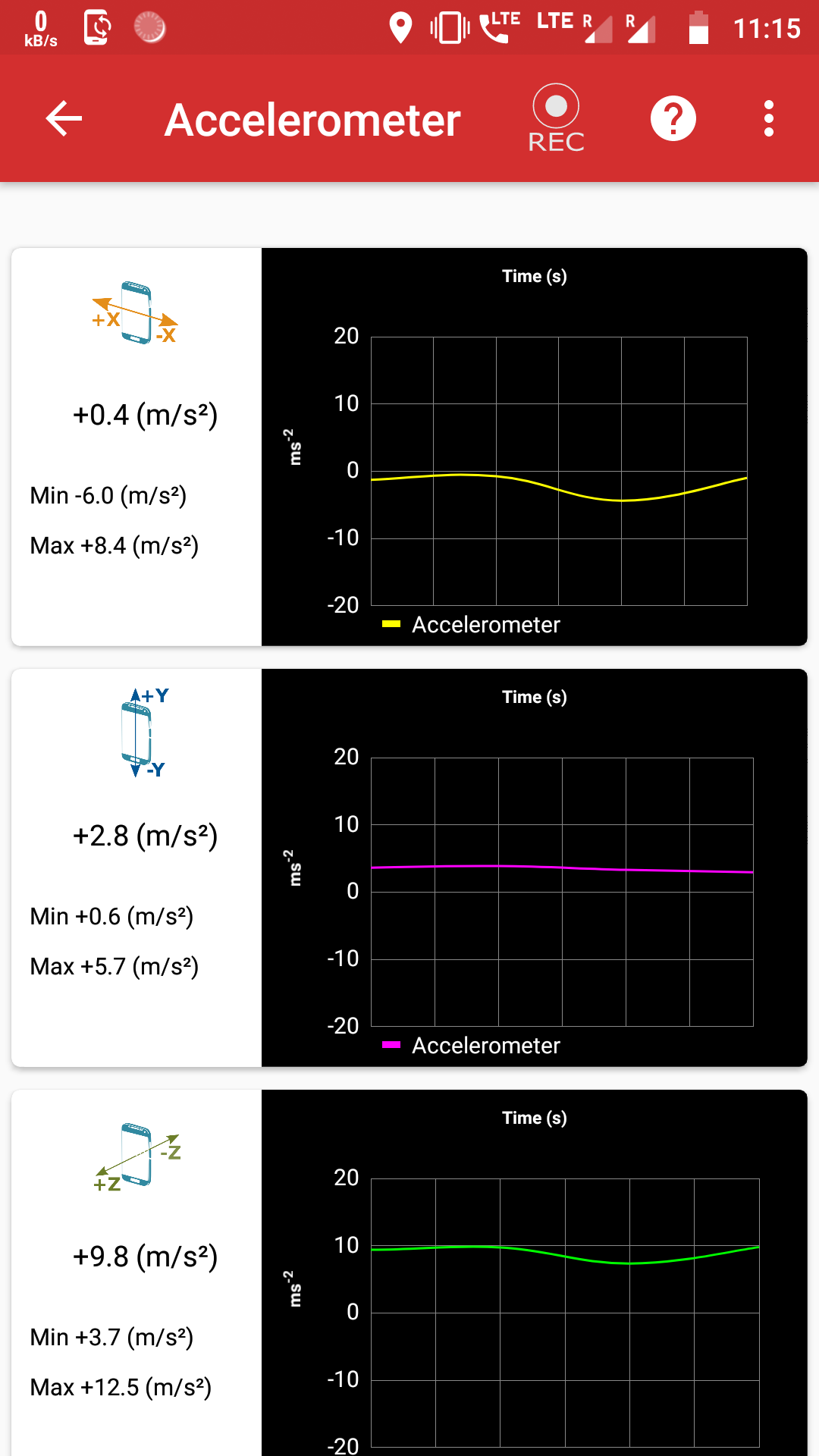

Accelerometer	Measures the acceleration of the device	✔️
Gyrometer	Measures the rate of rotation	✔️

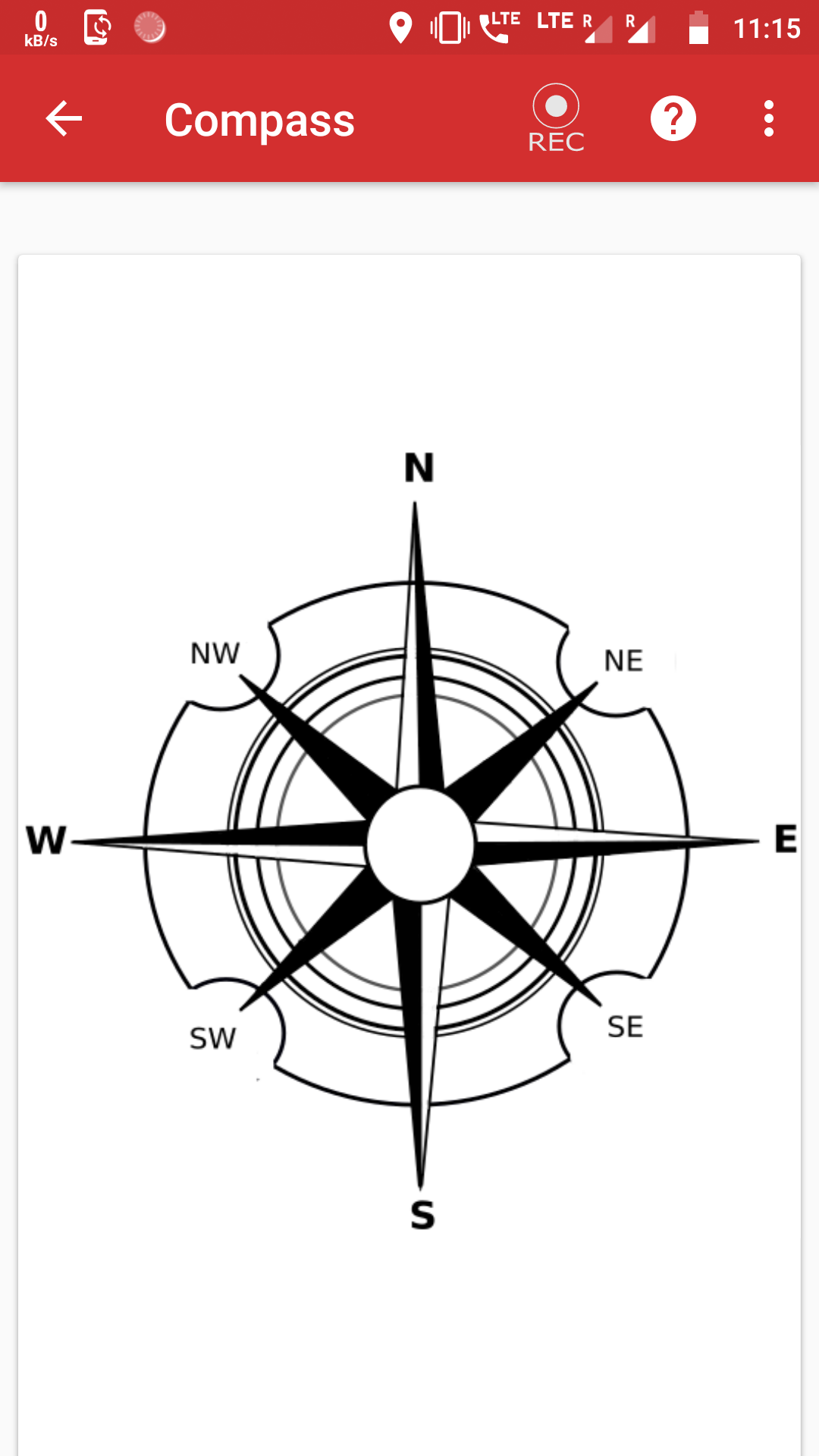

Compass	Measures the absolute rotation relative to earth magnetic poles	✔️

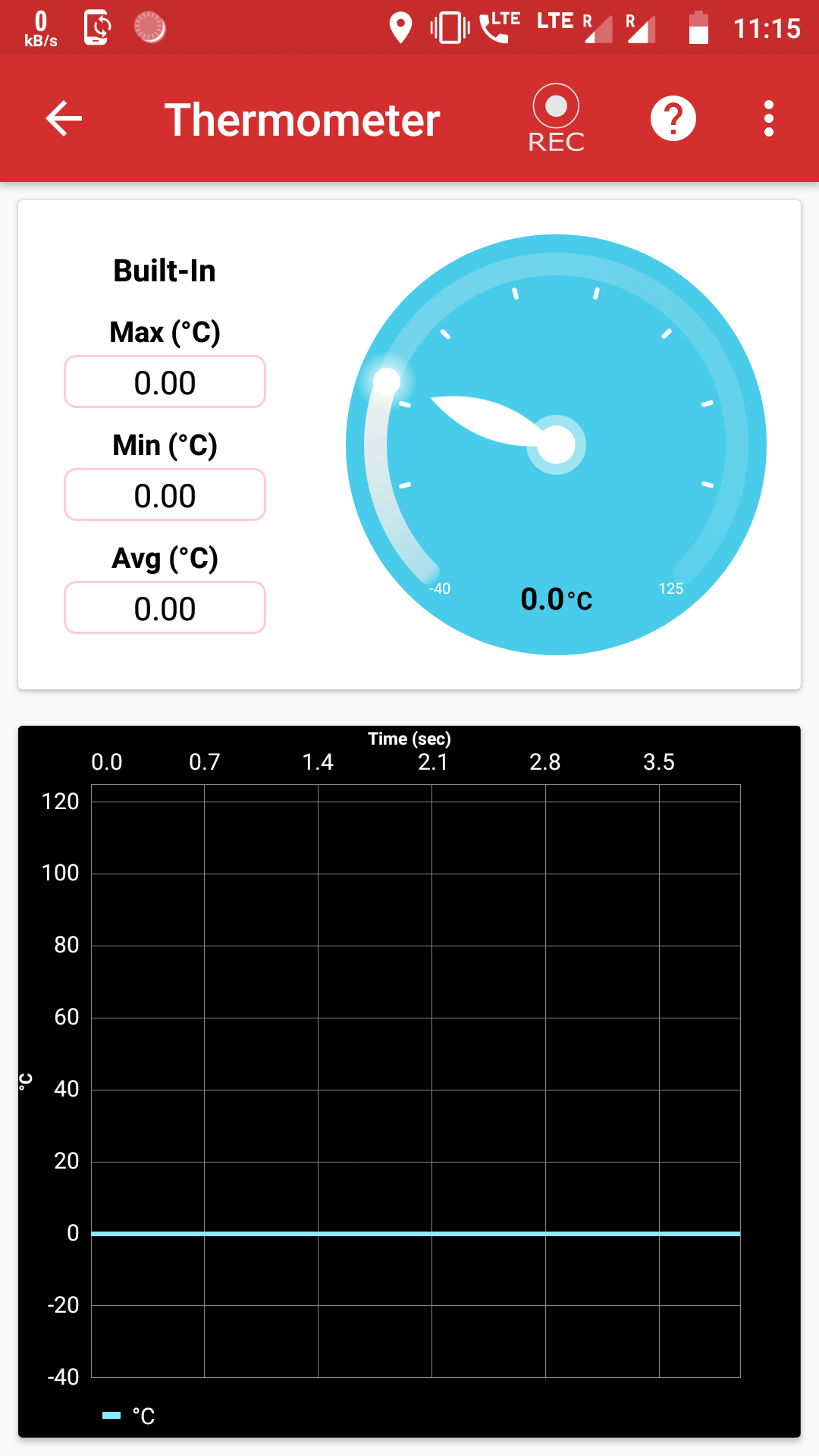

Thermometer	Measures the ambient temperature	✔️

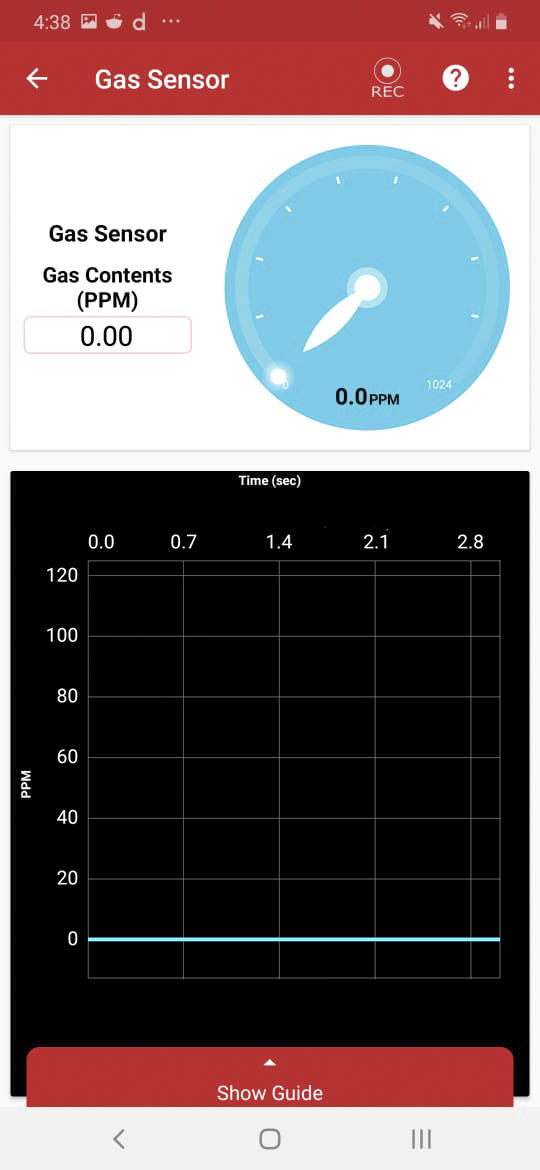

Gas Sensor	Detects gases, including NH3, NOx, alcohol, benzene, smoke and CO2	✔️

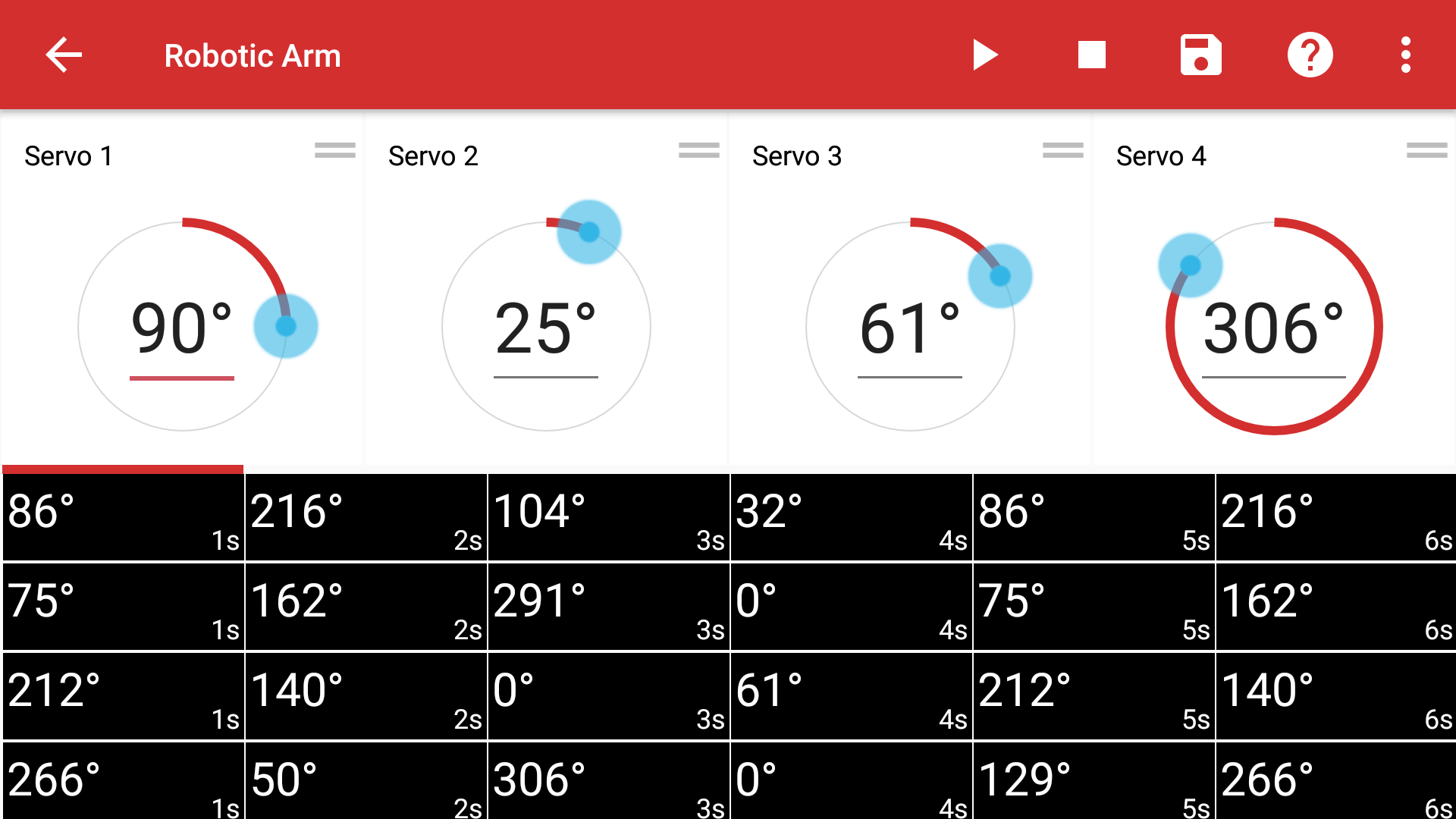

Robotic Arm Controller	Allows to control 4 servo motors of the robotic arm independently	✔️

How to set up the Android app in your development environment

Application Flavors

There are 2 flavors (build variants) of PSLab Android application.

Play Store Flavor

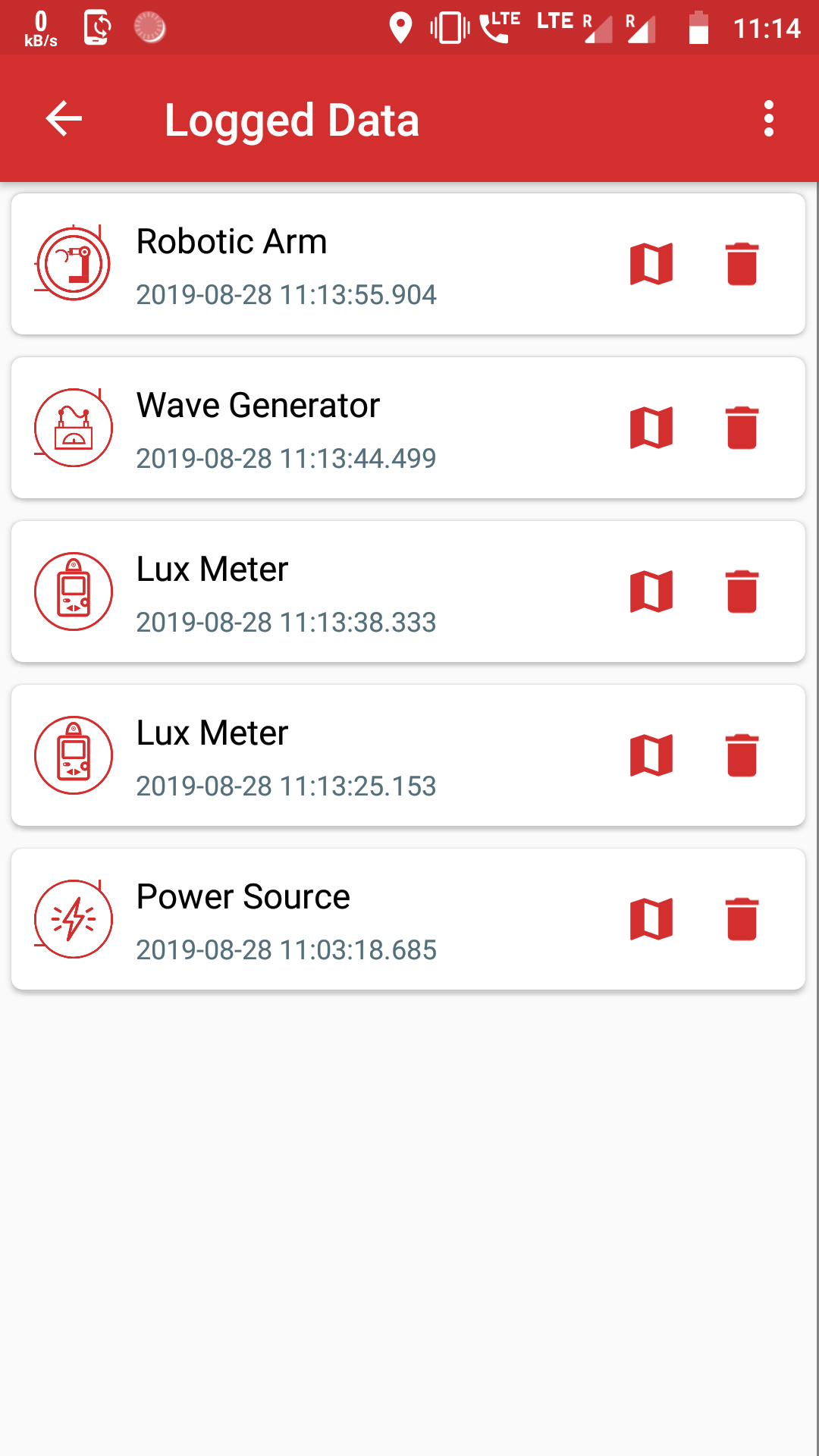

Play Store flavor uses Google Maps to display location stored in logs in Data logger.

Fdroid Flavors

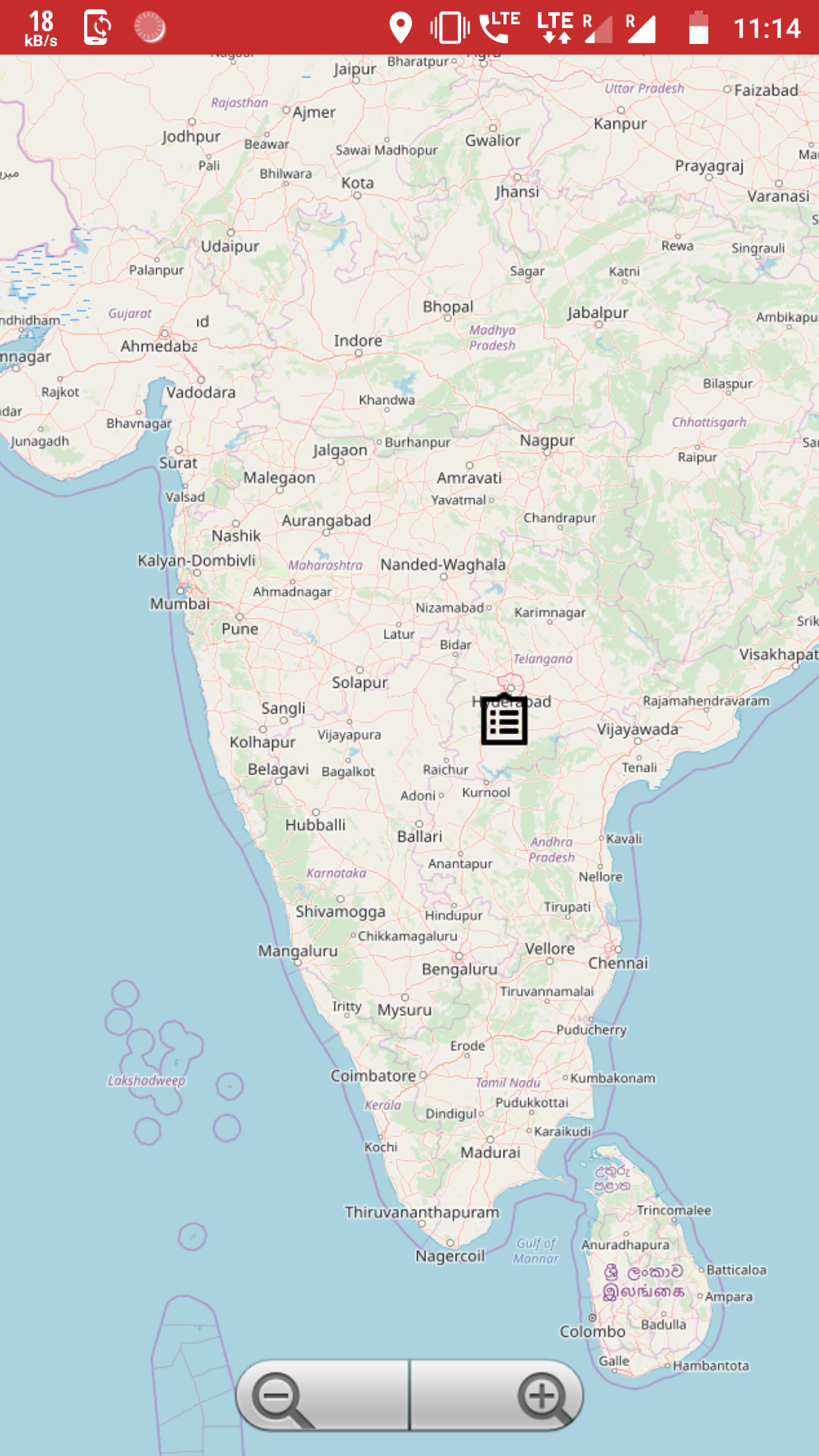

Fdroid flavor uses Open Street Maps to display location stored in logs in Data logger.

Development Setup

Before you begin, you should already have the Android Studio SDK downloaded and set up correctly. You can find a guide on how to do this here: Setting up Android Studio

Setting up the Android Project

For setting up the PSLab Android project you may follow any of the two methods listed below, that is, you may download the repository zip file or you may directly clone the repository to Android Studio.

By downloading the zip file

Download the pslab-android project source. You can do this either by forking and cloning the repository (recommended if you plan on pushing changes) or by downloading it as a ZIP file and extracting it.
Open Android Studio, you will see a Welcome to Android window. Under Quick Start, select _Import Project (Eclipse ADT, Gradle, etc.)To debug over Wi-Fi follow the steps given in this Blog.

Note : If you built your own hardware, change VendorID and/or ProductID in CommunicationHandler.java.

By direct cloning

Open Android Studio, you will see a Welcome to Android window. Under Quick Start, select "check out project from version control".
Select git from the drop down menu that appeared.
Go to the repository and click clone or download button.
From the dropdown that appeared, copy the link.
Paste the URL that you copied and press clone.
Android studio should now begin building the project with gradle.
Once this process is complete and Android Studio opens, check the Console for any build errors.

Note: If you receive a Gradle sync error titled, "failed to find ...", you should click on the link below the error message (if available) that says Install missing platform(s) and sync project and allow Android studio to fetch you what is missing.

Once all build errors have been resolved, you should be all set to build the app and test it.
To Build the app, go to Build>Make Project (or alternatively press the Make Project icon in the toolbar).
If the app was built successfully, you can test it by running it on either a real device or an emulated one by going to Run>Run 'app' or pressing the Run icon in the toolbar.

If you want build apk only, go to Build>Build apk and apk would be build and directory where apk is generated would be prompted by Android Studio.

You can't debug the usual way as PSLab device is connected to micro-USB port through OTG cable. So Android Device is not connected to PC through USB cable.

To debug over Wi-Fi follow the steps given in this Blog.

Note : If you built your own hardware, change VendorID and/or ProductID in CommunicationHandler.java.

Permissions Required

Record_Audio : It is required for oscilloscope to accept inputs from the phone inbuilt microphone. You can find its implementation in AudioJack.java.
Access_Fine_Location and Internet : It is required for use in lux meter and compass to get the coordinates for tagging the data on the map. You can find its implementation in GPSLogger.java.
Write_External_Storage : It is required for storing log files from instruments that can be transferred out for future analysis.
Read_External_Storage : While writing logs in the storage, CSVLogger.java first checks whether there is any CSVLogger directory exist or not and that require this read permission.

Setup to use PSLab with Android App

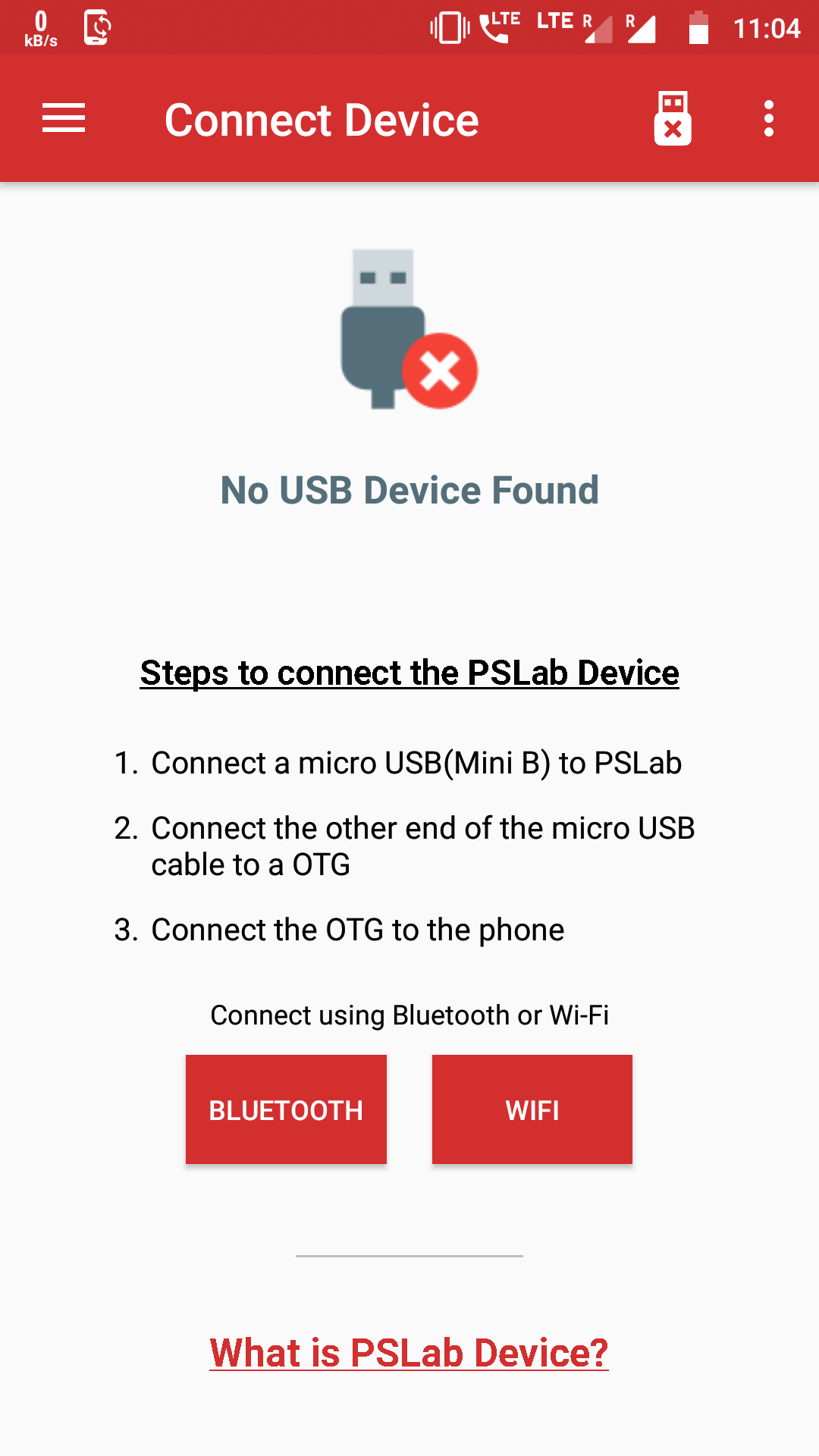

To use PSLab device with Android, you simply need an OTG cable, an Android Device with USB Host feature enabled ( most modern phones have OTG support ) and PSLab Android App. Connect PSLab device to Android Phone via OTG cable. Rest is handled by App itself.

Contributions Best Practices

Code practices

Please help us follow the best practice to make it easy for the reviewer as well as the contributor. We want to focus on the code quality more than on managing pull request ethics.

Single commit per pull request.
Reference the issue numbers in the commit message. Follow the pattern Fixes #<issue number> <commit message>
Follow uniform design practices. The design language must be consistent throughout the app.
The pull request will not get merged until and unless the commits are squashed. In case there are multiple commits on the PR, the commit author needs to squash them and not the maintainers cherrypicking and merging squashes.
If the PR is related to any front end change, please attach relevant screenshots in the pull request description.

How to `git squash`?

As a tip for new developers those who struggle with squashing commits into one, multiple commits may appear in your pull request mostly due to following reasons.

Intentionally adding multiple commit messages after each change without just git adding.
Updating the current branch with the remote so a merge commit takes place.

Despite any reason, follow the steps given below to squash all commits into one adhering to our best practices.

Setup remote to upstream branch if not set before

$ git remote add upstream https://github.com/fossasia/pslab-android.git

Check into the branch related to the pull request

$ git checkout <branch-name>

Perform a soft reset to retain the changes while removing all the commit details

$ git reset --soft upstream/development

Add files to the staging area

$ git add <file paths or "." to add everything>

Create a new commit with a proper message following commit message guidelines

$ git commit -m "tag: commit message"

If you have already made a pull request

$ git push -f origin <branch-name>

Branch Policy

We have the following branches

development All development goes on in this branch. If you're making a contribution, you are supposed to make a pull request to development. Make sure it passes a build check on Travis.
master This contains the stable code. After significant features/bugfixes are accumulated on development, we move it to master.
apk This branch contains automatically generated apk file for testing.

Code style

Please try to follow the mentioned guidelines while writing and submitting your code as it makes easier for the reviewer and other developers to understand.

While naming the layout files, ensure that the convention followed is (activity/fragment) _ (name).xml like activity_oscilloscope.xml , fragment_control_main.xml .
Name the views and widgets defined in the layout files as (viewtype/widget) _ (fragment/activity name) _ (no. in the file) like spinner_channel_select_la1 , button_activity_oscilloscope1 .
The activity/fragment file name corresponding to the layout files should be named as (activity/fragment name)(activity/fragment).java like ChannelsParameterFragment.java corresponding to the layout file fragment_channels_parameter.xml .
The corresponding widgets for buttons, textboxes, checkboxes etc. in activity files should be named as (viewtype/widget)(fragment/activity name)(no. in the file) like spinnerChannelSelect1 corresponding to spinner_channel_select1 .

Developers

Maintainers

The project is maintained by

Padmal (@CloudyPadmal)
Mario Behling (@mariobehling)
Lorenz Gerber (@lorenzgerber)
Wei Tat (@cweitat)
Wai Gie (@woshikie)

Alumni

Neel Trivedi (@neel1998)
Akarshan Gandotra (@akarshan96)
Asitava Sarkar (@asitava1998)
Vivek Singh Bhadauria (@viveksb007)
Avjeet (@Avjeet)
Abhinav (@abhinavraj23)
Harsh (@harsh-2711)
Yatri (@yatri1609)

License

This project is currently licensed under the Apache License 2.0. A copy of LICENSE is to be present along with the source code. To obtain the software under a different license, please contact FOSSASIA.
