Readme
khu_sensor_65n
khu_sensor is a processor that communicates with MPR121 and ADS1292 and sends filtered HoD & ECG data to PC through RS232.
khu_sensor GDSII
Final Design Specification
| Spec | Value |
|---|---|
| Technology | S65nm |
| Operating Condition | SS 1.08V 125°C (Worst) FF 1.32V -40°C (Best) |
| Main Clock | 111 MHz |
| Slack | 0.2440 ns(Worst) 2.9788 ns(Best) |
| Die Area | 1.4mm x 1.4mm (56 I/O PAD) |
| Design Area | 1288408 µm^2 |
| Power | 5.9253 mW |
01_RTL_Synthesis
Compile
Re-time
Clock-Gating
Design Performance
| Spec (SS 1.08V 125°C) | Compile | Re-time | Clock-Gating |
|---|---|---|---|
| Slack (ns) | 0.0 | 0.0 | 4.74 |
| Design Area (µm^2) | 107706.88 | 106533.76 | 100437.12 |
| Power (mw) | 228.0738 | 228.1706 | 5.9253 |
03_Physical_Synthesis
00_read_design
01_floorplan

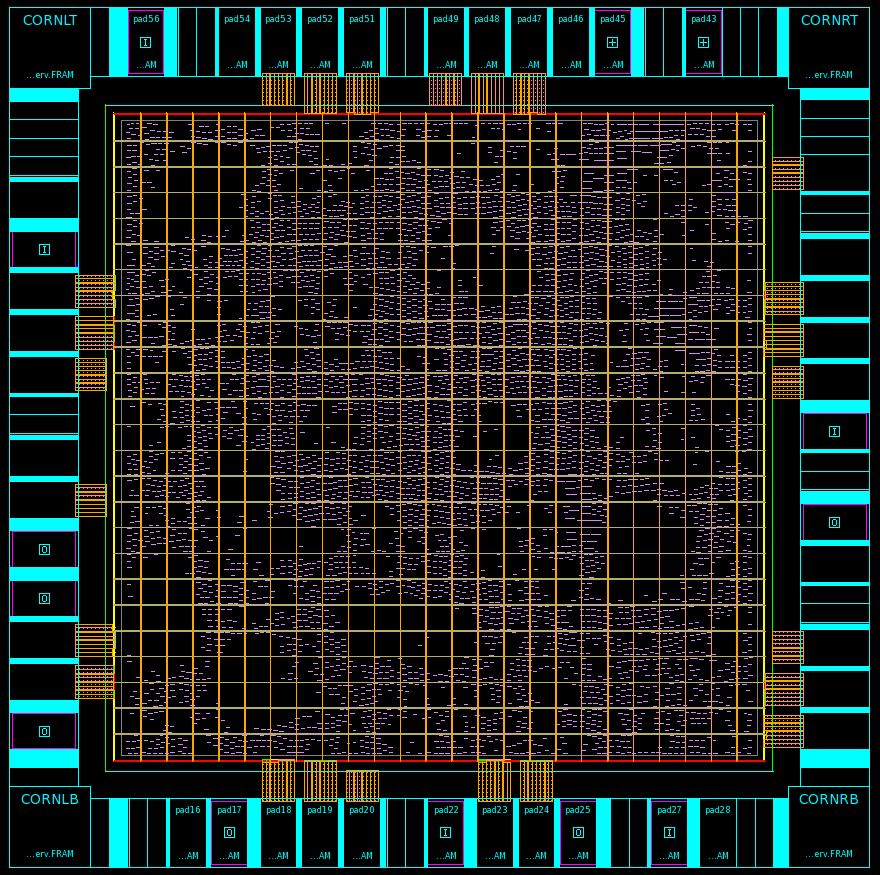

02_powerplan

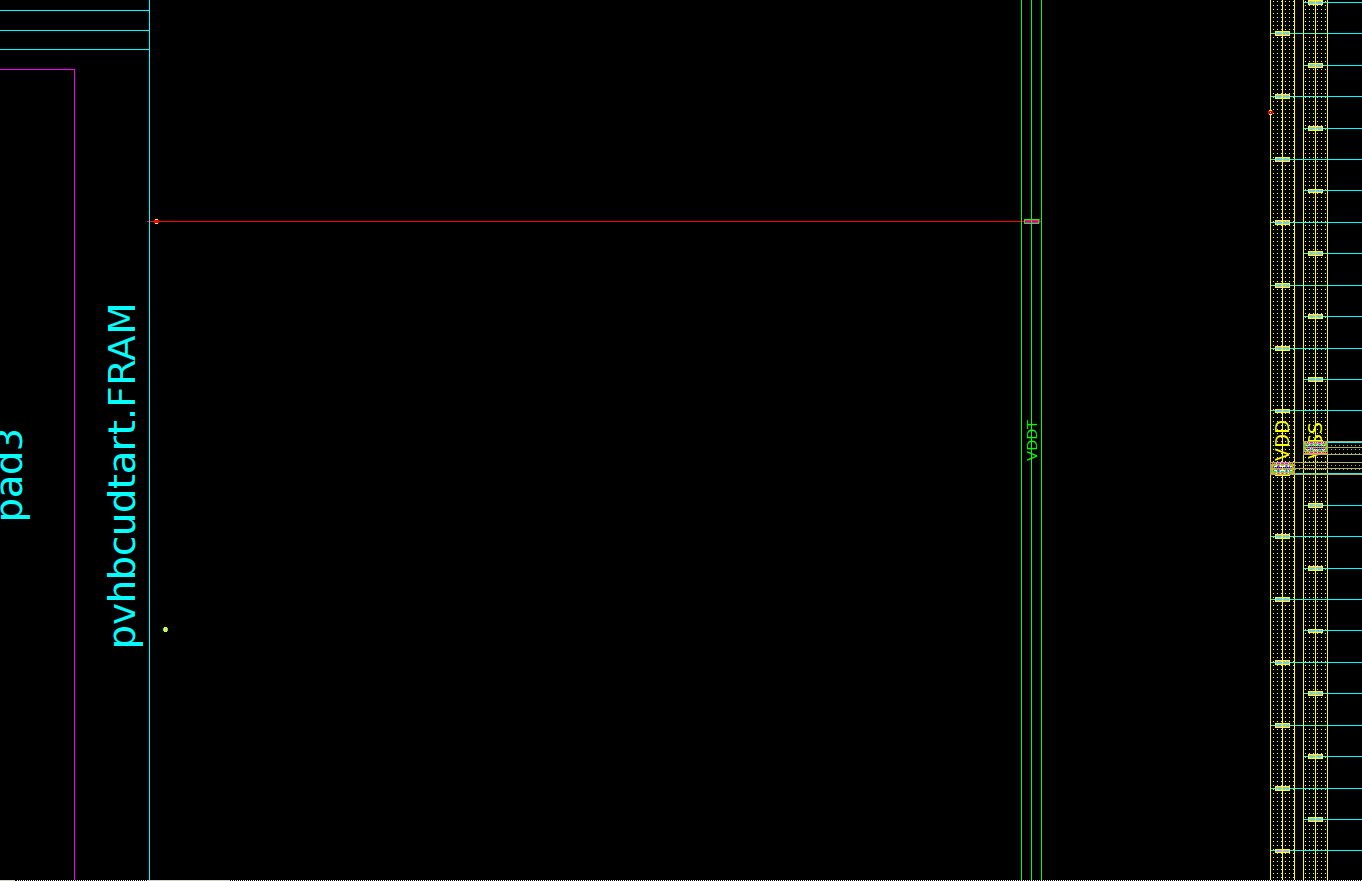

VDD, VSS, VDDT, CLTCH Check
FILLTIE Cell (Prevent latchup)
03_place_opt
04_clock_opt_cts
05_clock_opt_post_cts
06_route
07_route_opt
Clock Shielding
ANTENNA DIODE Cell
TIE HIGH Cell
08_chip_finish
Layer
DECAP Cell
FILLER Cell
GDSII
