KicadJE_SympleSequencer

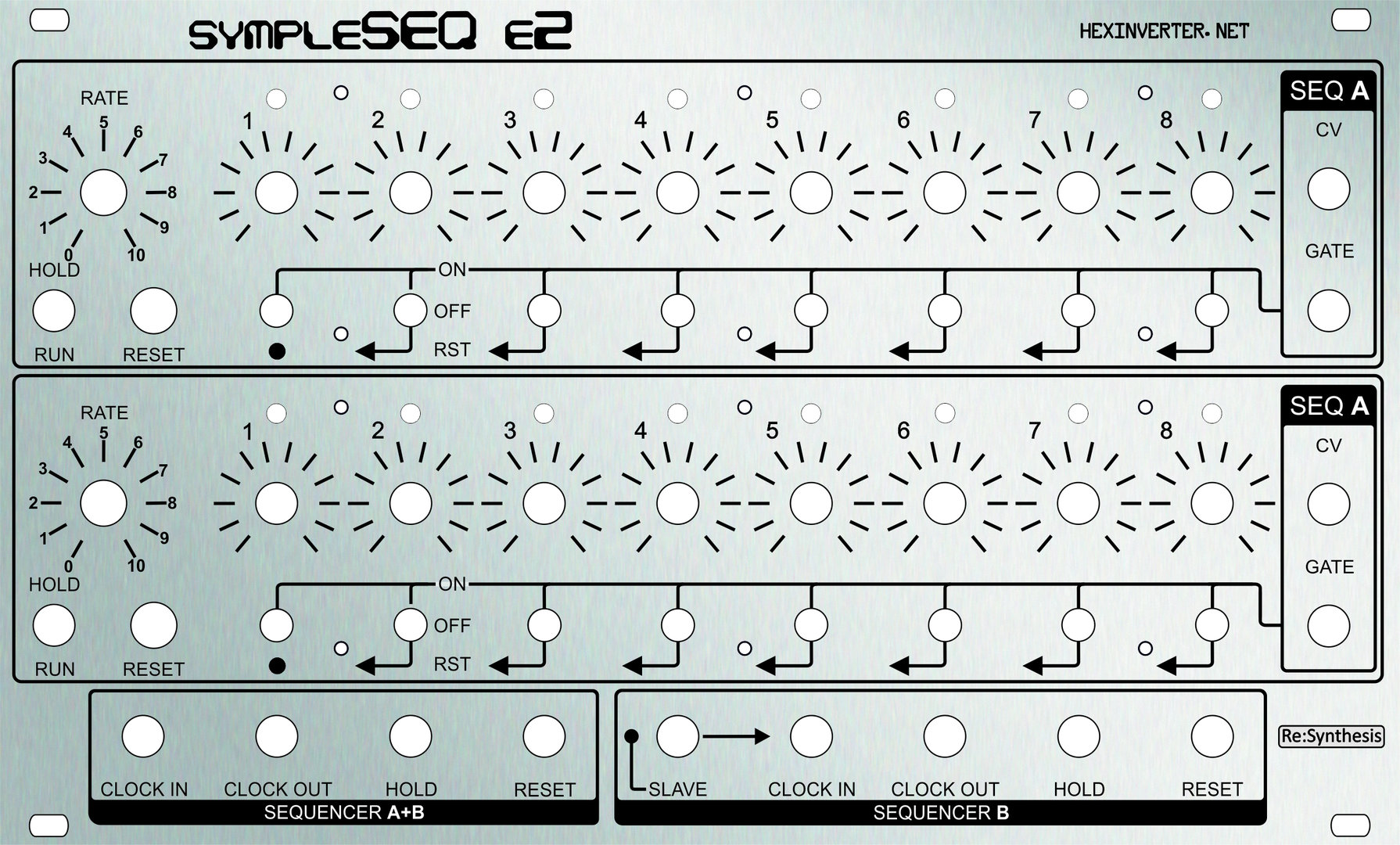

Designed to fit the faceplate of a Hexinverter SympleSeq E2 faceplate from Re:Synthesis

Purpose

1 - Match Hexinverter sch with Resynthesis panel

Rev 2

Status - Mouted - testing

Initial

Stage	Detail	Status
create material	sch/pcb	OK
	gerber	OK
production		ok
	produced	ok
	delivered	ok

Preliminary validation

Test	Detail	Status
Initial Inspection	clock board	ok
Initial Inspection	control board	ok
Initial Technical Test		100n capacitors in series w output is replaced w 2k
Initial Product Test		100n C101 capacitor parallel w 150k
Initial Product Test		ongoing

Secondary validation

Test	Detail	Status
Product Test	CV
Product Test	Gate
Product Test	Clock internal
Product Test	Clock in
Product Test	Clock out
Product Test	Reset In/Button
Product Test	Hold In/Button
Quality	CV
Quality	Gate
Long Term Product Test		Good
Power Draw

Errata

Errata - clock

Series capacitors not working with reset (overloads CD4017)

replace w resistors (2k and 9k1 tested and working fine)

Hold not working

Either swap R206 100k pullup with 22k-47k and R212 10k with 100k or tie hold to +12v works

Errata - control

Issues and Notes

Clock

1 - diodes for hold input
2 - diodes for reset input
3 - Gate AND Clock for gate output to reset between gates - consider making a phase adjust for shorter/longer gates
4 - OPEN resistor from Internal CLK to 4017 clock in (for use with Sequencer A that does not take slave clk input)

Control

1 - switches still reversed
2 - diode missing for reset
3 - consider moving resistors from clk module to control as there is plenty of room

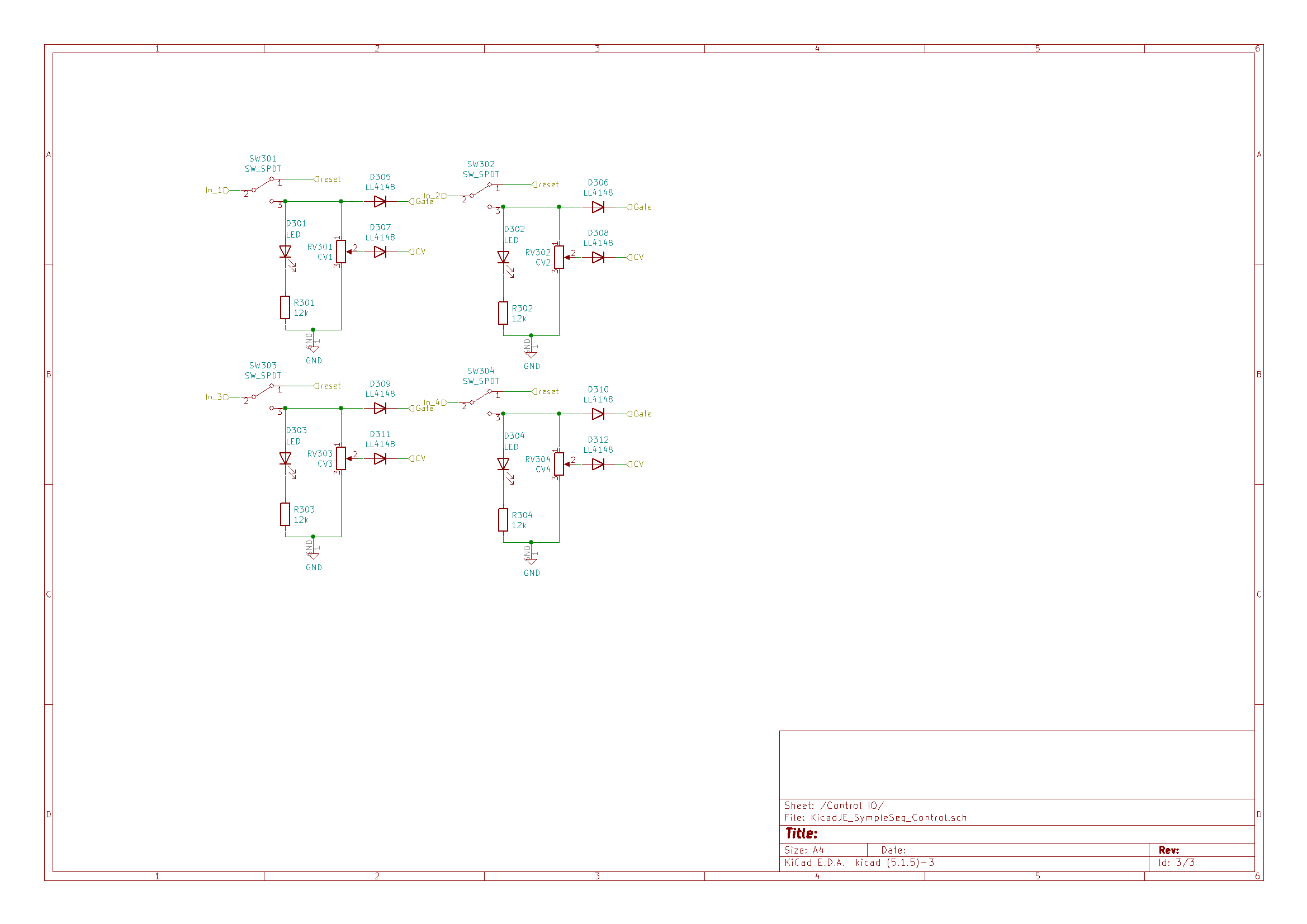

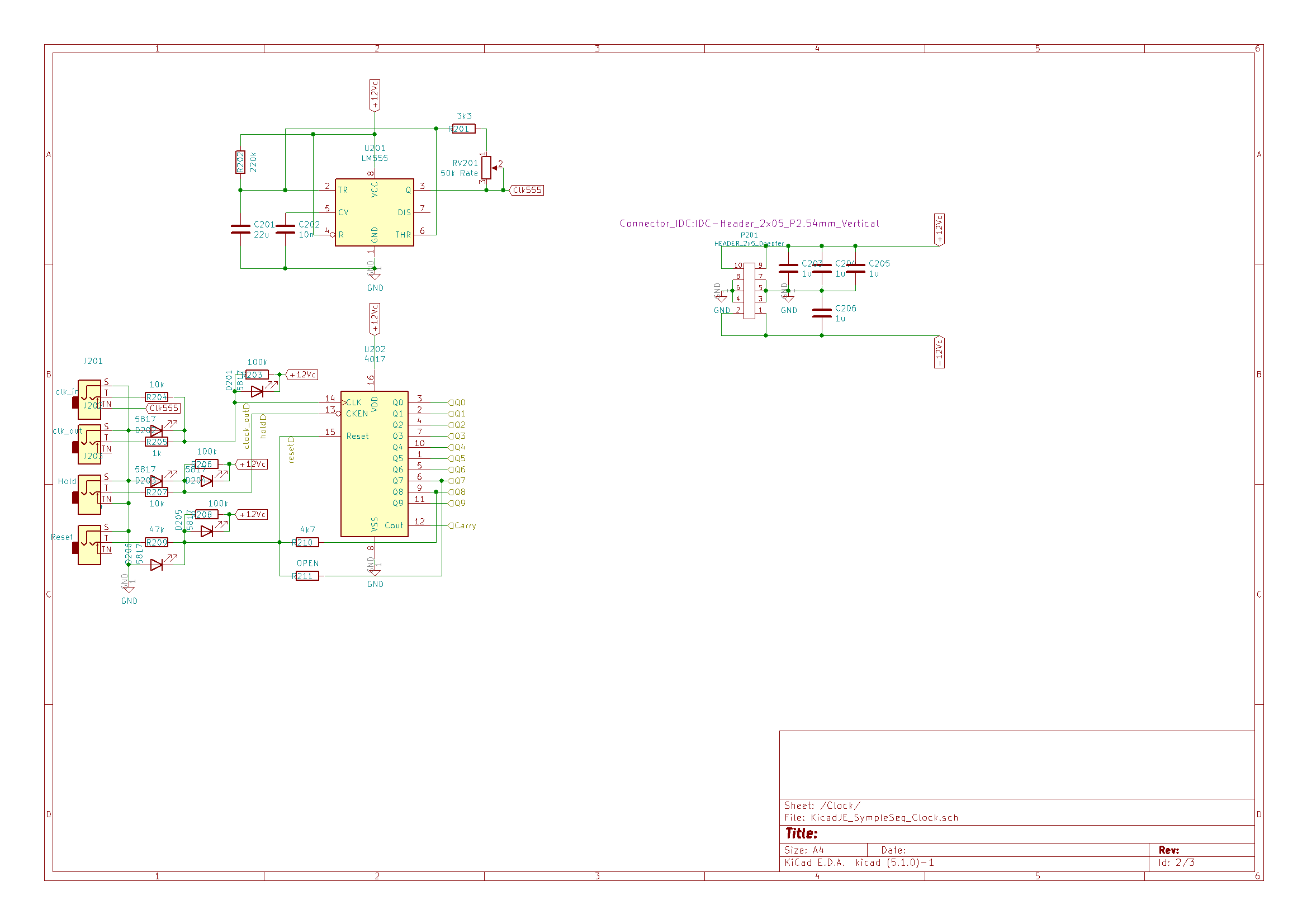

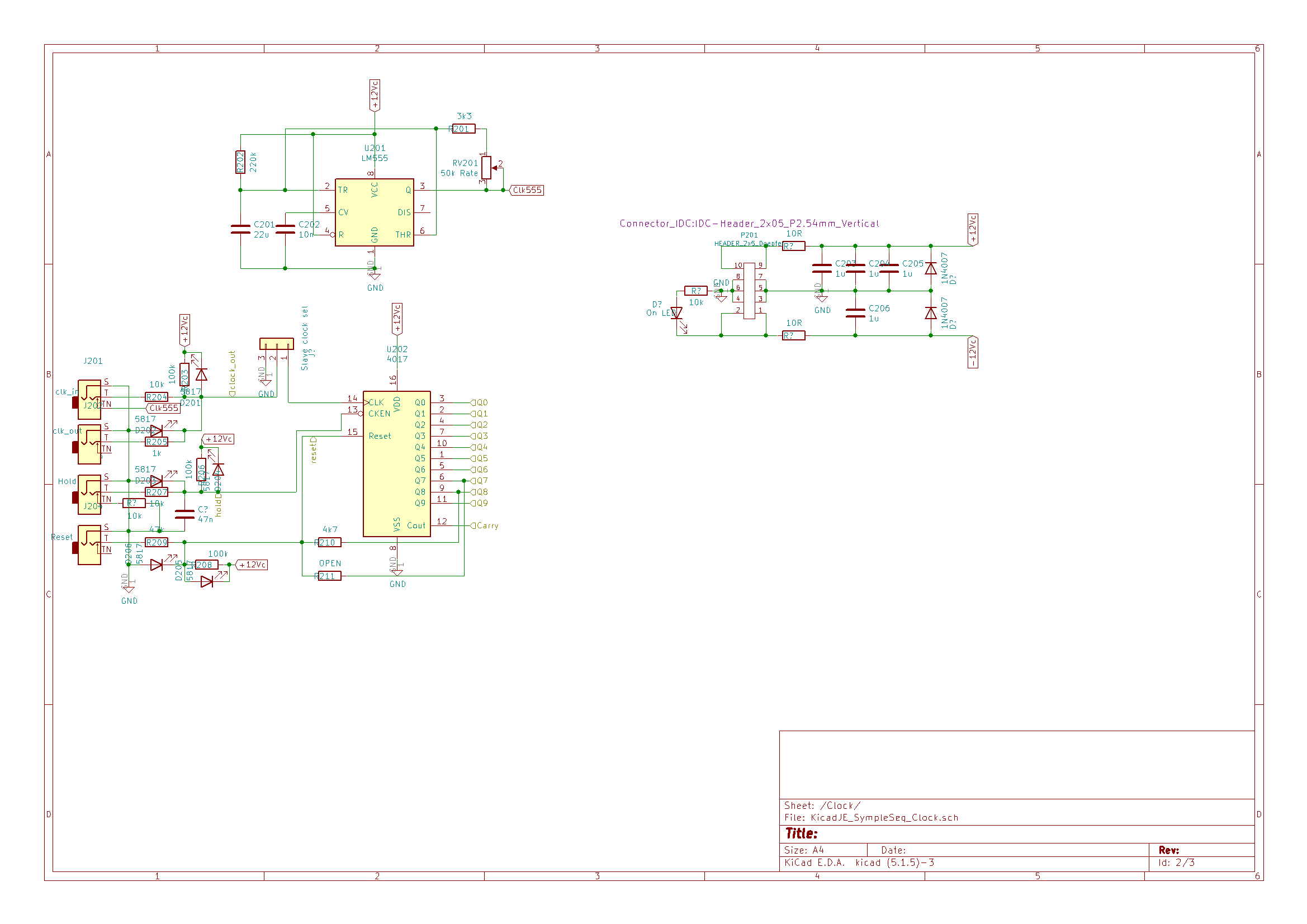

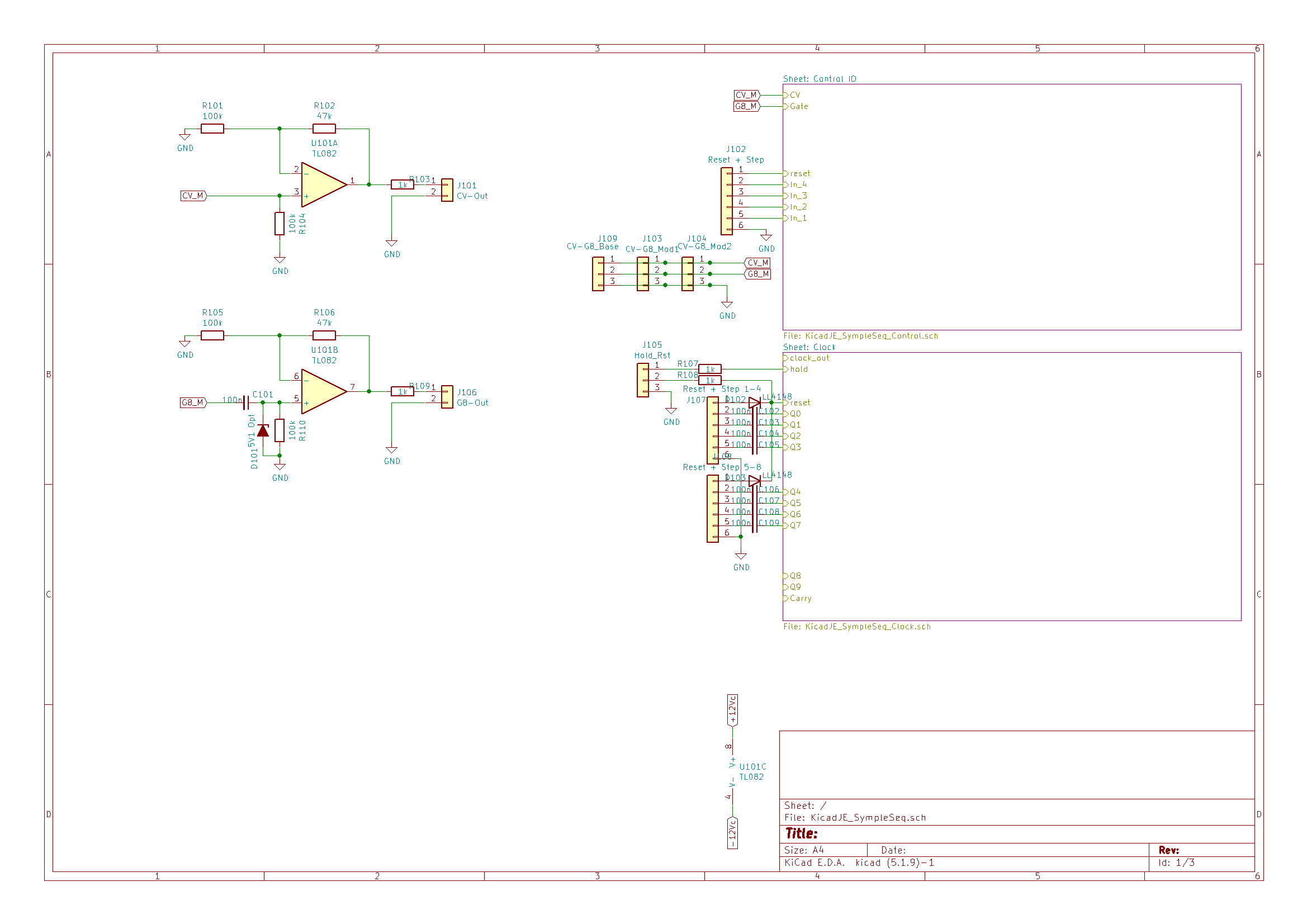

Schematics

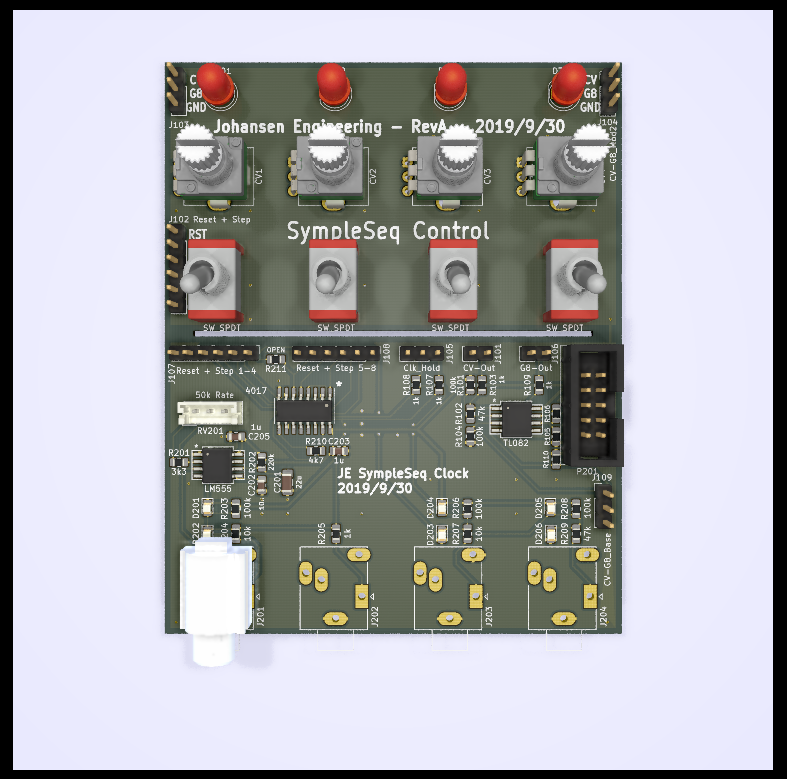

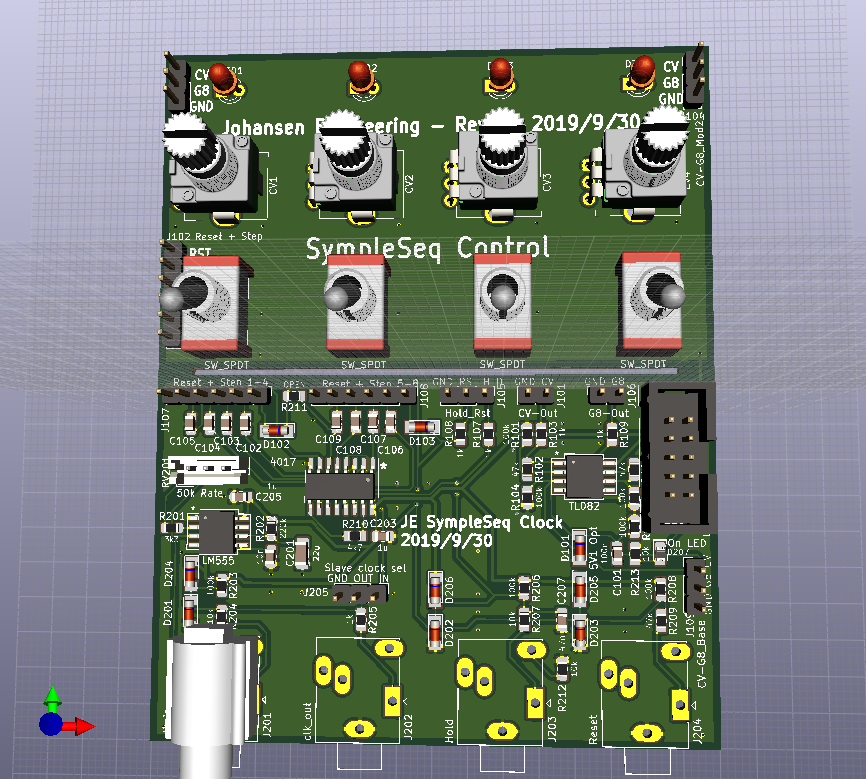

Pictures

Rev 1

Status - Installed in rack - tweaking

Initial

Stage	Detail	Status
create material	sch/pcb	OK
	gerber	OK
production		ok
	produced	ok
	delivered	ok

Preliminary validation

Test	Detail	Status
Initial Inspection	clock board	ok - the jacks are 0,5-1mm too far away from the edge
Initial Inspection	control board	ok - see errata 3
Initial Technical Test		ok
Initial Product Test		ok

Secondary validation

Test	Detail	Status
Product Test	CV	ok
Product Test	Gate	See errata 4
Product Test	Clock internal	ok - a bit slow
Product Test	Clock in	ok
Product Test	Clock out	ok - could need a buffer
Product Test	Reset In/Button	ok
Product Test	Hold In/Button	ok - needs debounce
Quality	CV	Good
Quality	Gate	No good - needs shorter pulses
Long Term Product Test		Good
Power Draw
