Operator 101

Bootstrapping a Kubernetes operator

In the following, I'm showing you how to bootstrap a Kubernetes operator using the Operator SDK. The goal is to bootstrap an operator (custom resource and controller) that monitors a namespace for usage of the default service account. We call this operator the no-defaults-policy operator, and its main task is to flag pods using the default service account (a security anti-pattern). Strictly speaking, this is not the best use case for an operator since it's not really about the life cycle management of an app: a number of alternative solutions, from a simple controller to a shell script using kubectl would do the same job. However, since it's conceptually easy to understand what the operator's job is and the custom resources gives us a nice way to configure the actual behavior, the policy enforcement—for example, annotating the pod or a more extreme measure like deleting its owner, such as a deployment—we do it nevertheless. Also, others also seem to be fine with applying the operator pattern in such a context, see for example the rbac-manager/. May the Kube gods have mercy on us.

Table of contents:

• Setting the scene
• Deploying the operator locally
• Deploying the operator into a cluster
• Development of the custom controller
• References

Setting the scene

All the business below goes on in a dedicated namespace, we call it ndp-demo:

$ kubectl create ns ndp-demo

STEP 1—As a preparation, install the Operator SDK and then bootstrap the operator like so:

$ cd $GOPATH/src/github.com/mhausenblas
$ operator-sdk new nodefpol-operator
$ cd nodefpol-operator

As a result we should see something like this:

See also terminal output of above command.

STEP 2—Next, we add a new API for the custom resource NoDefaultsPolicy:

$ pwd
/Users/mhausenblas/Dropbox/dev/work/src/github.com/mhausenblas/nodefpol-operator

$ operator-sdk add api --api-version=nodefpol.k8space.io/v1alpha1 --kind=NoDefaultsPolicy

As a result we should see something like this:

See also terminal output of above command.

STEP 3—Now we add a new controller that watches for NoDefaultsPolicy resources:

$ operator-sdk add controller --api-version=nodefpol.k8space.io/v1alpha1 --kind=NoDefaultsPolicy

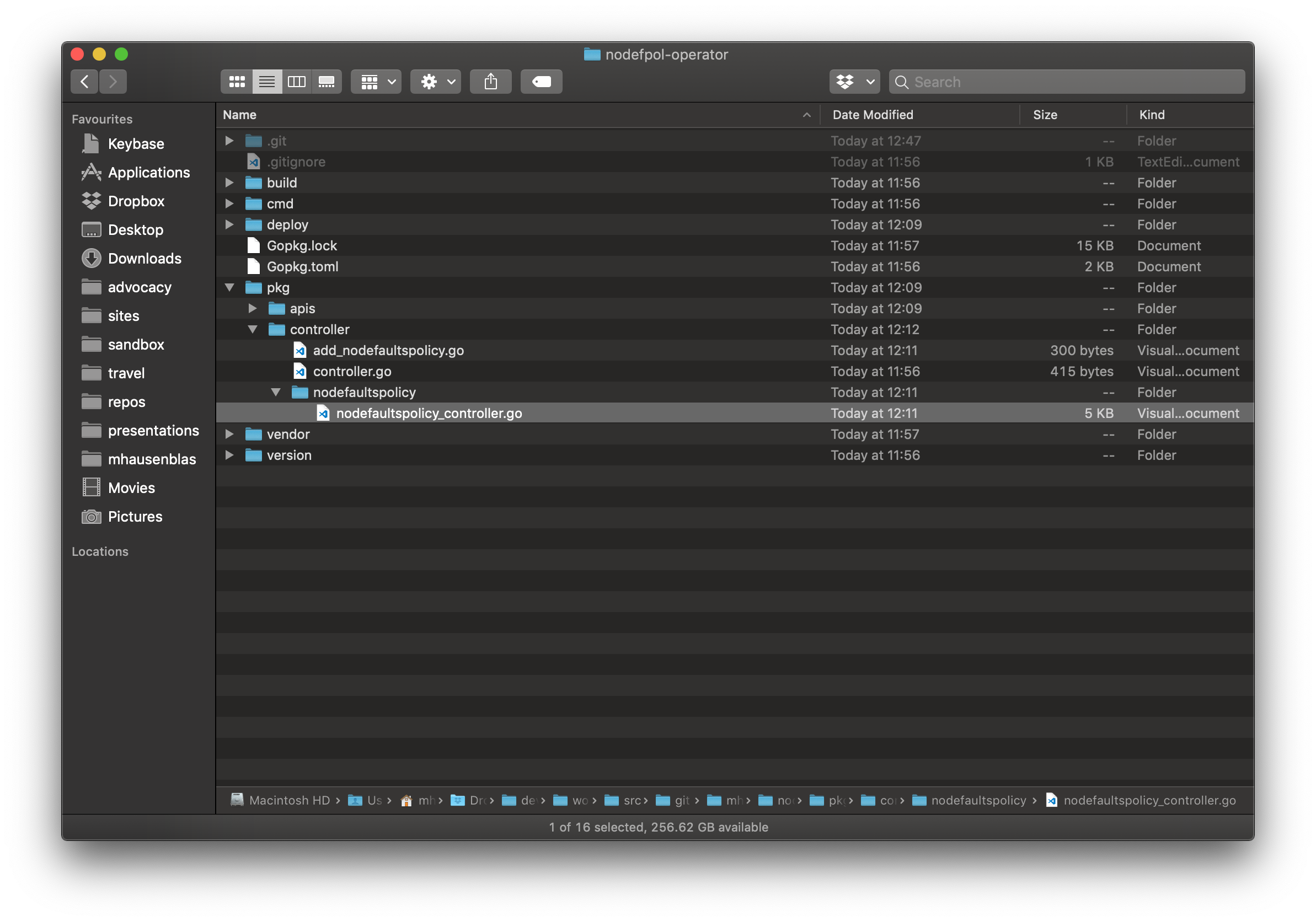

As a result we should see something like this:

See also terminal output of above command.

Local deployment

STEP 4—Install the custom resource definition (CRD) and launch the operator locally:

$ kubectl -n ndp-demo apply -f deploy/crds/nodefpol_v1alpha1_nodefaultspolicy_crd.yaml
$ OPERATOR_NAME=nodefpol-operator operator-sdk up local --namespace "ndp-demo"

As a result we should see something like this:

See also terminal output of above command.

Now it's time to create a NoDefaultsPolicy custom resource. Also, note that the default controller will watch for NoDefaultsPolicy objects for each custom resource we create:

$ kubectl -n ndp-demo apply -f deploy/crds/nodefpol_v1alpha1_nodefaultspolicy_cr.yaml

In-cluster deployment

In order to deploy the operator into the cluster, we first build a container image and push it to a registry, and then create the necessary resources such as a service account, RBAC roles & bindings, the CRD itself, and a custom resource instance, and deploy the operator.

STEP 5—Starting off by building a container image and pushing it to a public registry (note: make sure you're logged into registry, in my case Quay.io, first):

$ operator-sdk build quay.io/mhausenblas/nodefpol
$ docker push quay.io/mhausenblas/nodefpol

Make sure to update the operator manifest to use the built image name (quay.io/mhausenblas/nodefpol in my case):

$ sed -i "" 's|REPLACE_IMAGE|quay.io/mhausenblas/nodefpol|g' deploy/operator.yaml

STEP 6—First, we set up a dedicated service account as well as the respective RBAC roles and bindings:

$ kubectl -n ndp-demo apply -f deploy/service_account.yaml
$ kubectl -n ndp-demo apply -f deploy/role.yaml
$ kubectl -n ndp-demo apply -f deploy/role_binding.yaml

STEP 7—We install the custom resource definition (CRD), if not already done for local deployment:

$ kubectl -n ndp-demo apply -f deploy/crds/nodefpol_v1alpha1_nodefaultspolicy_crd.yaml

STEP 8—Time to deploy the operator:

$ kubectl -n ndp-demo apply -f deploy/operator.yaml

STEP 9—Now we create a NoDefaultsPolicy custom resource, if not already done for local deployment:

$ kubectl -n ndp-demo apply -f deploy/crds/nodefpol_v1alpha1_nodefaultspolicy_cr.yaml

To clean up, getting rid of all the resources including the custom resources and CRD we installed, do:

$ kubectl delete ns ndp-demo

Development

The Operator SDK creates a ton of boot-strapping code and config, however, now your work starts. To start this process, find //TODO(user) annotations in the Go source code and start implementing your custom logic. For example, in my VS Code environment, it looks something like this:

References

To learn more on the topic, check out the following references:

• CLI reference
• User Guide
• Building an operator for Kubernetes with operator-sdk
• A complete guide to Kubernetes Operator SDK
• Make a Kubernetes Operator in 15 minutes with Helm
• Operator Lifecycle Manager
• Building an Kubernetes Operator for Prometheus and Thanos
