Facebook Data in Time and Space project for Ethi

Simple visualization of User Facebook Data using D3.js:

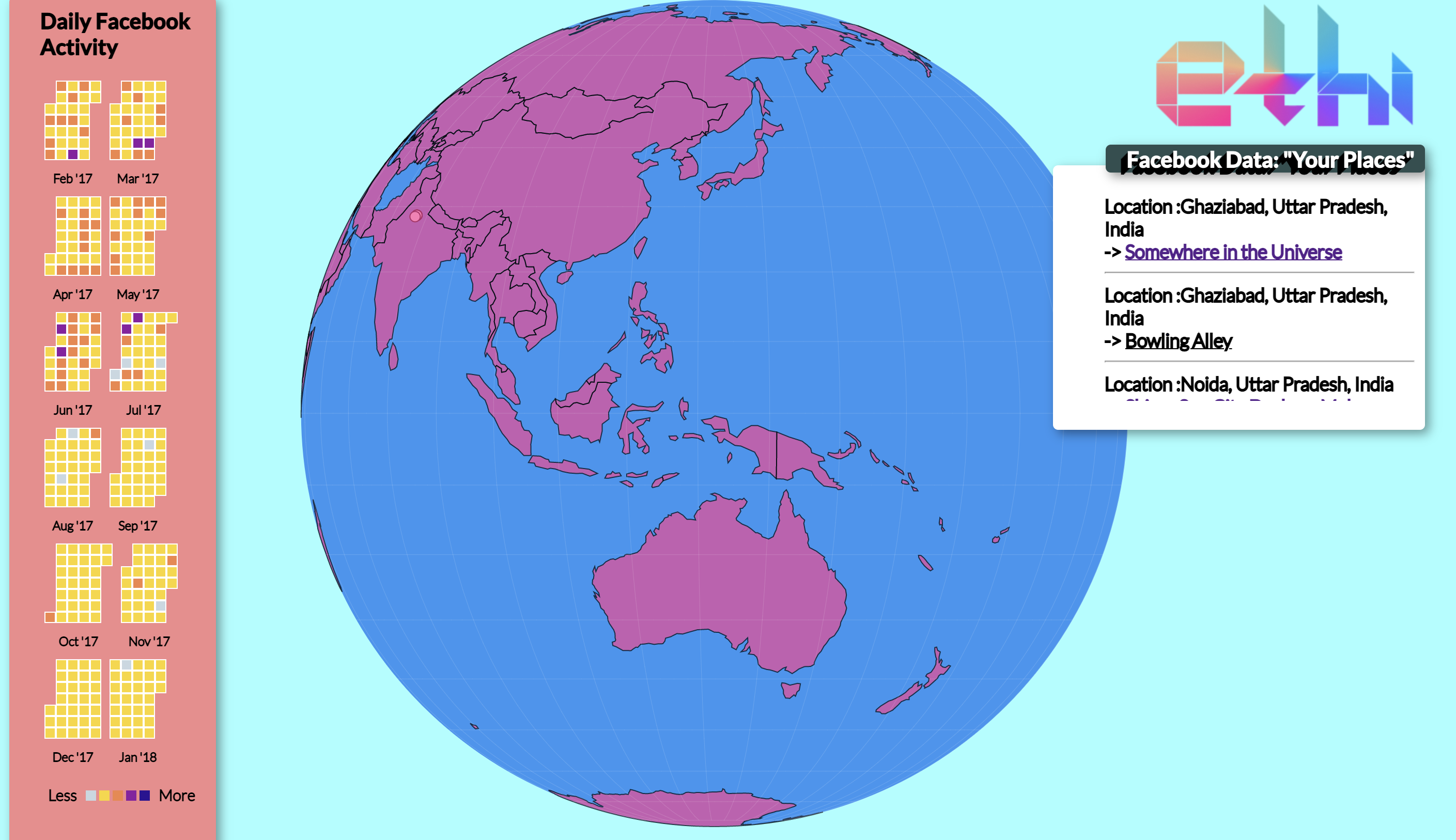

• Rotating globe and heatmap displaying user's "your places" and daily facebook activity

Data displayed :

- User's : Facebook "places"

- Daily interactions on Facebook ( eg: posts, comments, messages )

Visualisation Code and Data Preprocessing code in their respective folder.

Video : https://youtu.be/pCmPKeypuYg

Installation and Dependencies

Dependencies:

• D3.js (v3)
• topojson
• moment.js
• Jquery
• Bootsrap
• Jquery Calendar Heatmap (SeBassTian23/CalendarHeatmap)

Import:

  <script src="https://d3js.org/d3.v3.min.js" charset="utf-8"> </script>
  <script src="https://d3js.org/topojson.v3.min.js"></script>
  <script src="https://cdnjs.cloudflare.com/ajax/libs/jquery/3.4.1/jquery.min.js"></script>
  <script src="https://cdnjs.cloudflare.com/ajax/libs/moment.js/2.24.0/moment.min.js"></script>
  <script src="jquery.CalendarHeatmap.min.js"></script>
  <link rel="stylesheet" type="text/css" href="jquery.CalendarHeatmap.min.css">

Usage

Html will display the visualiation.

For customisation of user data and custom display :

• Download user Facebook data from Facebook Profile. Optionally, you can use the sample dataset provided at explore_fb_data/supporting_files/facebook-sampledataset.zip
• Run Jupiter Notebook file to clean and format folder for use. This will generate updated json files.
• Replace "your_place.json" with your own in the visualisation folder ( if renamed, make sure to correct the path in the code )
• To display other data on the globe such as "used_ip_addresses.json"/"where_you've_logged_in.json" , uncomment corresponding functions and replace file with your own. You will need to comment out the working "your_places" function.

-Dropdown lists for data files and heatmap years available for optional usage:

• uncomment, create a div containing the and place in body

Colours

• Colours customisables in css section.
• For HeatMap Customization refer to @SeBassTian23 repository (SeBassTian23/CalendarHeatmap)
